Buell 2007 LIGHTNING Service Manual

B-6 2007 Buell Lightning: Appendix B
HOME
4. Install internal seal on lip of socket housing, if removed.
Insert tapered end of secondary locking wedge into
socket housing and press down until it snaps in place.
The wedge fits into the center groove within the socket
housing and holds the terminal latches tightly closed.
NOTES
●
While rectangular wedges do not require a special orien-
tation, the conical secondary locking wedge of the 3-pin
connector must be installed with the arrow pointing
toward the external latch. See Figure B-9.
●
If the secondary locking wedge does not slide into the
installed position easily, verify that all terminals are fully
installed in the socket housing. The lock indicates when
terminals are not properly installed by not entering its
fully installed position.
REMOVING/INSTALLING PINS
1. Remove the secondary locking wedge. Use the hooked
end of a stiff piece of mechanics wire a needle nose pli-
ers, or a suitable pick tool (Part No. HD-41475-100). See
Figure B-10.
2. Gently depress terminal latches inside pin housing and
back out pins through holes in wire seal.

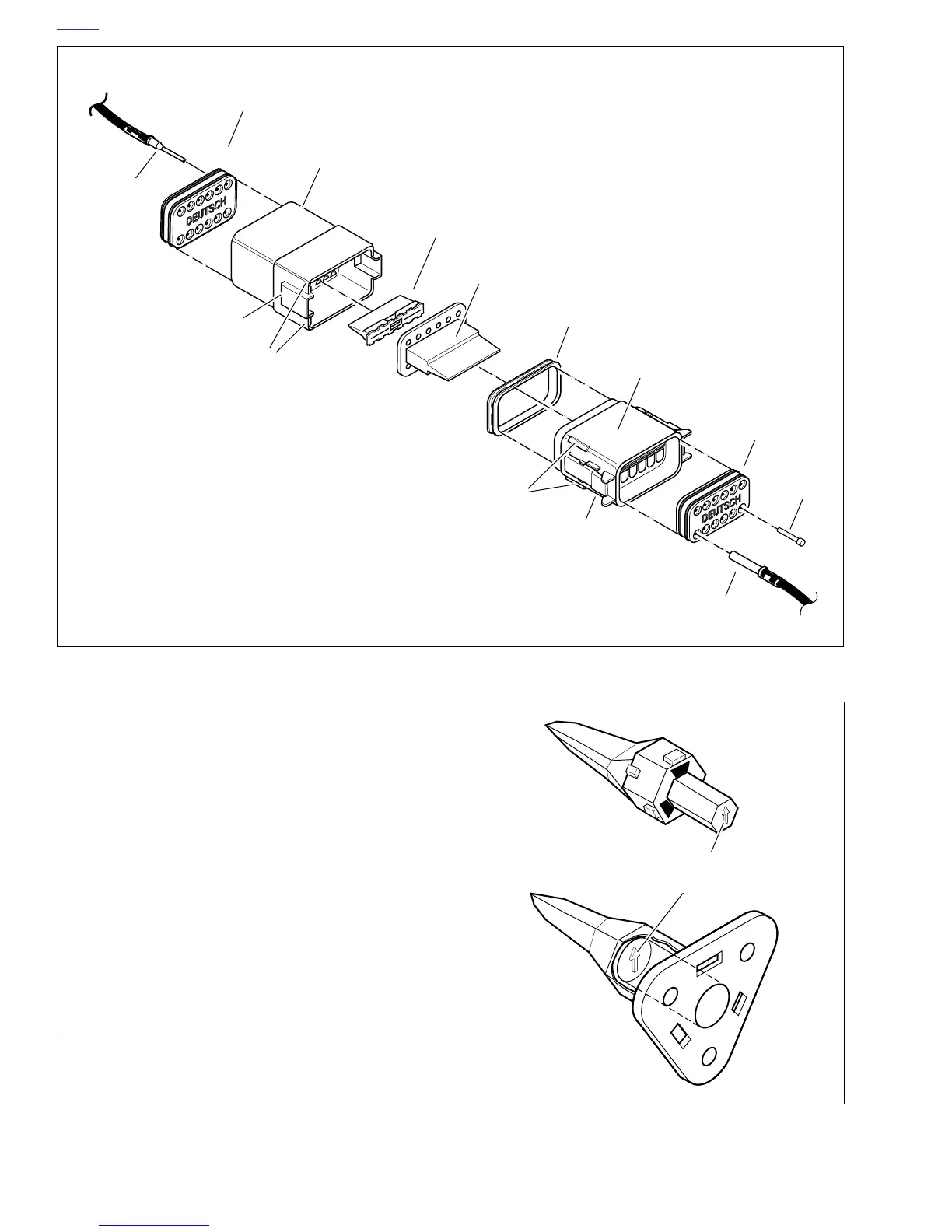

Figure B-8. 12-pin Deutsch Connector (Exploded View)
Wire seal
Pin housing
Locking wedge
Locking wedge
Internal seal
Socket housing
Wire seal
Socket terminal
Seal pin
External latch
Alignment tabs
Alignment grooves
Pin
terminal
Latch cover
d0248x8x
Figure B-9. Depress Terminal Latches/Back Out Pins
Pin
housing
Socket
housing
Arrow points to
external latch
d0249x3x

Buell 2007 LIGHTNING Specifications

General

Year	2007
Manufacturer	Buell
Model	Lightning
Category	Motorcycle
Displacement	1203 cc
Bore x Stroke	88.9 mm x 96.8 mm
Compression Ratio	10.0:1
Fuel System	Electronic fuel injection
Transmission	5-speed
Final Drive	Belt
Rear Suspension	Showa shock absorber
Rear Brakes	Single disc, 1-piston caliper
Engine Type	V-Twin
Ignition	Digital
Front Suspension	Showa inverted fork
Front Brakes	Single disc, 6-piston caliper
Front Tire	120/70 ZR17
Rear Tire	180/55 ZR17
Wheelbase	52.0 inches
Seat Height	30.1 inches
Dry Weight	395 lbs
Fuel Capacity	14.5 liters
