1. See Figure 2-6. Remove five bolts (10) and washers (11)
to detach front brake rotor (12) from wheel hub. Discard
bolts and washers.
2. Remove tire. See 2.9 TIRES.
CLEANING AND INSPECTION
1. Thoroughly clean all parts in solvent.
2. Inspect all parts for damage or excessive wear.
3. Inspect brake rotor and pads.
11WARNING1WARNING
Always replace brake pads in complete sets for correct
and safe brake operation. Improper brake operation
could result in death or serious injury. (00111a)

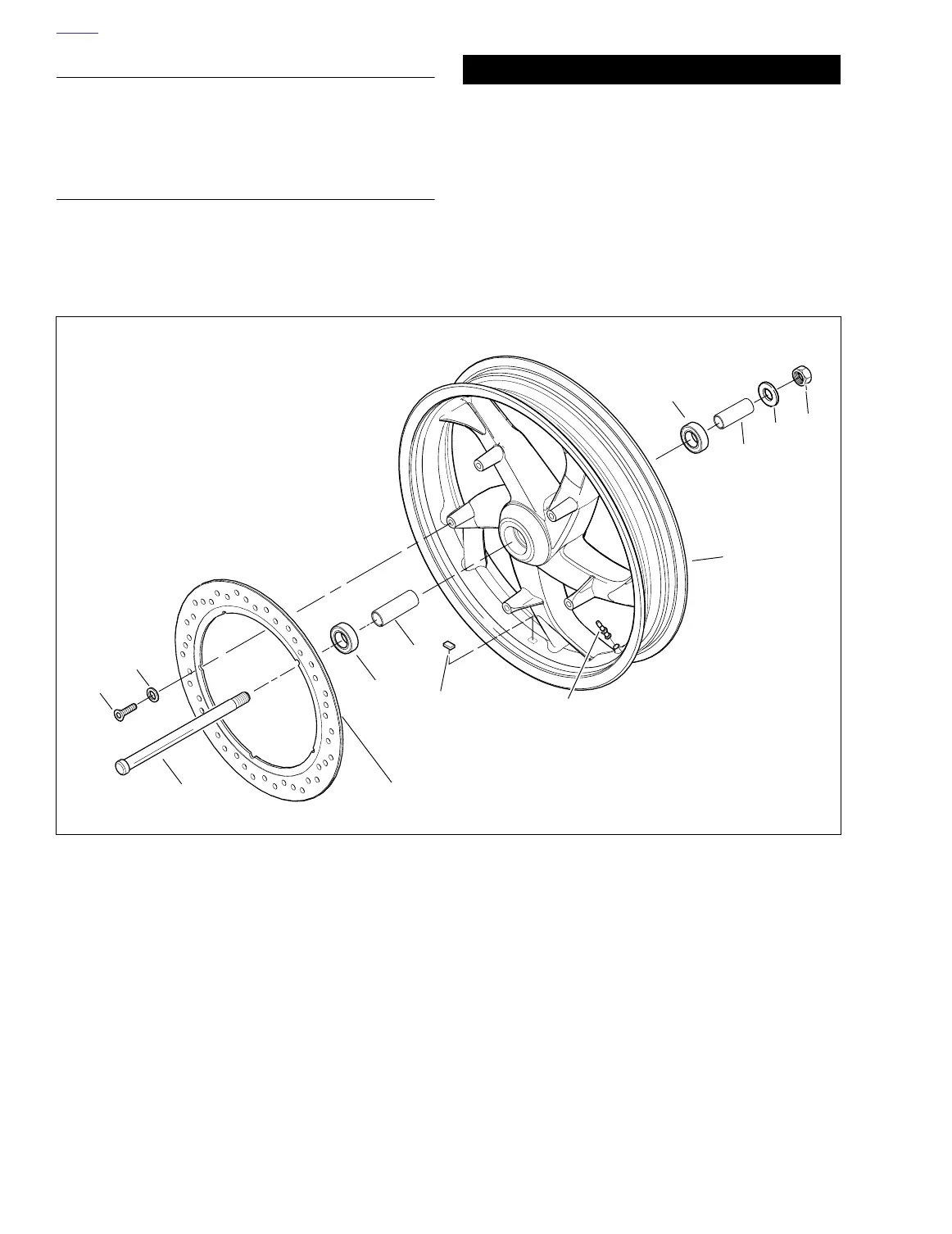

Figure 2-6. Front Wheel Assembly
a0161a2x
1
4
2
9
12
10
3
5
6
8
7
1. Nut (metric)
2. Left axle spacer
3. Wheel bearing
4. Wheel
5. Valve stem
6. Wheel weight
7. Axle spacer, center
8. Wheel bearing
9. Front axle
10. Brake rotor bolt (5)
11. Brake rotor washer (5)
12. Front brake rotor
13. Washer
11
1
13
