2-24 2007 Buell P3: Chassis
HOME
DISASSEMBLY
1. See Figure 2-28. Detach front brake hand lever.
a. Remove nut (1) (metric) from lever pivot.
b. Remove pivot bolt (2) from lever pivot.
2. Detach front brake hand lever (3) from master cylinder
assembly.
3. See Figure 2-29. Remove screw, lock washer and
washer (1) holding front brake switch (3) to master cylin-
der assembly. Remove switch.
4. See Figure 2-30. Compress piston (2) and remove rub-
ber boot (1).
5. Depress piston assembly and remove internal snap ring
(3). Discard snap ring.
6. See Figure 2-31. Remove piston assembly (1-4) from
front master cylinder.

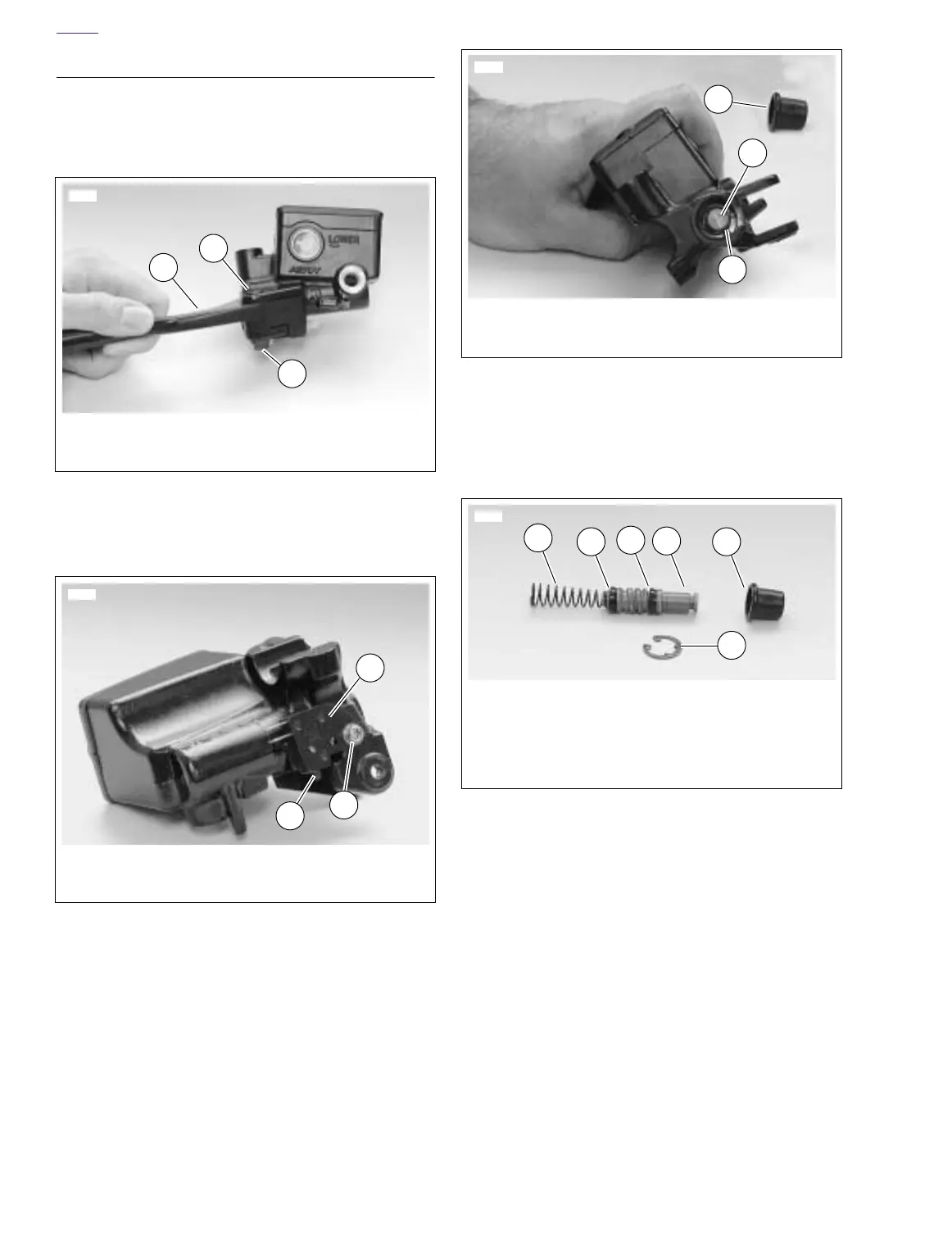

Figure 2-28. Hand Lever
Figure 2-29. Front Brake Switch
6488
2
3
1
1. Nut (metric)
2. Pivot bolt
3. Hand lever
1
2
1. Screw, lockwasher and washer
2. Tang
3. Front brake switch
6489
3
Figure 2-30. Snap Ring
Figure 2-31. Piston Assembly
6490
2
1. Boot
2. Piston
3. Snap ring
3
1
6491
1. Spring
2. Primary cup
3. Secondary cup
4. Piston
5. Boot
6. Snap ring
1
2
3
4
6
5
