1. Remove front forks.
2. See Figure 2-67. Clamp the fork in a vise with front fork
holding tool (Part No. B-41177).
3. See Figure 2-68. Remove slider tube cap.
4. See Figure 2-69. Push down on the spring seat (o-ring
included) and remove the stopper ring and spring seat.
5. See Figure 2-70. Remove the spring collar, lower spring
joint and spring from slider tube.

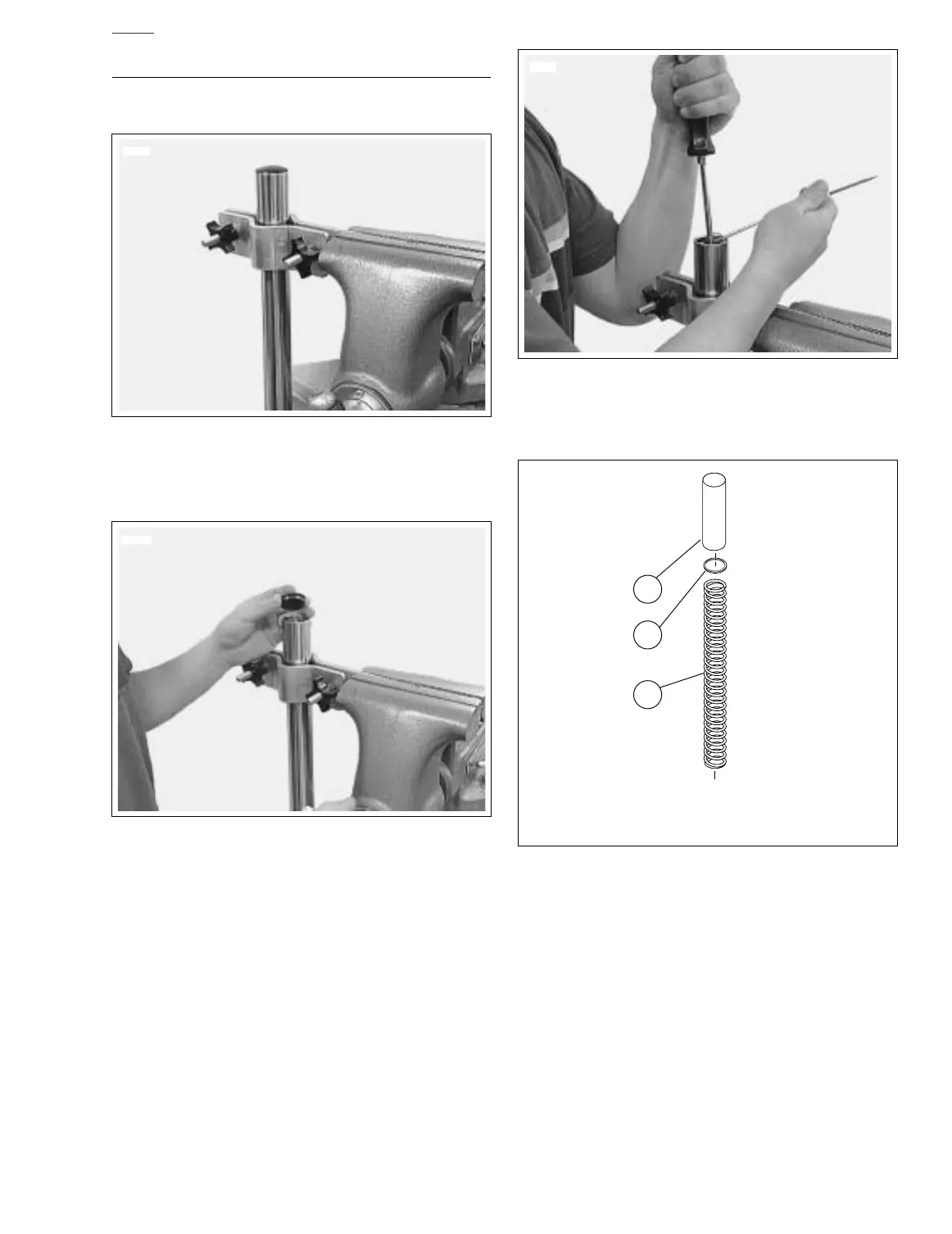

Figure 2-67. Clamping the Fork
Figure 2-68. Slider Tube Cap
3767
3768
Figure 2-69. Spring Seat
Figure 2-70. Removing Sub-Assembly
3769
1. Spring collar
2
. Lower spring joint
3
. Spring
a0006xSx
1
2
3
