2007 Buell P3: Chassis 2-49
HOME
IMPORTANT NOTE
Do not to scratch the slider tube or the slider assembly.
Scratched tubes may leak fork oil and then must be
replaced.
9. See Figure 2-74. Remove the dust seal and the retaining
ring from the slider assembly and the slider tube.
10. See Figure 2-75. Pull the slider tube out of the slider
assembly. Remove oil seal, back-up ring and guide bush-
ing.
11. See Figure 2-76. Remove the slide bushing by prying the
slide bushing at the split.

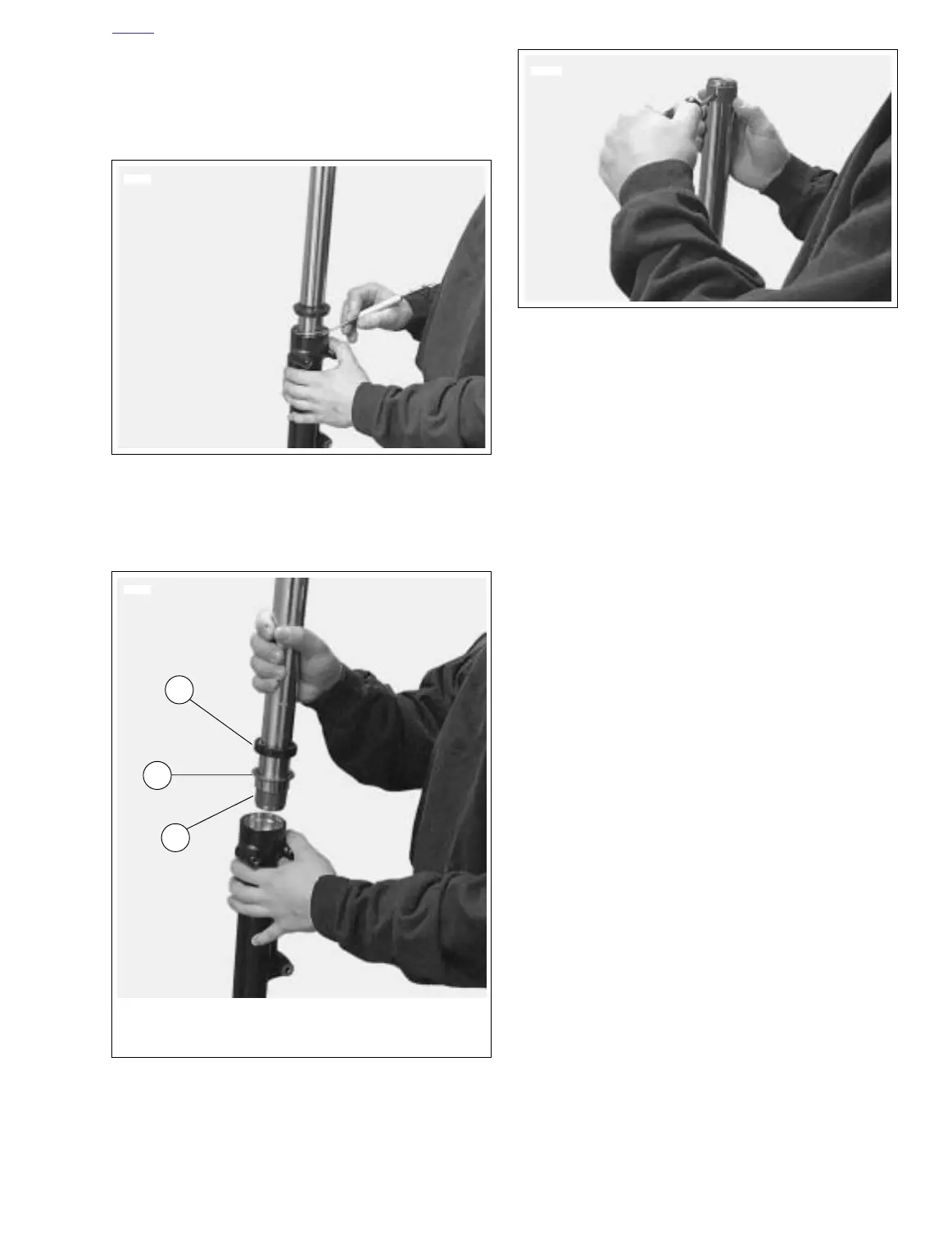

Figure 2-74. Removing Dust Seal
Figure 2-75. Removing Slider Tube
3775
3773
1. Oil seal
2. Back-up ring
3. Guide bushing
3
2
1
Figure 2-76. Removing Slide Bushing
