NOTE
See Figure 3-125. Use SPROCKET SHAFT BEARING
OUTER RACE INSTALLATION TOOL (Part No. HD-39458)
to install left and right outer races of sprocket shaft tapered
roller bearings into left crankcase half. Always install left outer
race prior to installing right outer race because the installer
base is usable only when you follow this sequence of race
installation.
2. Insert “SPORTSTER” end of installer base into inboard
side of left crankcase half bearing bore until base con-
tacts installed retaining ring.
3. Position left outer race over bearing bore on outboard
side of left crankcase half.
4. Insert shaft of installer plug through left outer race and
into installer base. Press race into bore until firmly
seated against retaining ring.
5. See Figure 3-126. Insert “SPORTSTER” end of installer
base into outboard side of left crankcase half bearing
bore until base contacts outboard surface of installed left
outer race.
6. Position right outer race over bearing bore on inboard
side of left crankcase half.
7. See Figure 3-126. Insert shaft of installer plug through
right outer race and into installer base. Press race into
bore until firmly seated against retaining ring.

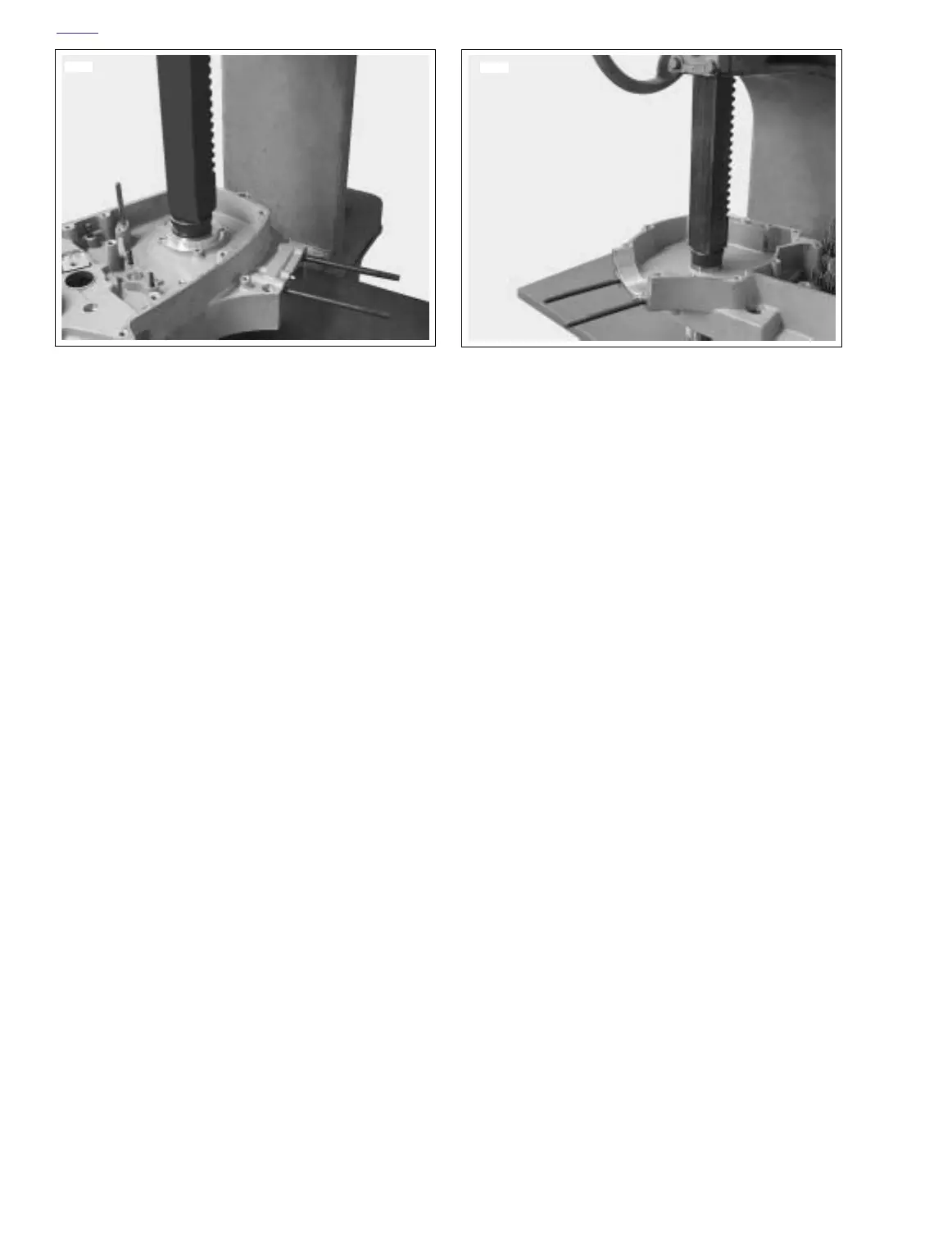

Figure 3-125. Left Outer Bearing Race Installation
7710
Figure 3-126. Right Outer Bearing Race Installation
7711
