FUEL CAP
Removal
1. Locate the fuel filler cap at the top of the fuel tank.
2. Insert finger into depression and lift the locking tab so
that it is perpendicular to the fuel filler cap.
3. Rotate the locking tab 1/4 turn in a counter-clockwise
direction until it clicks.
4. Pull locking tab to remove fuel filler cap from tank.
5. See Figure 4-4. Observe the warning label at the top of
the fuel tank. When refueling, keep fuel level at least one
inch below bottom of fuel cap boot (1).
11WARNING1WARNING
Observe the warning label at the top of the tank. Avoid
spills. Slowly remove filler cap. Do not fill above bottom
of filler neck insert, leaving air space for fuel expansion.
Secure filler cap after refueling. Gasoline is extremely
flammable and highly explosive, which could result in
death or serious injury. (00028a)
Installation
1. See Figure 4-4. Inspect o-ring (2) at underside of fuel
filler cap for cuts, tears or signs of deterioration. Replace
if necessary.
2. Place fuel filler cap into tank with the depression at the
front.
3. Rotate the locking tab 1/4 turn in a clockwise direction.
4. Push locking tab down, so that it is flush with the fuel
filler cap.
NOTE
See Figure 4-4. Locking tab should snap down tightly, but not
so tight that it becomes too difficult to remove. To increase or
decrease the tension required to operate the locking tab, turn
the fuel filler cap over and either loosen or tighten the 10 mm
nut (3).

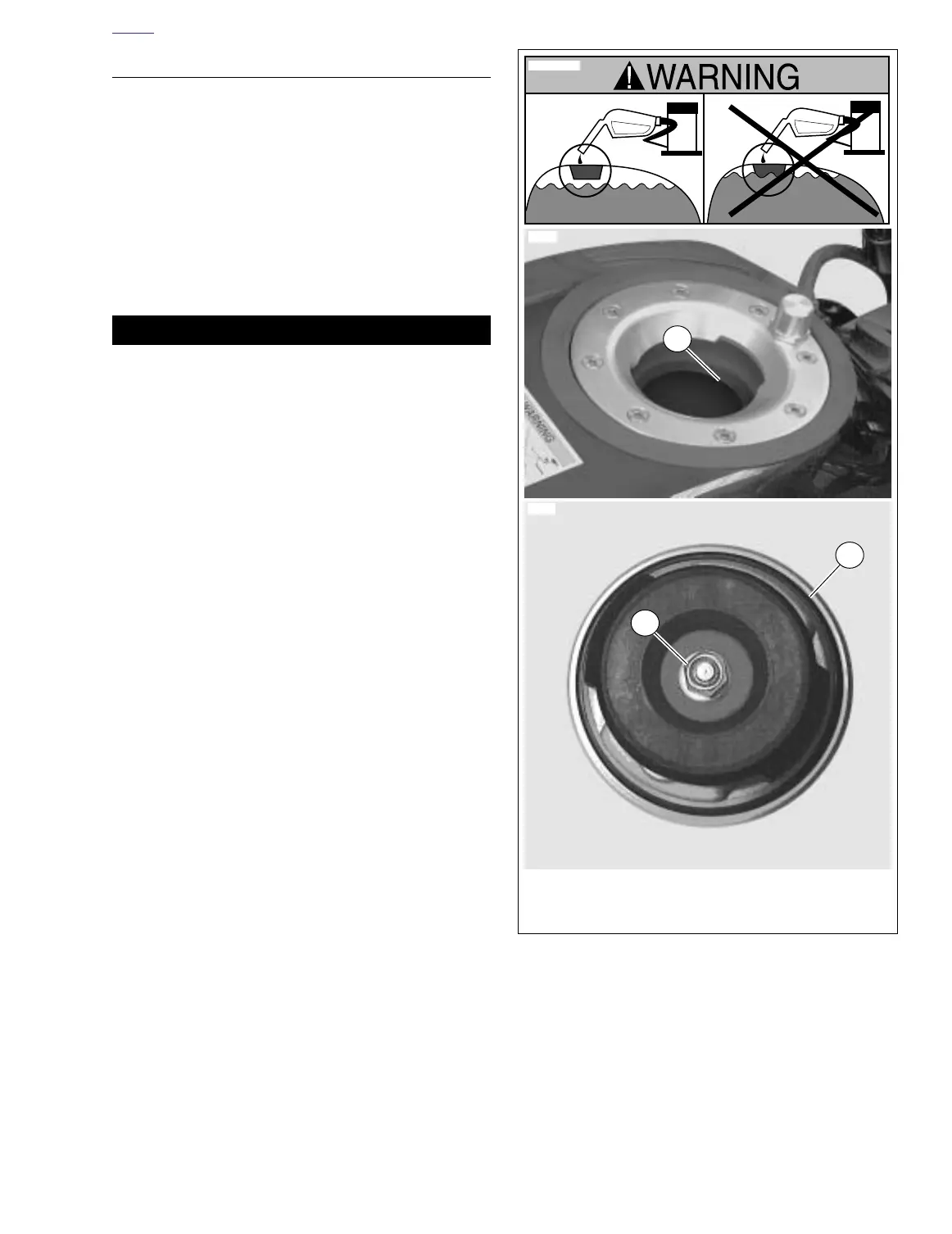

Figure 4-4. Fuel Cap
7731
7727
a1084x4x
1. Bottom of fuel cap boot
2. O-ring
3. Nut
1
2
3
