2007 Buell P3: Fuel System 4-17
HOME
3. See Figure 4-13. Remove float (1) and fuel valve (3).
Carefully slide clip (4) and fuel valve (3) from tab on float
(1). Remove wireform clip (4) from groove in fuel valve
(3).
4. See Figure 4-14. Using slot at top, turn main jet (1) with
flat tip screwdriver to unthread from needle jet holder. If
necessary, hold hex on needle jet holder with a 5/16 inch
wrench to prevent rotation.
5. Using a 5/16 inch wrench, turn hex on needle jet holder
to unthread from main jet bore.
6. See Figure 4-13. Turn carburetor right side up to drop out
needle jet, which is loose in main jet bore.
7. See Figure 4-14. Insert thin bladed flat tip screwdriver
into slow jet bore, and using slot at top of slow jet (2),
unthread to remove.

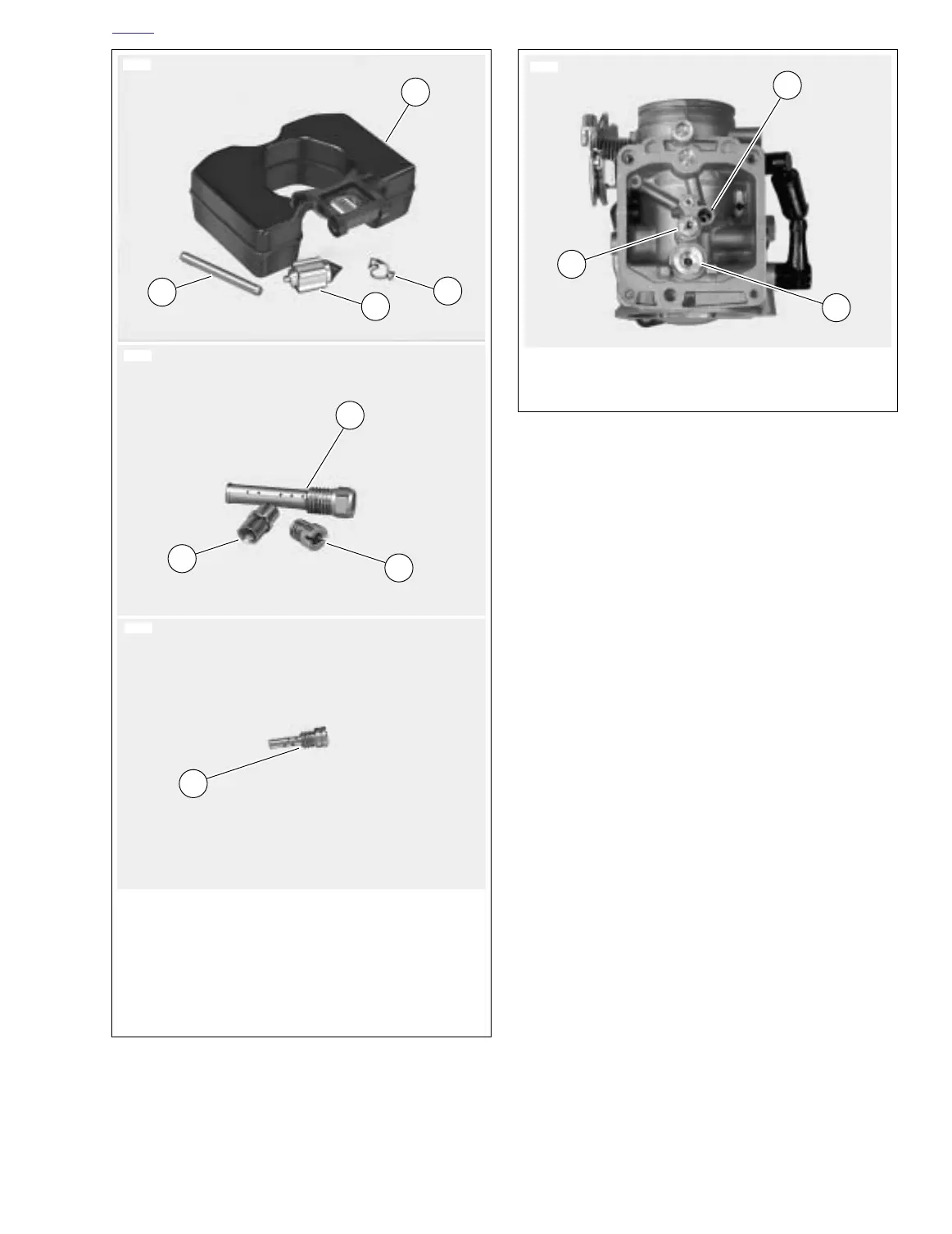

Figure 4-13. Carburetor- Bottom End
1. Float
2. Float pin
3. Fuel valve
4. Wireform clip
5. Needle jet holder
6. Needle jet
7. Main jet
8. Slow jet
7755
7750
7751
1
2
8
7
5
3
4
6
Figure 4-14. Carburetor Housing
1. Main jet
2. Slow jet
3. Fuel valve bore
7763
2
3
1
