7-36 2007 Buell P3: Electrical
HOME

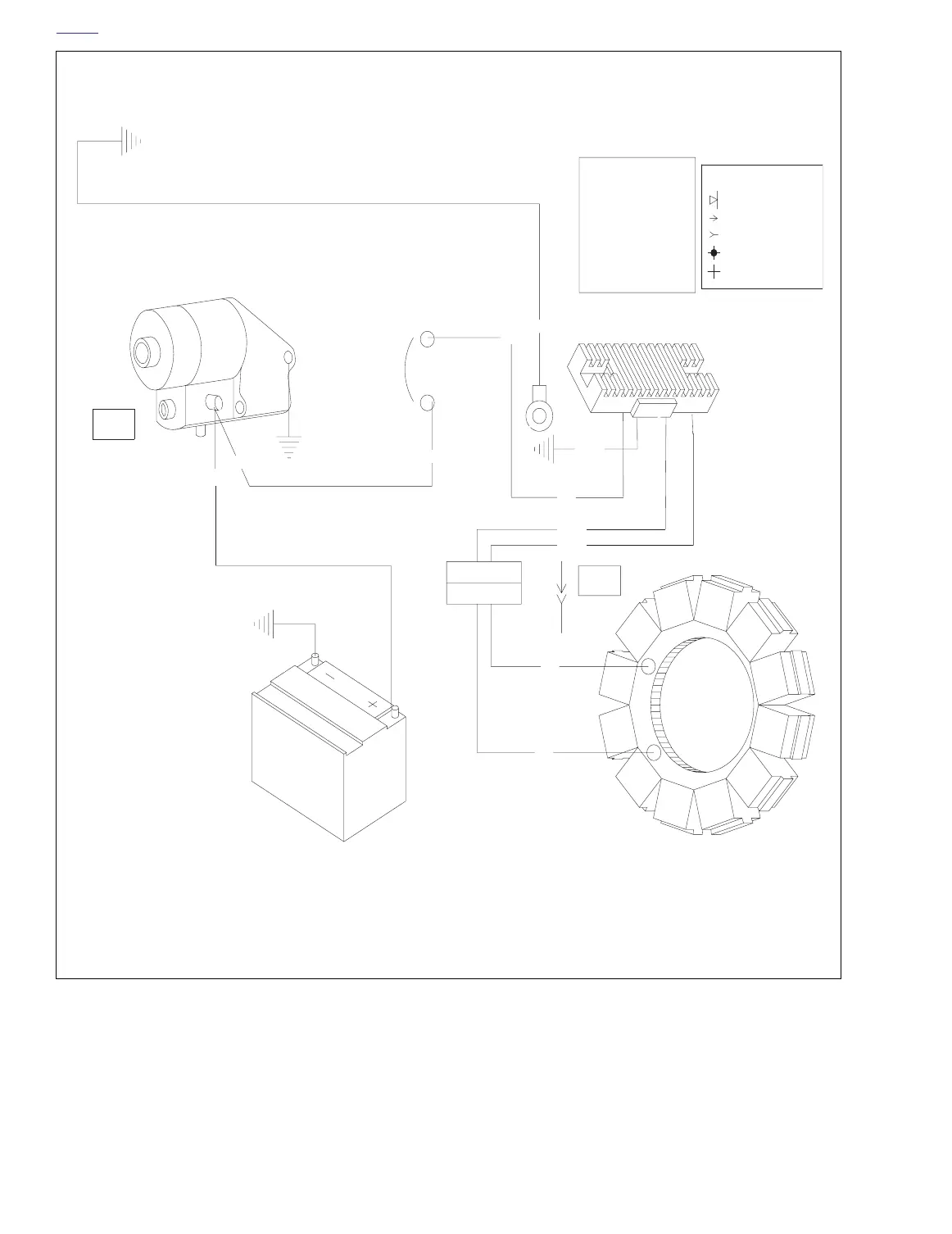

Figure 7-45. Charging System Circuit
R 1
R 1
BK
BK
R
BK 3
BK 3
R
46
30A
128
BK 2
BK
BK
COLOR CODE:
BE BLUE
BK BLACK
BN BROWN
GN GREEN
GY GRAY
O ORANGE
PK PINK
R RED
TN TAN
V VIOLET
W WHITE
Y YELLOW
LT. LIGHT
DIODE
NO CONNECTION
PIN CONNECTOR
SOCKET CONNECTOR
SPLICE CONNECTION
CONNECTOR CODE:
a0278x7x
Voltage
Regulator
StatorBattery
Main
Circuit
Main Chassis
Ground
Starter
Breaker
