1-28 2007 Buell P3: Maintenance
HOME
6. See Figure 1-30. Remove the fork oil by pumping the fork
leg and rod 8-10 times until the rod moves freely.
NOTE
The recommended fork oil is hydraulic fork oil type āEā.
7. Pour 9.2 oz. (272.1 ml) fork oil into fork.
8. Install lower spring joint and spring collar.
9. Coat a new O-ring with fork oil or sealing grease.
10. Install new O-ring onto spring seat.
11. See Figure 1-31. Push down on spring seat past groove
to install stopper ring. Stopper ring will lock into groove
when installed correctly.
12. See Figure 1-32. Install slider tube cap.
13. Install front forks. See 2.17 FRONT FORK.

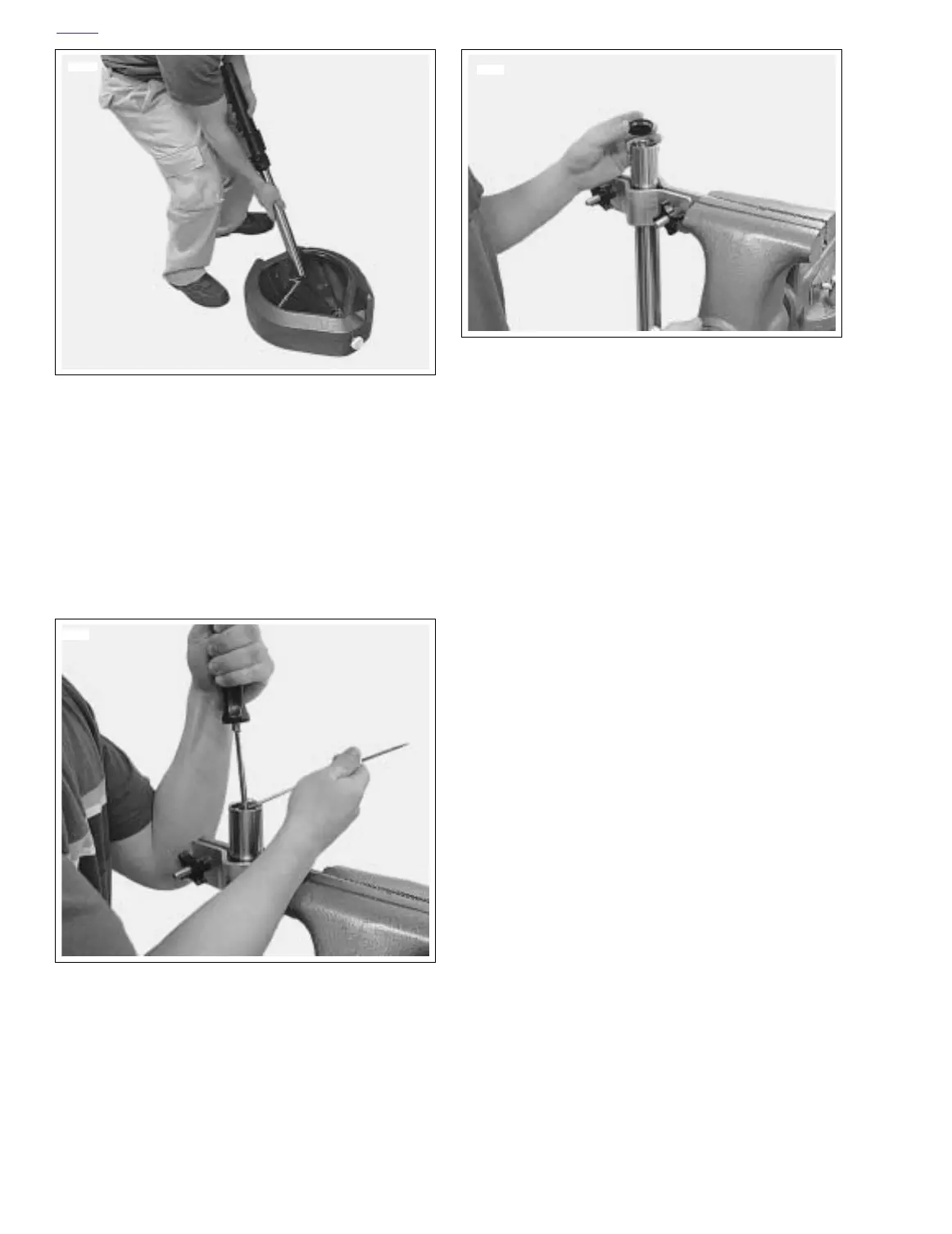

Figure 1-30. Pumping Fork Oil
Figure 1-31. Compressing Spring Seat
3770
3769
Figure 1-32. Slider Tube Cap
3768
