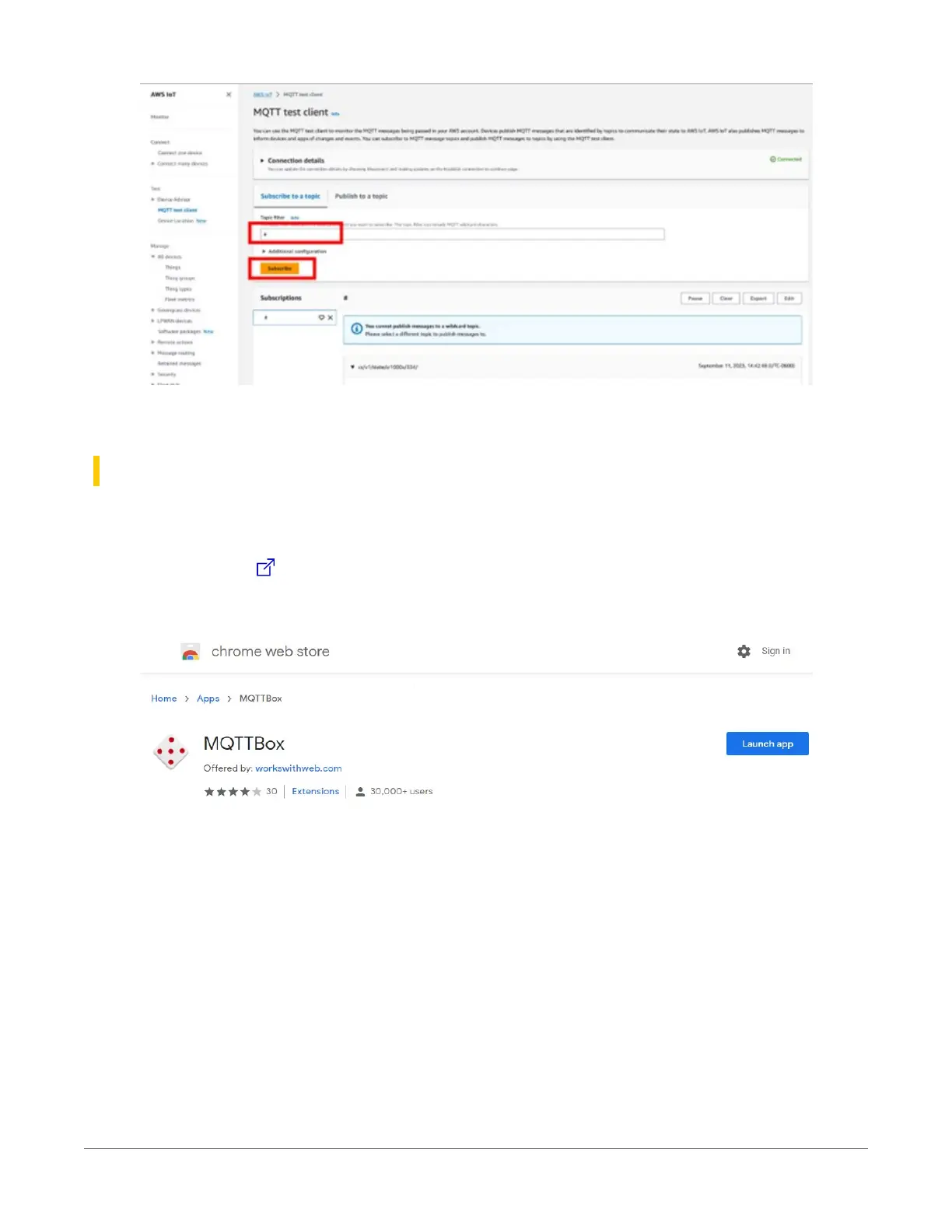

3. Confirm data is being received in the Subscription area at the bottom of the screen.

19.4.2 Check broker for incoming data

To subscribe to MQTT topics an MQTT client is required. There are many available; it is

recommended that you consult with an ITprofessional. This example uses the Google Chrome

extension MQTTBox .

1. Launch MQTTBox.

19. Communications protocols133

Default Chapter3
- Table of Contents3
