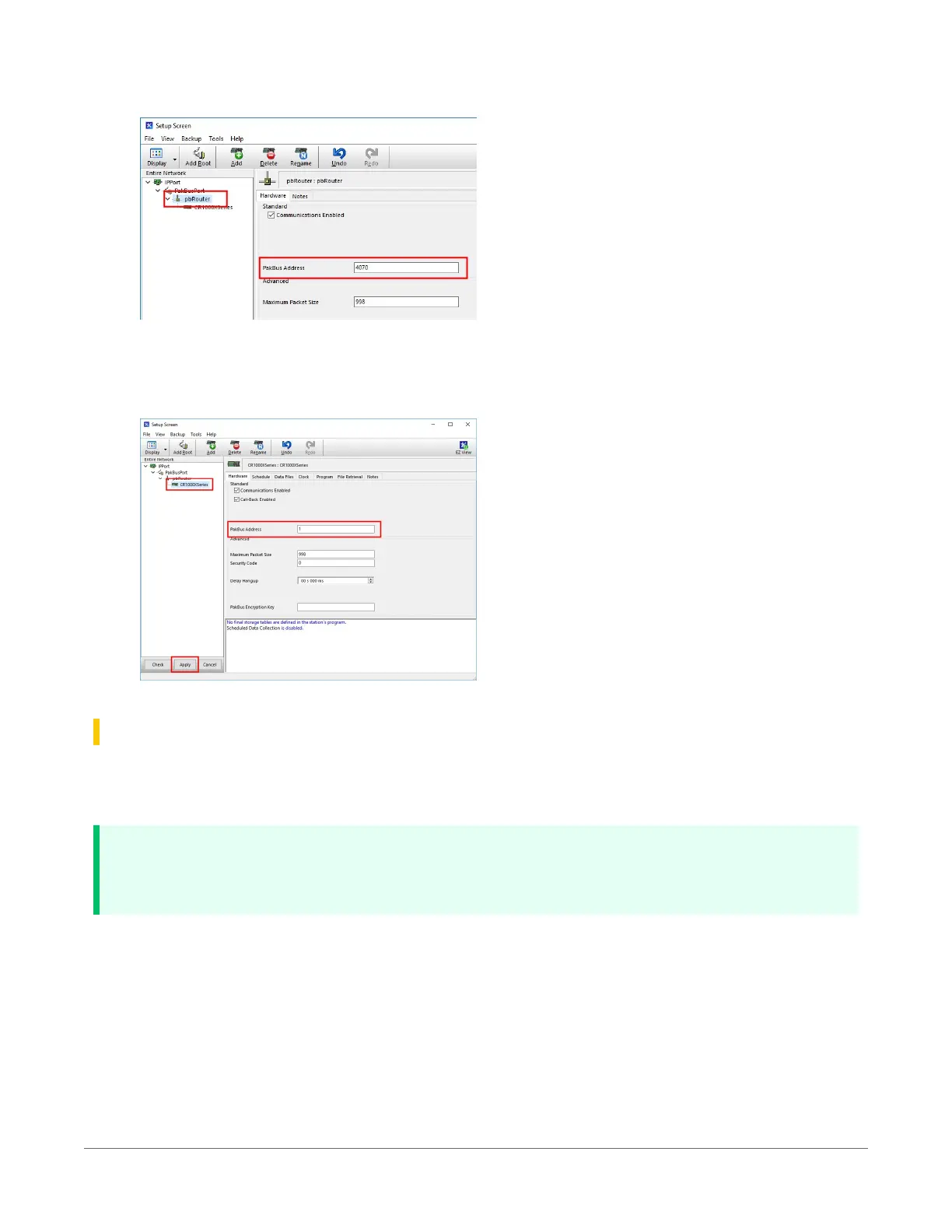

6. Select the pbRouter in the Network Map and set the PakBus Address to 4070.
7. Select the data logger in the Network Map and set the PakBus Address to match that of the
data logger (default address in the data logger is 1). If a PakBus Encryption Key was entered
during data logger setup, also enter it here. Click Apply to save the changes.
12.2.1.3 Test the connection
Use the Connect screen to test the connection. Click on the appropriate station and click Connect
to initiate a call to the data logger. The data logger must have 12 V power.
TIP:
The connection time is subject to many external factors. It is often less than 30 seconds but
could be up to 15 minutes. Be patient.
12. Cellular communications option45
