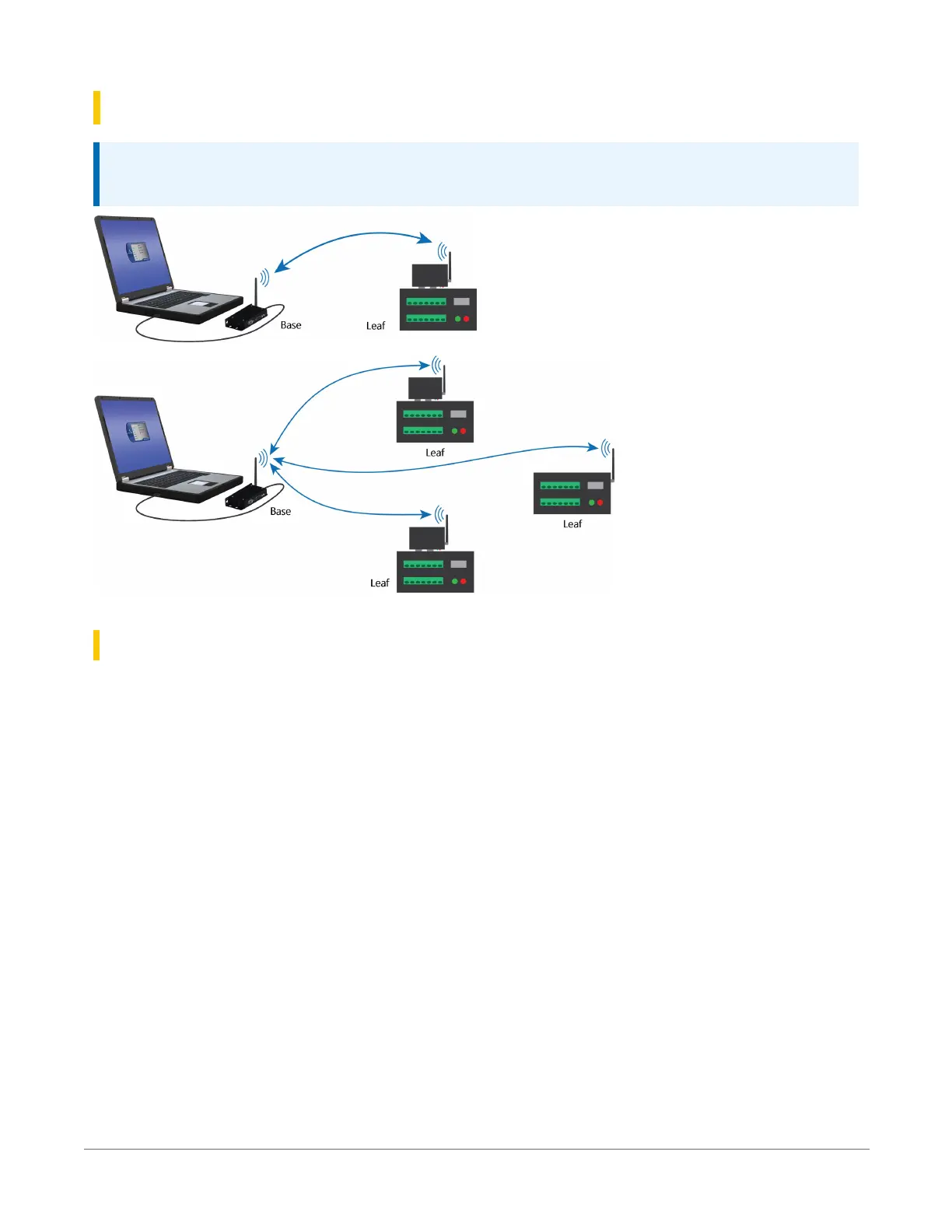

13.2 Basic RF407 networks

NOTE:

This procedure assumes the RF407-series devices are using factory default settings.

13.2.1 Configure the base RF407-series radio

Configure the RF407-series radio that is connected to the computer. This is sometimes referred

to as the base radio.
