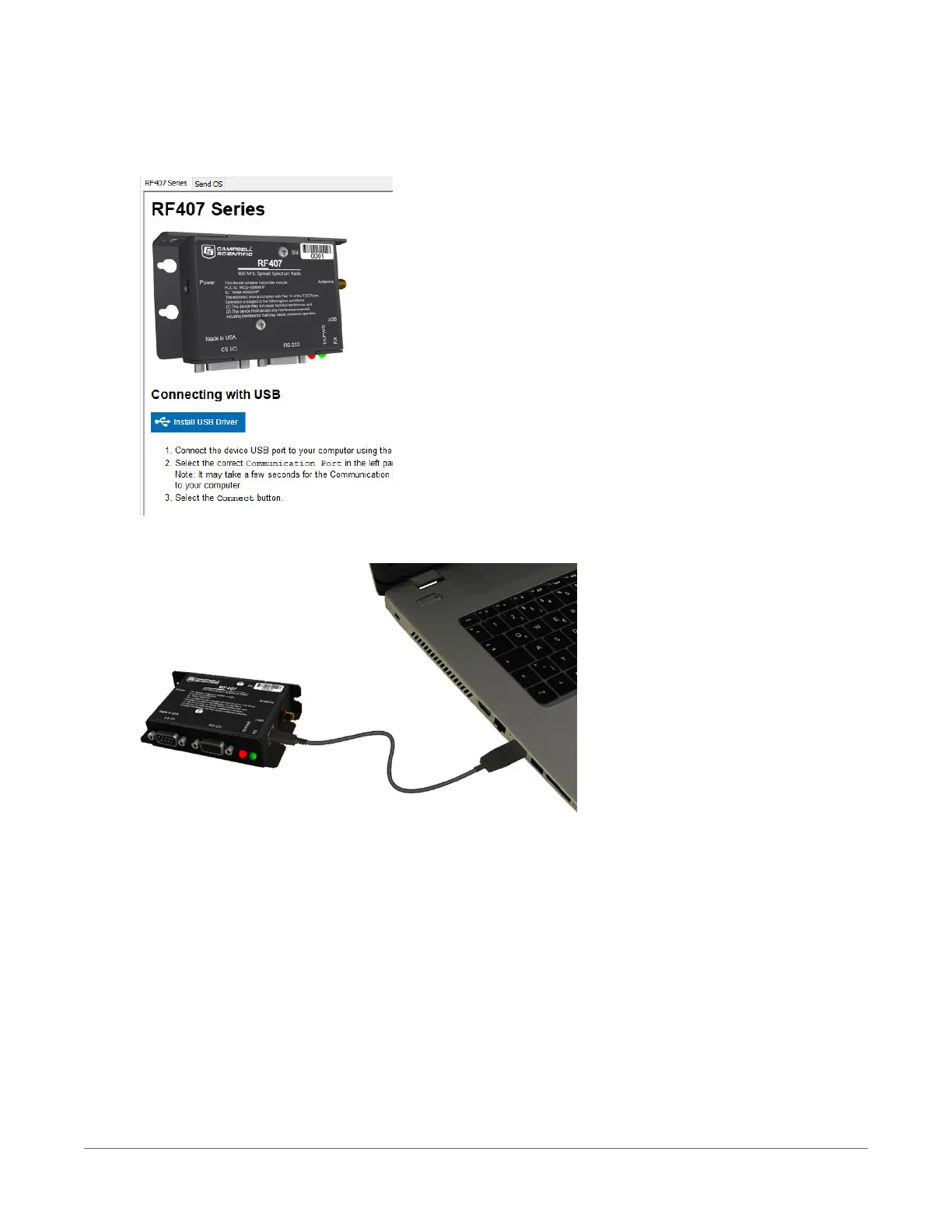

1. Ensure that an antenna is connected to the RF407-series radio.

2. If connecting via USB for the first time, you must first install USBdrivers using Device

Configuration Utility (select your radio, then on the main page, click Install USBDriver).

3. Connect the USB port on your RF407-series radio to your computer.

4. Using Device Configuration Utility, select the Communication Port used for your radio and

connect to the RF407-series radio.

13. Radio communications option55

Default Chapter3
- Table of Contents3
