Transparent mode may need to wait for commands issued by the programmed mode to finish
before sending responses. While in transparent mode, the data logger programs may not
execute. Data logger security may need to be unlocked before transparent mode can be
activated.
Transparent mode is entered while the computer is communicating with the data logger through
a terminal emulator program such as through Device Configuration Utility or other data logger
support software. Keyboard displays cannot be used. For how-to instructions for communicating
directly with an SDI-12 sensor using a terminal emulator, watch this
video:https://www.campbellsci.com/videos/sdi12-sensors-transparent-mode .

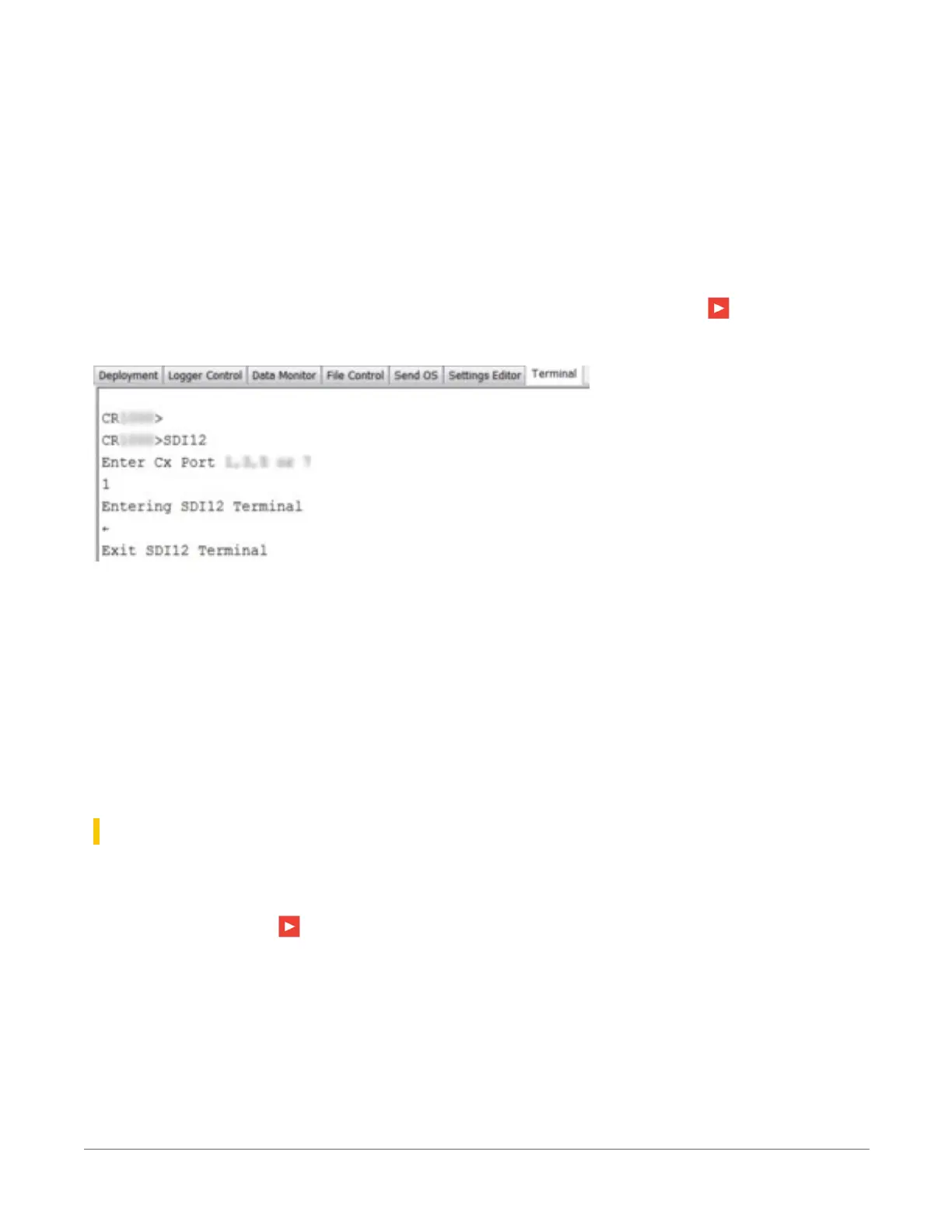

To enter the SDI-12 transparent mode, enter the data logger support software terminal emulator:
1. Press Enter until the data logger responds with the prompt CR300 series>.
2. Type SDI12 at the prompt and press Enter.
3. In response, the query Select SDI12 Port is presented with a list of available ports.
Enter the port number assigned to the terminal to which the SDI-12 sensor is connected,
and press Enter. For example, 1 is entered for terminal C1.
4. An Entering SDI12 Terminal response indicates that SDI-12 transparent mode is
active and ready to transmit SDI-12 commands and display responses.
19.7.1.1 Watch command (sniffer mode)
The terminal-mode utility allows monitoring of SDI-12 traffic by using the watch command
(sniffer mode). Watch an instructional video:https://www.campbellsci.com/videos/sdi12-sensors-
watch-or-sniffer-mode or use the following instructions.
1. Enter the transparent mode as described previously.
2. Press Enter until a CR300 series> prompt appears.
3. Type W and then press Enter.
19. Communications protocols138
