Canon imagePROGRAF iPF5100 - Removing the Roll Feed Unit

Handling rolls
Removing the Roll Feed Unit
Important
• Always make sure the printer is of f before removing the Roll Feed Unit .
1. Remove any rolls in the Roll Feed Unit . ( → P .122)

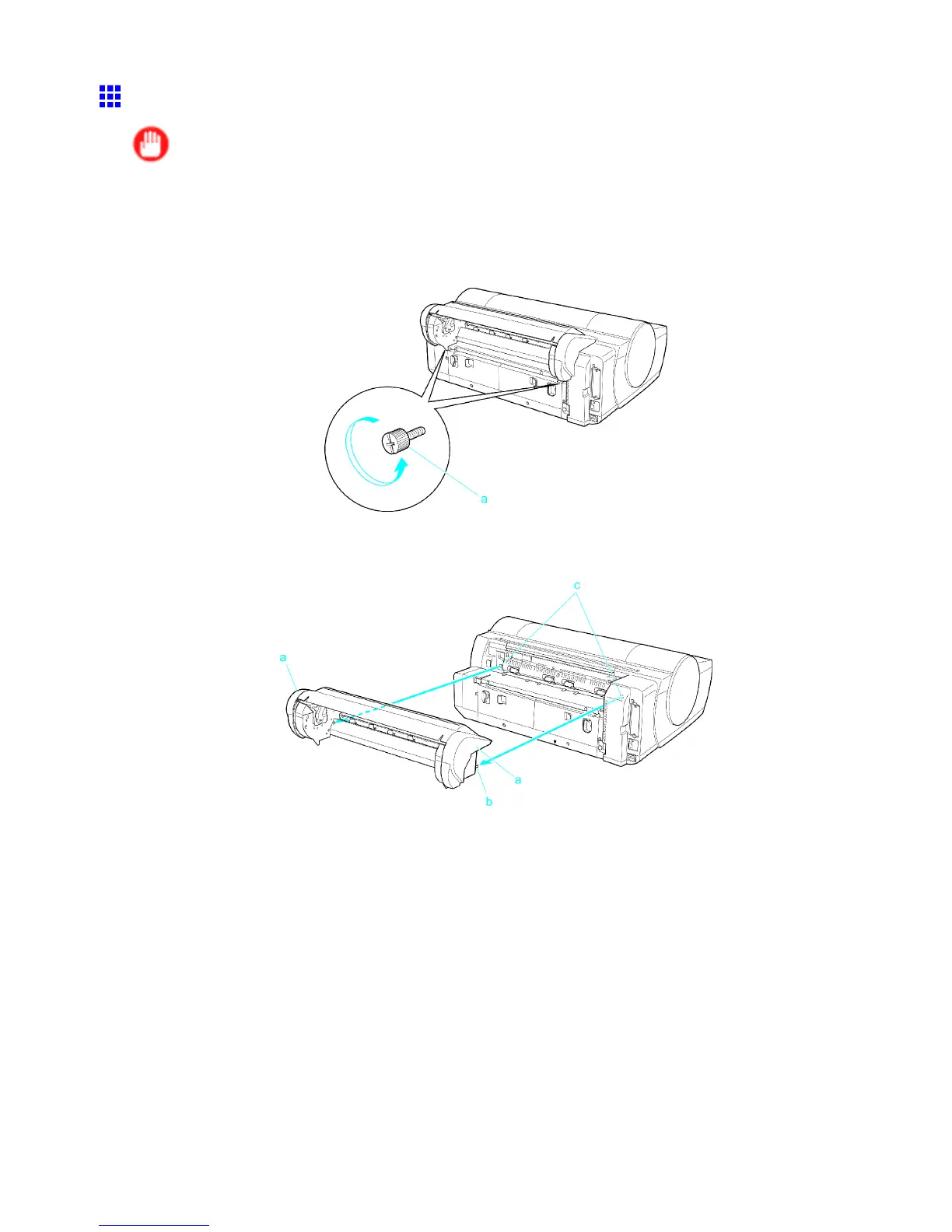

2. Use a coin to loosen the screws on both sides of the back of the Roll Feed Unit (a) and remove
the unit from the printer .
3. Hold the Roll Feed Unit by the Carrying handles (a) as you remove the Roll Feed Unit from
the printer .
Handling Paper 147
