Control Panel

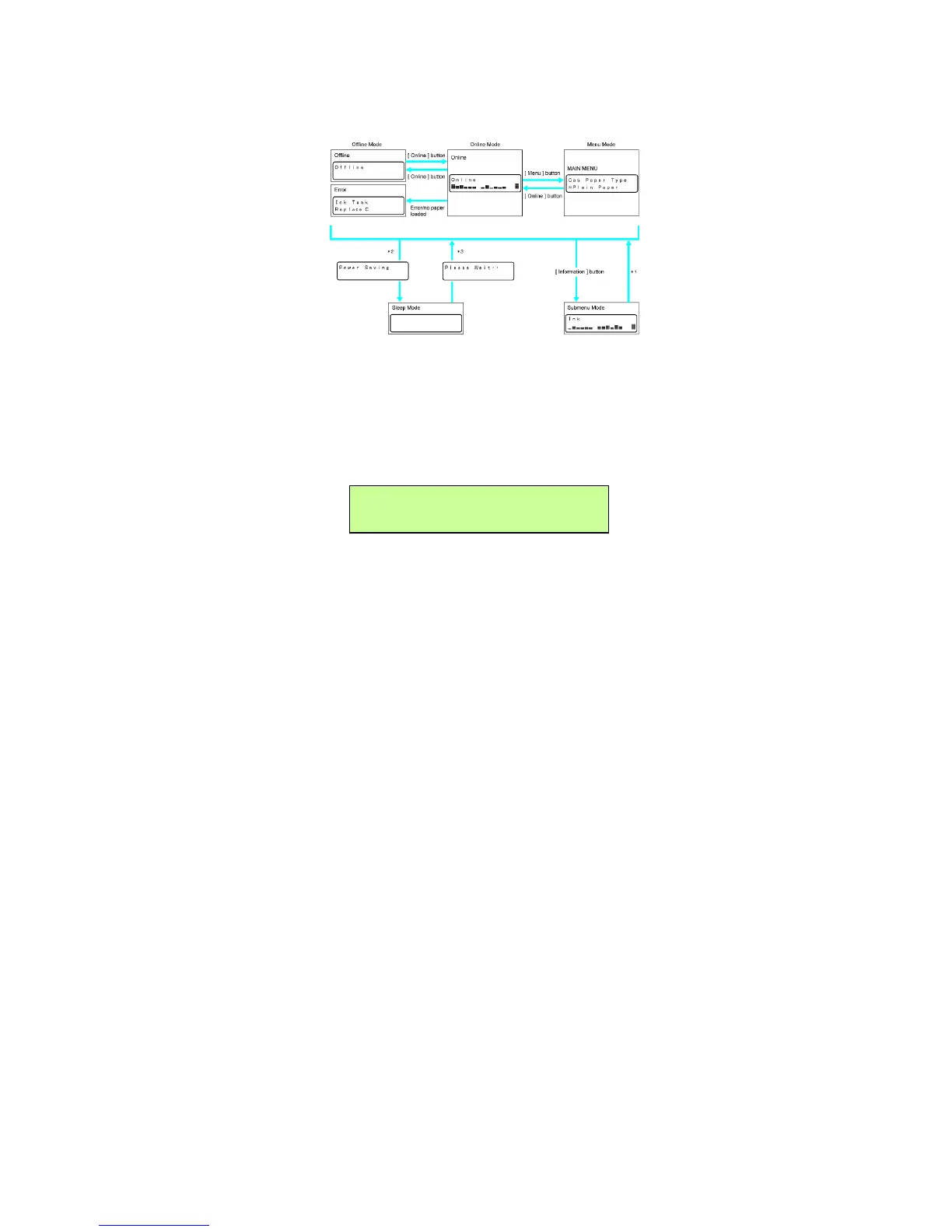

Mode transition
The printer mode transitions are as follows:
*1: When submenus are displayed, you can press any button other than the Information button to return
to the previous mode.
*2: In Sleep mode, you can press any button to bring the printer online again.
*3: The printer automatically enters Sleep mode if it is idle for a specic period (by factory default, ve
minutes), that is, if no print jobs are received or buttons are pressed while all covers are closed.
Online, and state of the Control Panel
Online ISO A2
█ █ █ █ █ █ █ █ █ █ █ █ █
• T op Line of the Display Screen
The printer status is displayed at left. At right, the size of paper loaded in the Cassette is displayed.
( → P .170)
• Bottom Line of the Display Screen
The remaining ink level is displayed at left and the Maintenance Cartridge capacity at right.
However , any warning messages are displayed here instead. In this case, take the appropriate action.
( → P .731)
• Online lamp (→P .16)
Lit when the printer is online.
• Data lamp (→P .16)
Flashes when print jobs are being received or processed.
• Message lamp (→P .16)
Lit when warning messages are displayed.
24 Printer Parts
To Next Page
