Printer Parts
Printer parts

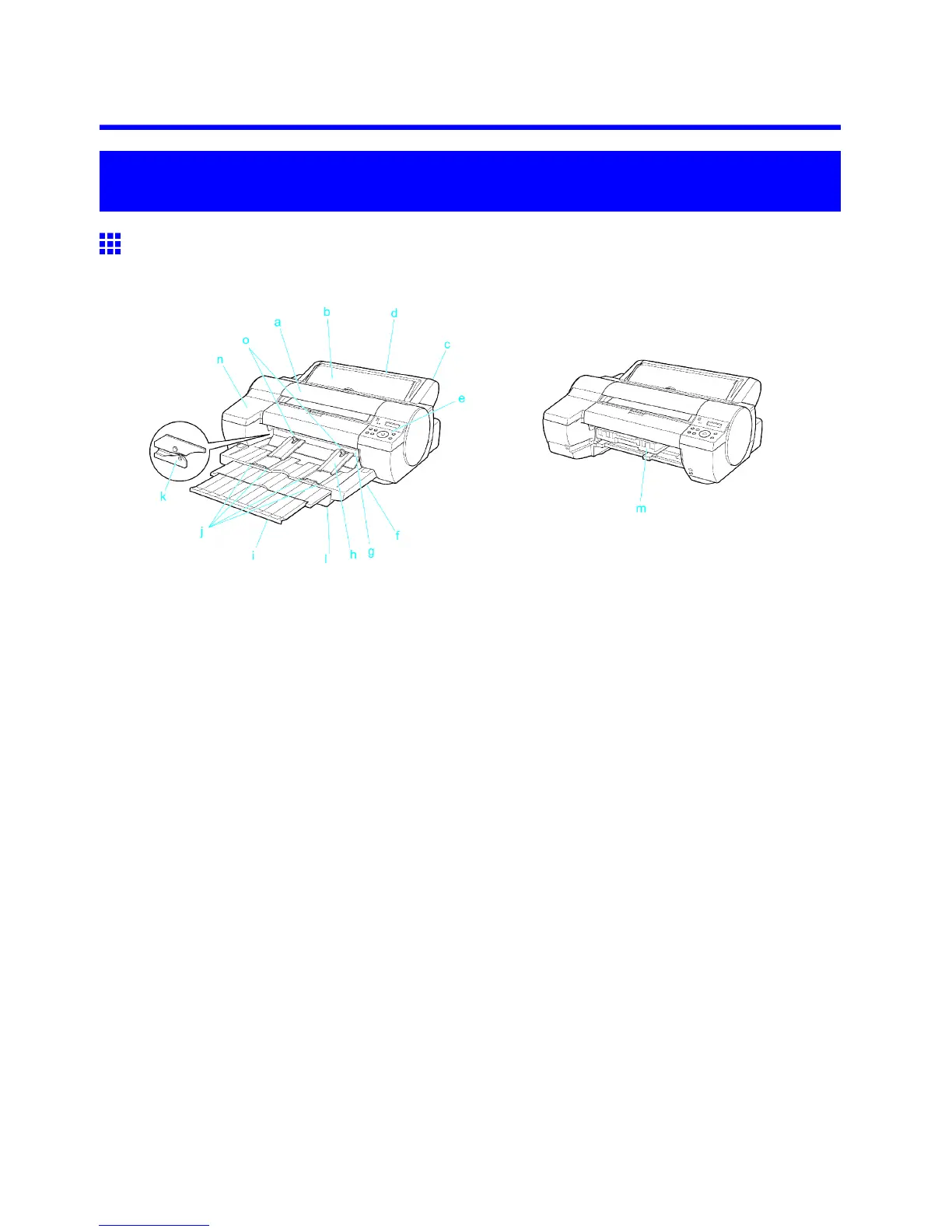

Front
Standard
When the Cassette and Output T ray are removed
*1: When the Cassette and Output T ray are removed
a. T op Cover
Open this cover to install the Printhead and remove any jammed paper from inside the printer , as
needed. ( → P .1 1)
b. Paper T ray Cover
Open this cover to load sheets in the T op Paper Feed Slot . ( → P .12)
c. Roll Feed Unit
Load rolls in this unit. Y ou can also load sheets in this unit manually .
d. Roll Paper Unit Cover
Open this cover to load rolls. ( → P .13)
e. Control Panel
Use this panel to operate the printer and check the printer status. ( → P .16)
f. Output T ray
Printed documents are ejected into the output tray .
g. Output T ray ( Front Paper Feed Slot )
All printed documents are ejected from this slot. When loading heavyweight paper , insert it here. ( → P .12)
h. V ertical Paper Guides
When printing on rolls, lift the guides and support ejected documents to prevent paper jams. Lifting the
guides when printing from the Front Paper Feed Slot will automatically raise the Front T ray Guides ,
making it easier to load paper in the Front Paper Feed Slot .
8 Printer Parts
