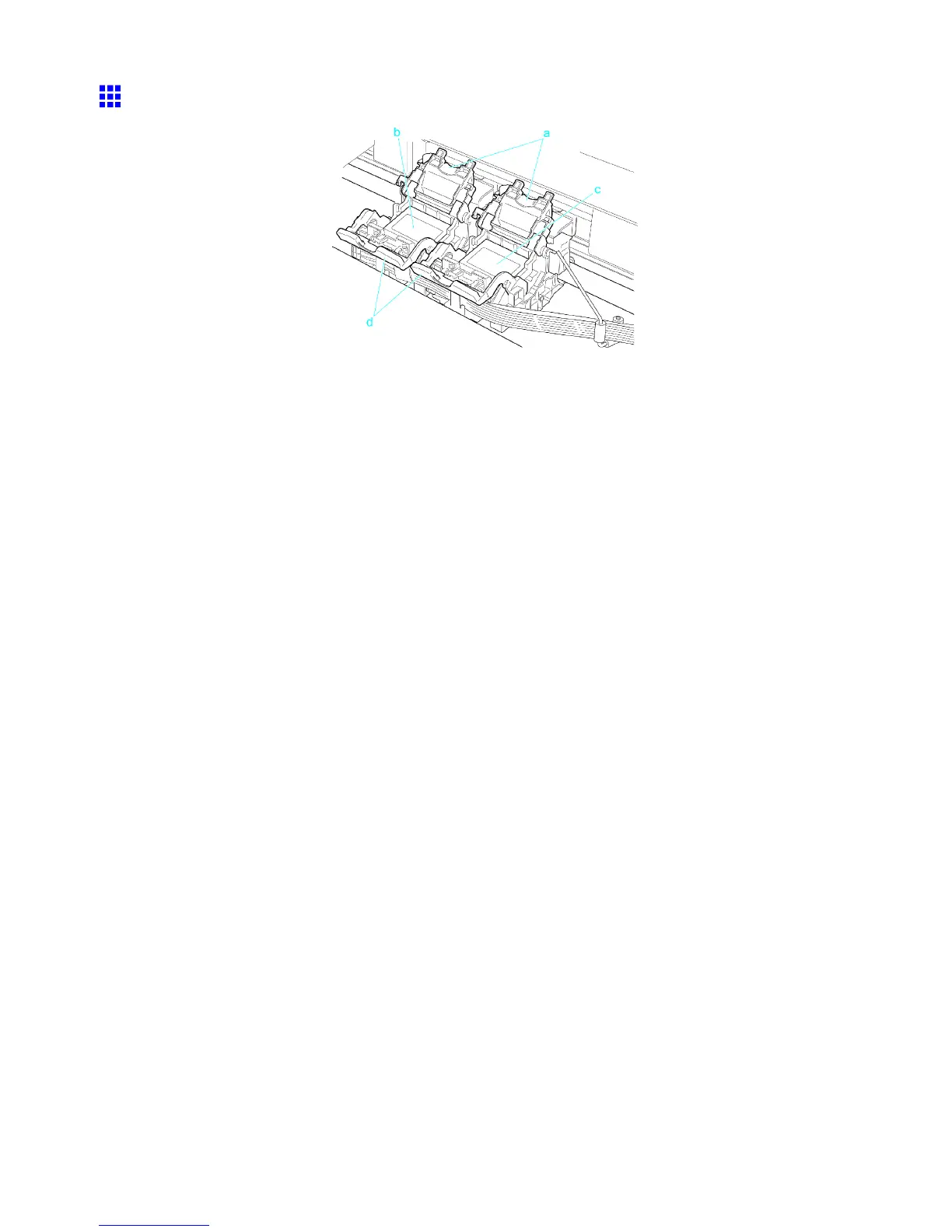

Carriage
a. Printhead Fixer Cover
Holds the Printhead in place.
b. Printhead L
The printhead is equipped with ink nozzles. It serves a key role in printing.
c. Printhead R
The printhead is equipped with ink nozzles. It serves a key role in printing.
d. Printhead Fixer Lever
Locks the Printhead Fixer Cover .
