Printer parts

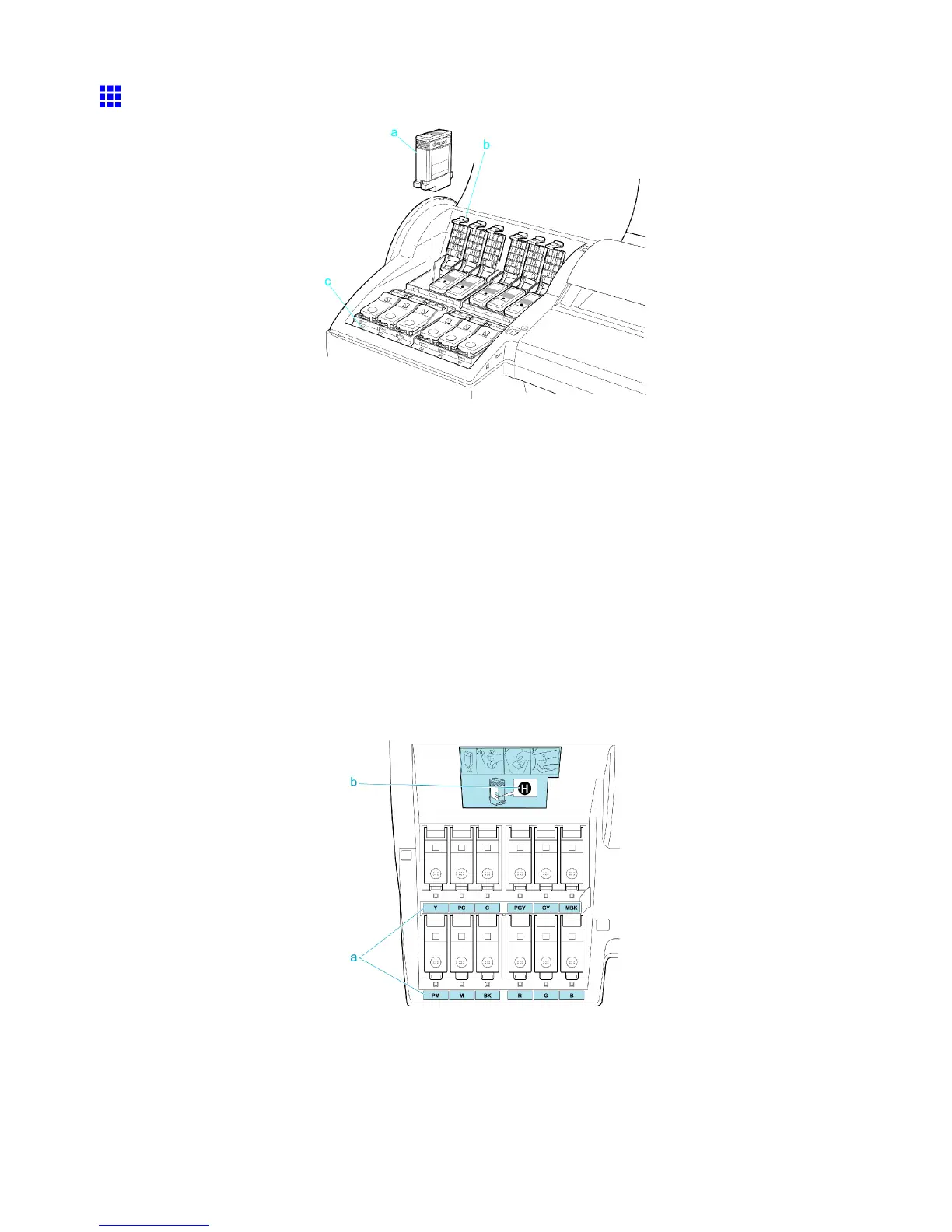

Ink T ank Cover (Inside)
a. Ink T ank
Cartridges of ink in various colors.
b. Ink T ank Lock Lever
A lever that locks the Ink T ank in place and protects it. Lift and press down the lever when replacing
an Ink T ank .
c. Ink Lamp (Red)
Indicates the state of the Ink T ank as follows when the Ink T ank Cover is opened.
• On
The Ink T ank is installed correctly .
• Of f
No Ink T ank is installed, or the ink level detection function is disabled.
• Flashing Slowly
Not much ink is left.
• Flashing Rapidly
There is no more ink.
a. Ink Color Label
Load an Ink T ank corresponding to the color and name on these labels.
b. Ink Set
An Ink T ank that can be used in the printer (→P .641) is labeled with a white letter “H” in a black circle
on the side. When purchasing an Ink T ank , make sure an “H” is printed on the label.
