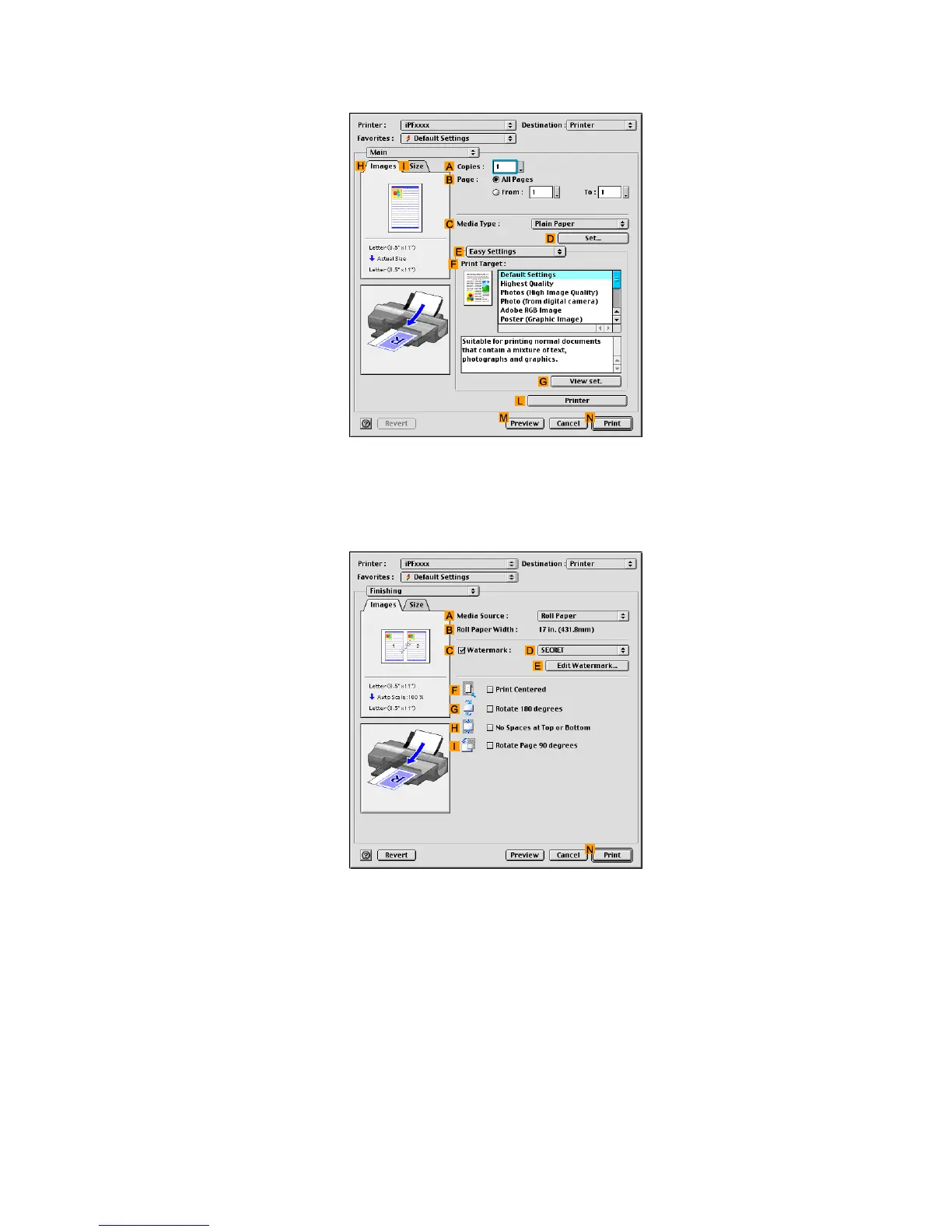

Borderless
Printing
7.
Make
sure
the
Main
pane
is
displayed.
8.
In
the
C
Media
T
ype
list,
select
the
type
of
paper
that
is
loaded.
In
this
case,
click
Heavyweight
Coated
Paper
.
9.
Select
the
print
target
in
the
F
Print
T
arget
list.
10.
Access
the
Finishing
pane.
1
1.
Click
Roll
Paper
in
the
A
Media
Source
list.
346
Enhanced
Printing
Options
359
361
