3-CONTROLSANDINSTRUMENTS

MAINMENU

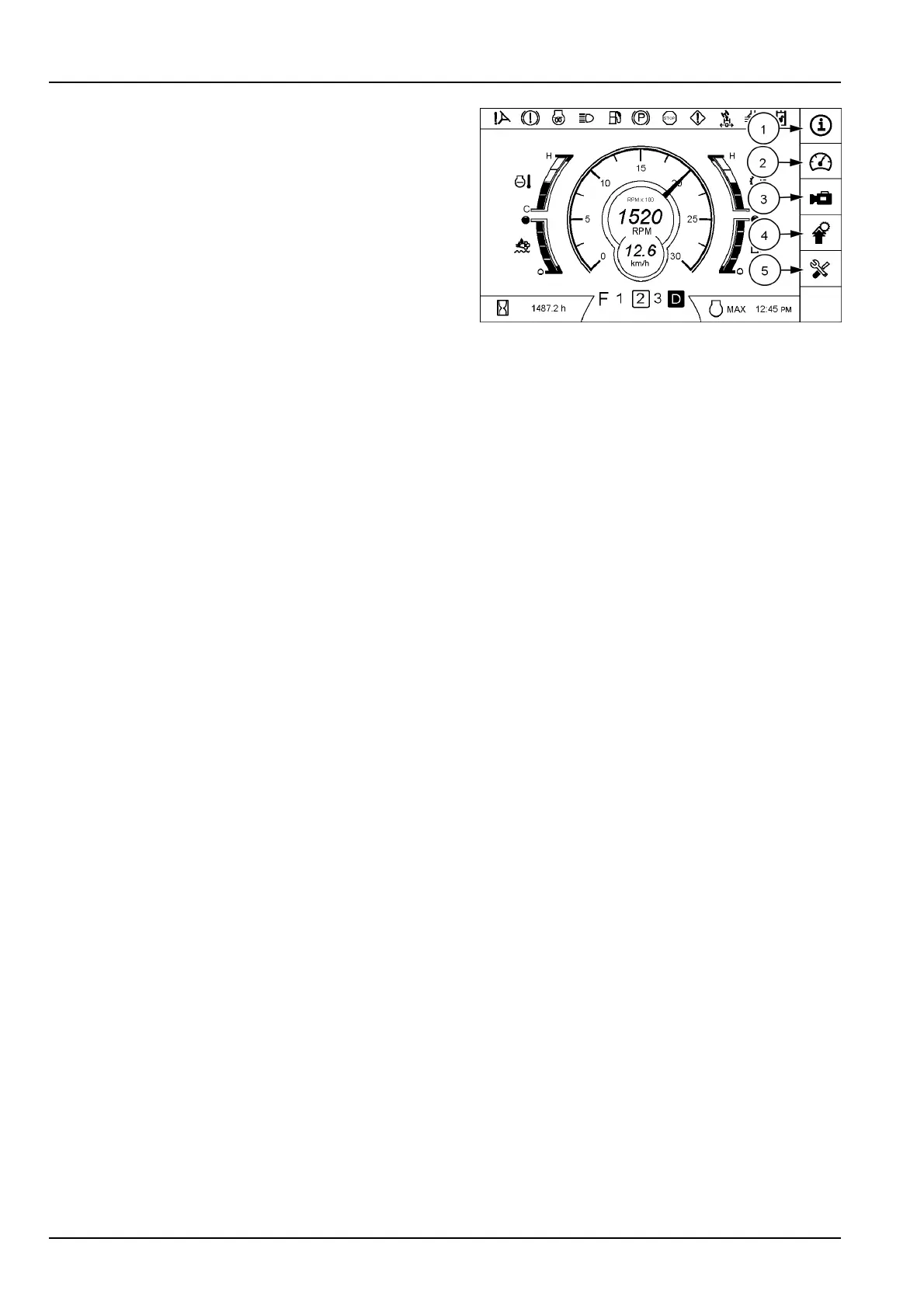

AfterthekeyswitchhasbeenturnedtoON,theoperator

orservicetechnicianmayusethemainmenutoadjust

themachinecongurationstoworkingconditions,totest

components,toviewfaultsthatmayhaveoccurred,orto

selectpreferences.

Itemsandselectionsinthismenuare:

1.Machinestatus

2.Trip

3.RearviewCamera

4.Machinesettings

5.MachineService

LEIL16WHL1581AA3

3-44
