Case 621G - Page 107

To Next Page

To Previous Page

3-CONTROLSANDINSTRUMENTS

Trip

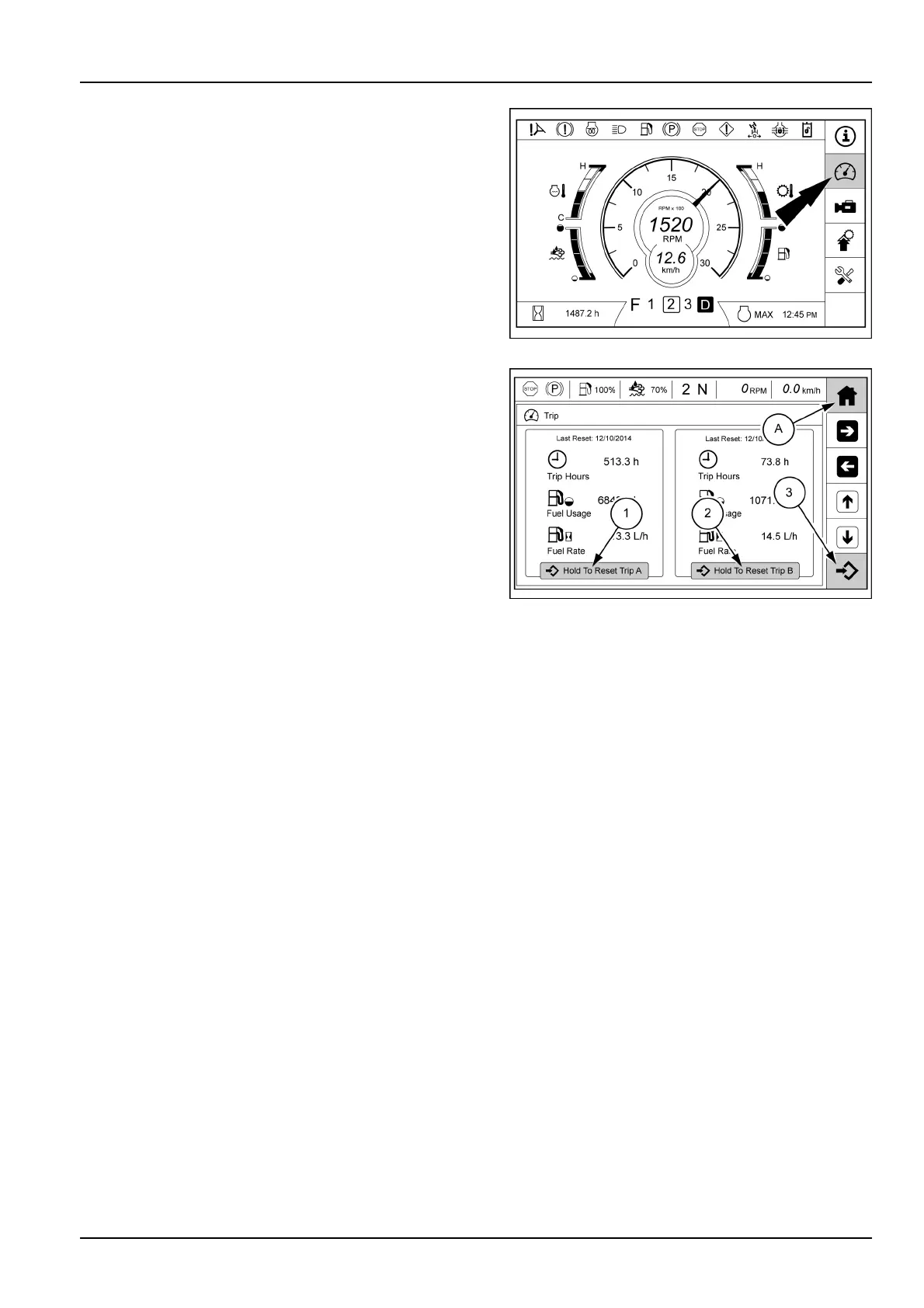

Usethekeypadontheright-handofthedisplaytoselect

thekeytoaccesstothe“Trip”screen.

LEIL15WHL0630AA9

Thescreendisplays:

•

TripA

•

TripB

Toresetthetripscreen,selectdesiredTripA(1)orB(2).

Pressandholdtheconrmkey(3).Pressthehomekey

(A)toreturntothemainmenu.

LEIL15WHL0523AB10

3-47
