3-CONTROLSANDINSTRUMENTS

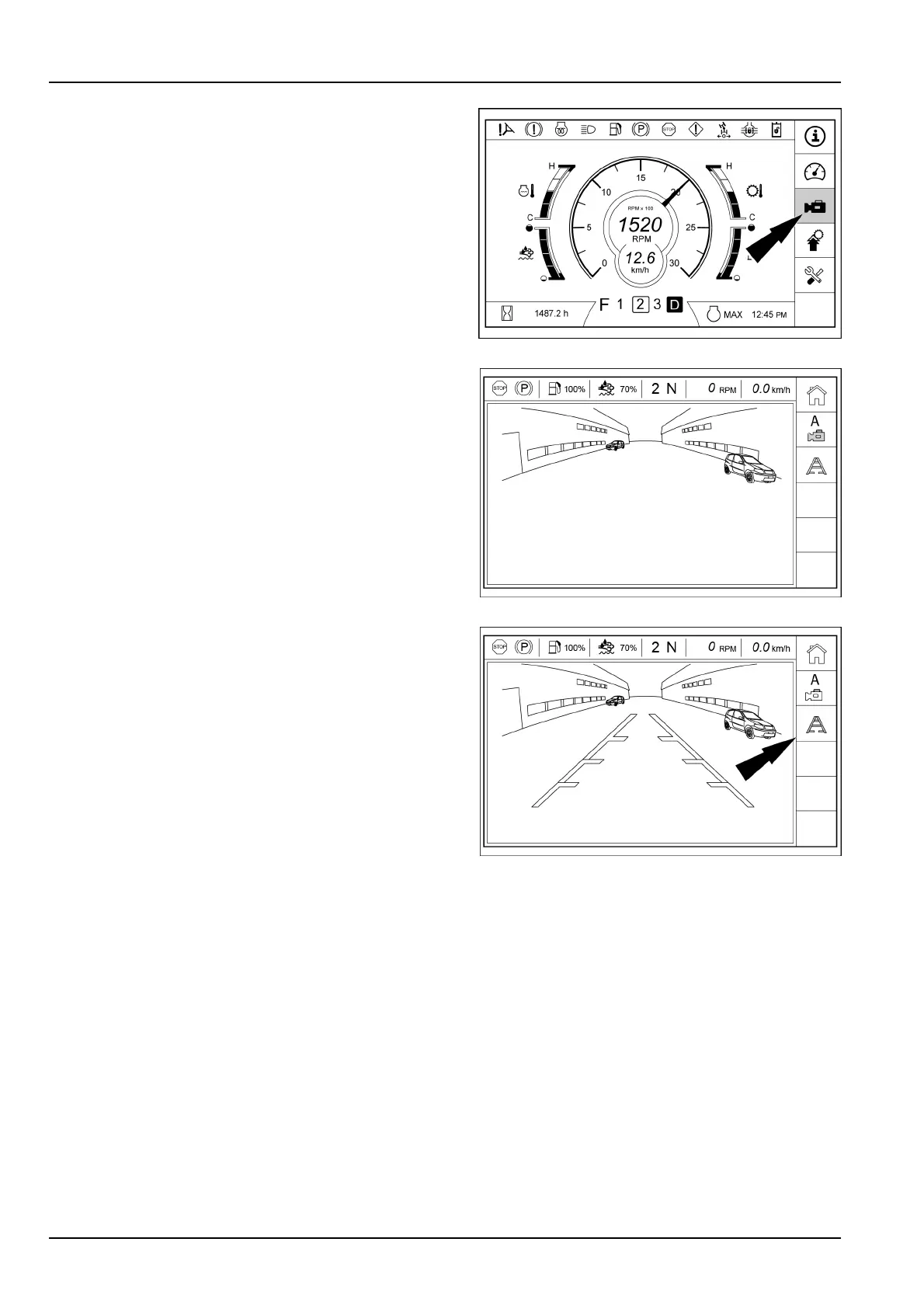

Rearviewbackupcamera

NOTE:theCCTV(Closed-CircuitTelevisionSystem)as-

sembledonthemachinehasonerearcameraandthe

monitorisconguredtoprovideareverseimage.

Usethekeypadontheright-handofthedisplaytoselect

thekeytoactivatetherearviewbackupcamera.

LEIL15WHL0631AA11

Inthedisplayappearstheimageprojectedfromthe

rearviewcamera.

LEIL16WHL0873AA12

Usethekeypadontheright-handofthedisplaytoselect

thekeytoactivatethe“assistantparkingline”.

LEIL16WHL0872AA13

3-48
