3-CONTROLSANDINSTRUMENTS

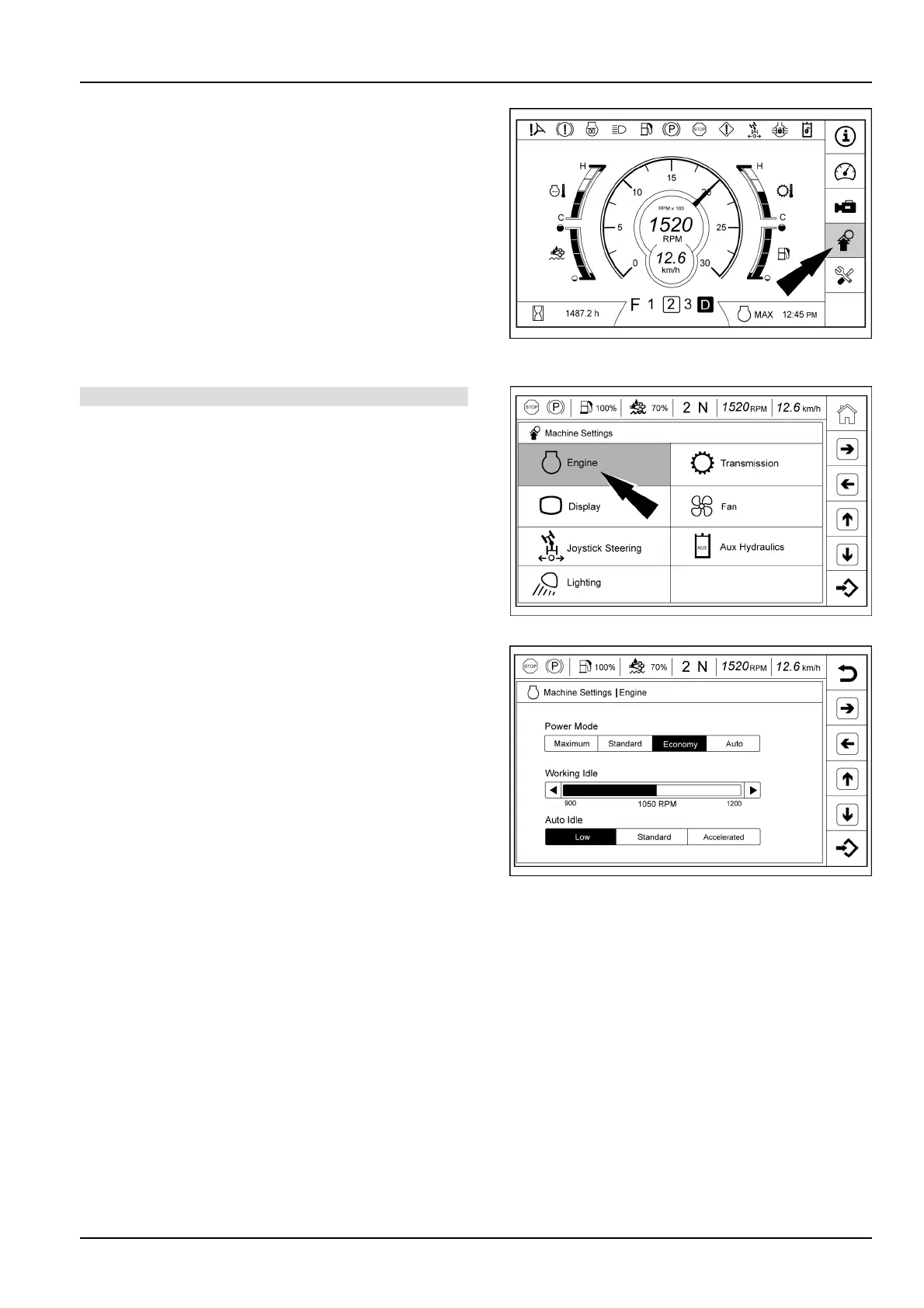

MachineSettings

Usethekeypadontheright-handofthedisplaytoselect

thekeytoaccesstothe“Machinesettings”screens.

Selectionsatthesettingmenuinclude:

•

Engine

•

Transmission

•

Display

•

Fan(ifequipped)

•

JoystickSteering(ifequipped)

•

AuxiliaryHydraulics(ifequipped)

LEIL15WHL0632AA14

Engine

Usethekeypadontheright-handofthedisplaytoselect

thekeytoswitchtothe“Engine”settings.

LEIL18WHL1213AA15

→Engineselections

PowerMode

WorkingIdle

AutoIdle

LEIL15WHL0526AA16

3-49
