3-CONTROLSANDINSTRUMENTS

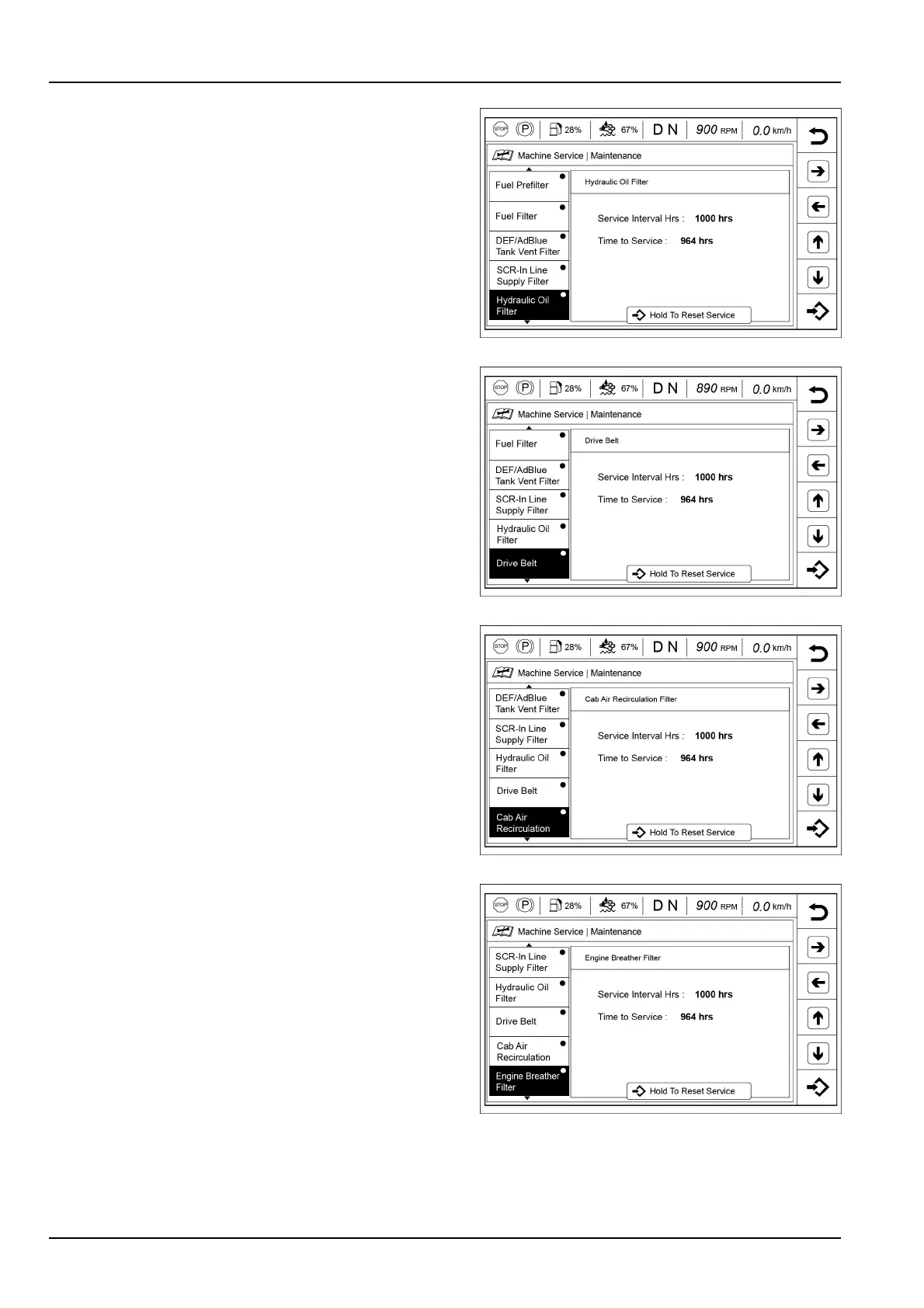

HydraulicOilFilter:

•ServiceIntervalsHrs:1000h

•TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0966AA40

DriveBelt:

ServiceIntervalsHrs:1000h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0967AA41

CabAirRecirculation:

ServiceIntervalsHrs:1000h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0968AA42

EngineBreatherFilter:

ServiceIntervalsHrs:1000h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0969AA43

3-56
