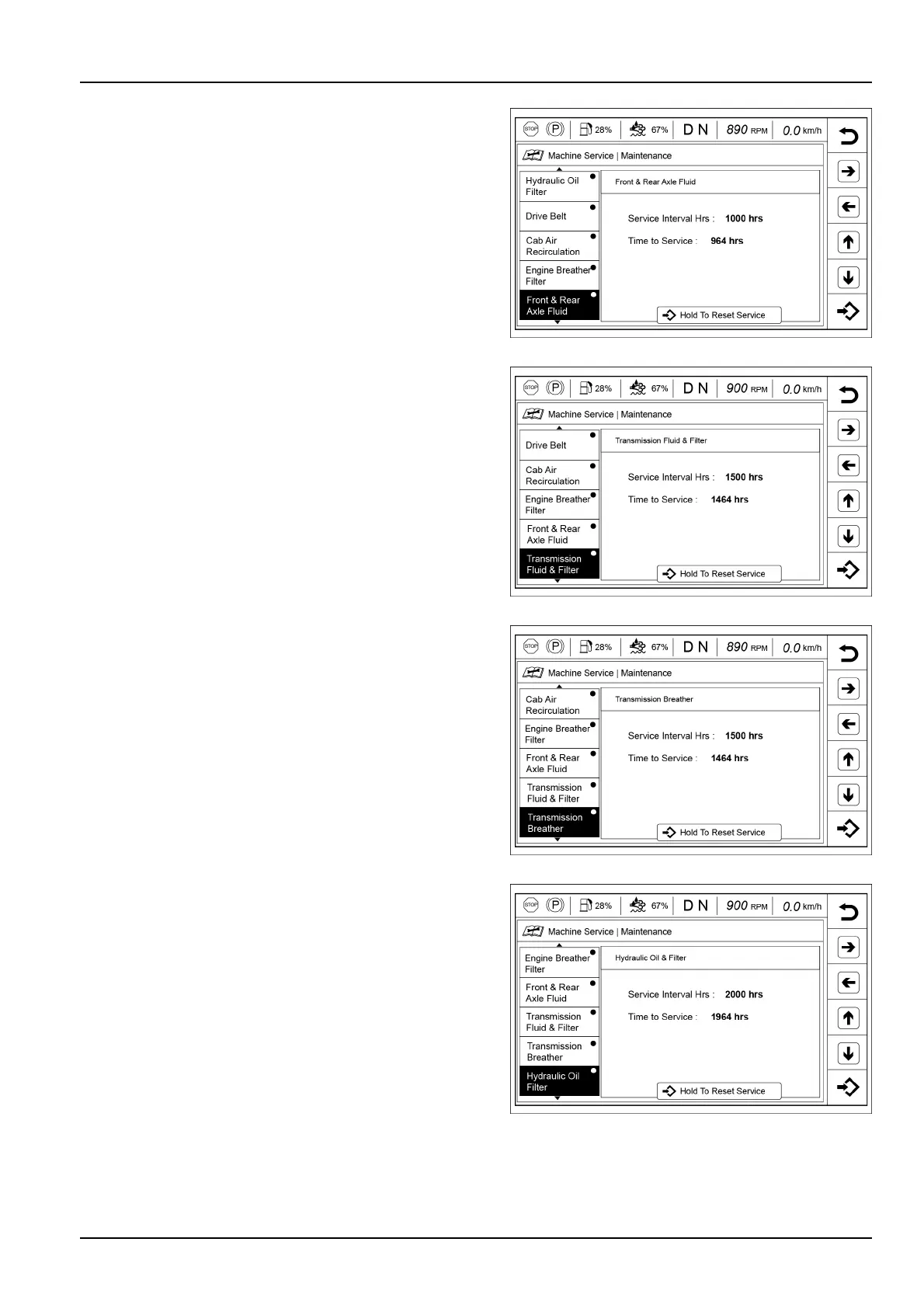

3-CONTROLSANDINSTRUMENTS

Front&RearAxleFluid:

ServiceIntervalsHrs:1000h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL1307AA44

TransmissionFluid&Filter:

ServiceIntervalsHrs:1500h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0971AA45

TransmissionBreather:

ServiceIntervalsHrs:1500h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0972AA46

HydraulicOilFilter:

ServiceIntervalsHrs:2000h

TimetoService:(hoursremaininguntilserviceisdue)

LEIL16WHL0973AA47

3-57
