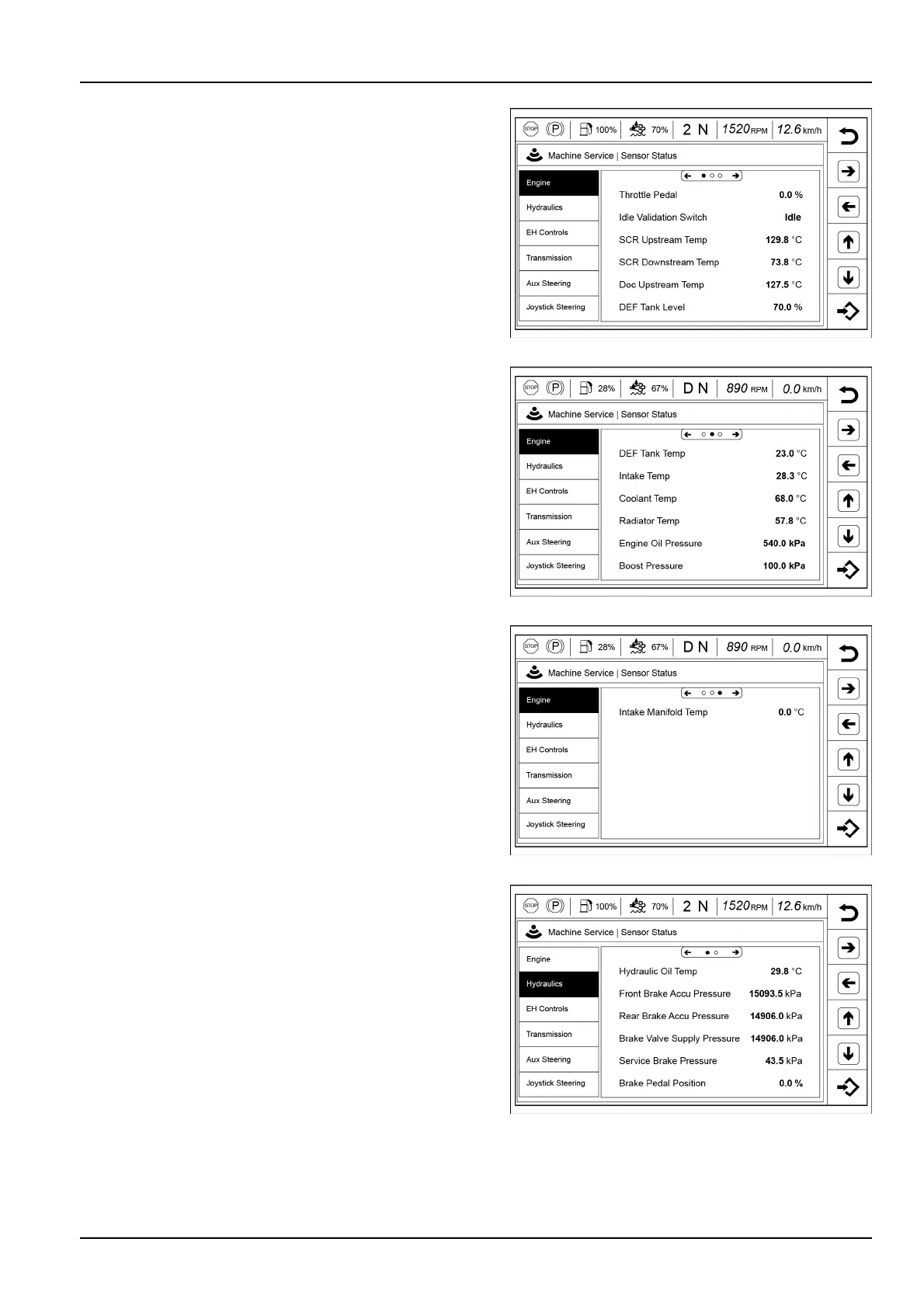

3-CONTROLSANDINSTRUMENTS

→Engine

ThrottlePedal

IdleValidationSwitch

SCRUpstreamT emperature

SCRDownstreamT emperature

DocUpstreamTemperature

DEF/ADBLUE®TankLevel

LEIL16WHL0890AA52

DEFT ankTemp

IntakeT emp

CoolantT emp

RadiatorT emp

EngineOilPressure

BoostPressure

LEIL16WHL0983AA53

IntakeManifoldT emp

LEIL16WHL0982AA54

→Hydraulics

HydraulicOilTemperature

FrontBrakeAccumulatorPressure

RearBrakeAccumulatorPressure

BrakeValveSupplyPressure

ServiceBrakePressure

BrakePedalPosition

LEIL16WHL0891AA55

3-59
