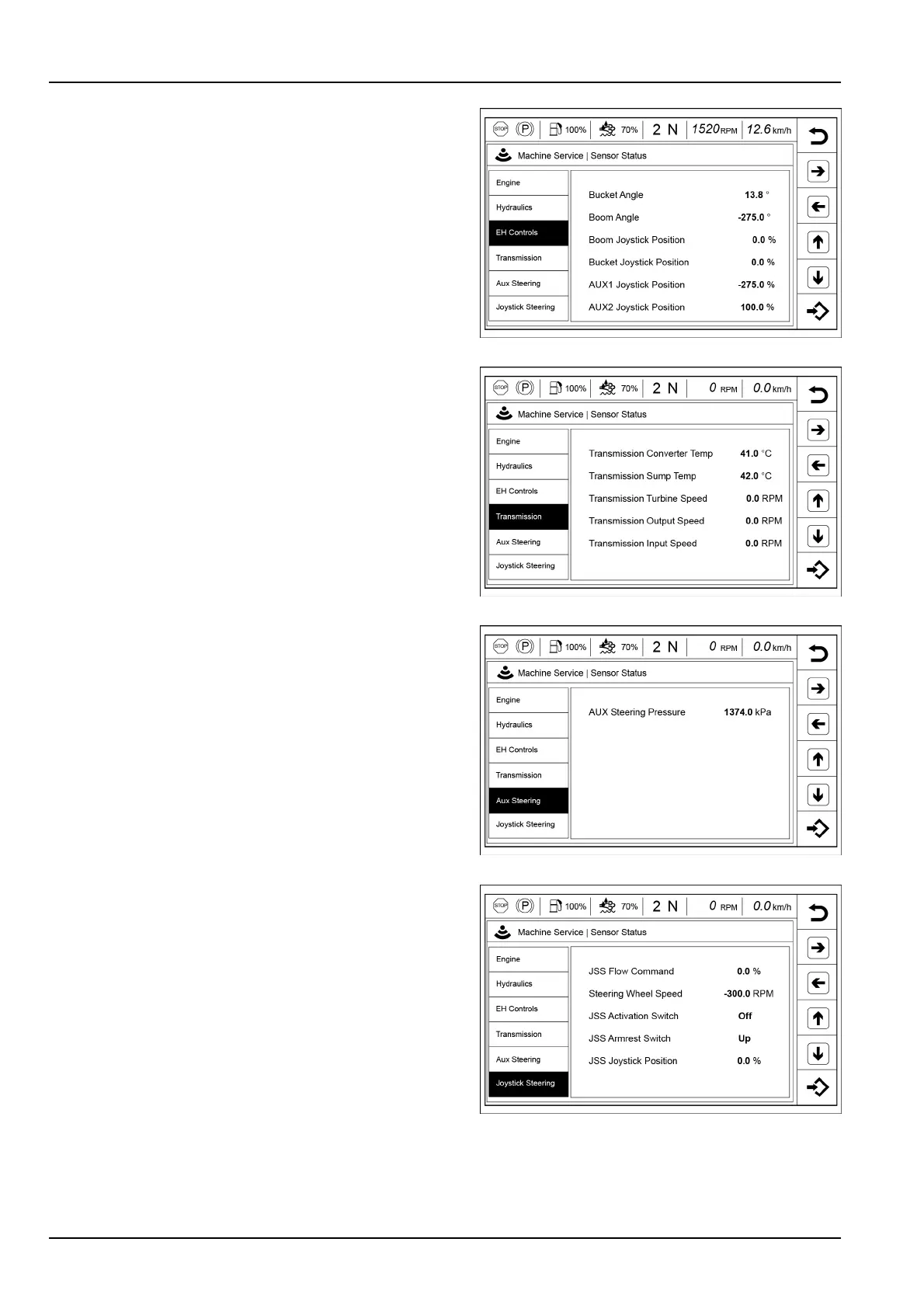

3-CONTROLSANDINSTRUMENTS

→EH(Electro-Hydraulic)Controls

BucketAngle

BoomAngle

BoomJoystickPosition

BucketJoystickPosition

AUX1JoystickPosition

AUX2JoystickPosition

LEIL16WHL0892AA56

→Transmission

TransmissionConverter

Temperature

TransmissionSumpT emperature

TransmissionTurbineSpeed

TransmissionOutputSpeed

TransmissionInputSpeed

LEIL16WHL0893AA57

→AuxiliarySteering

AuxiliarySteering

LEIL16WHL0894AA58

→JoystickSteering

JSSFlowCommand

SteeringWheelSpeed

JSSActivationSwitch

JSSArmrestSwitch

JSSJoystickPosition

LEIL16WHL0895AA59

3-60
