3-CONTROLSANDINSTRUMENTS

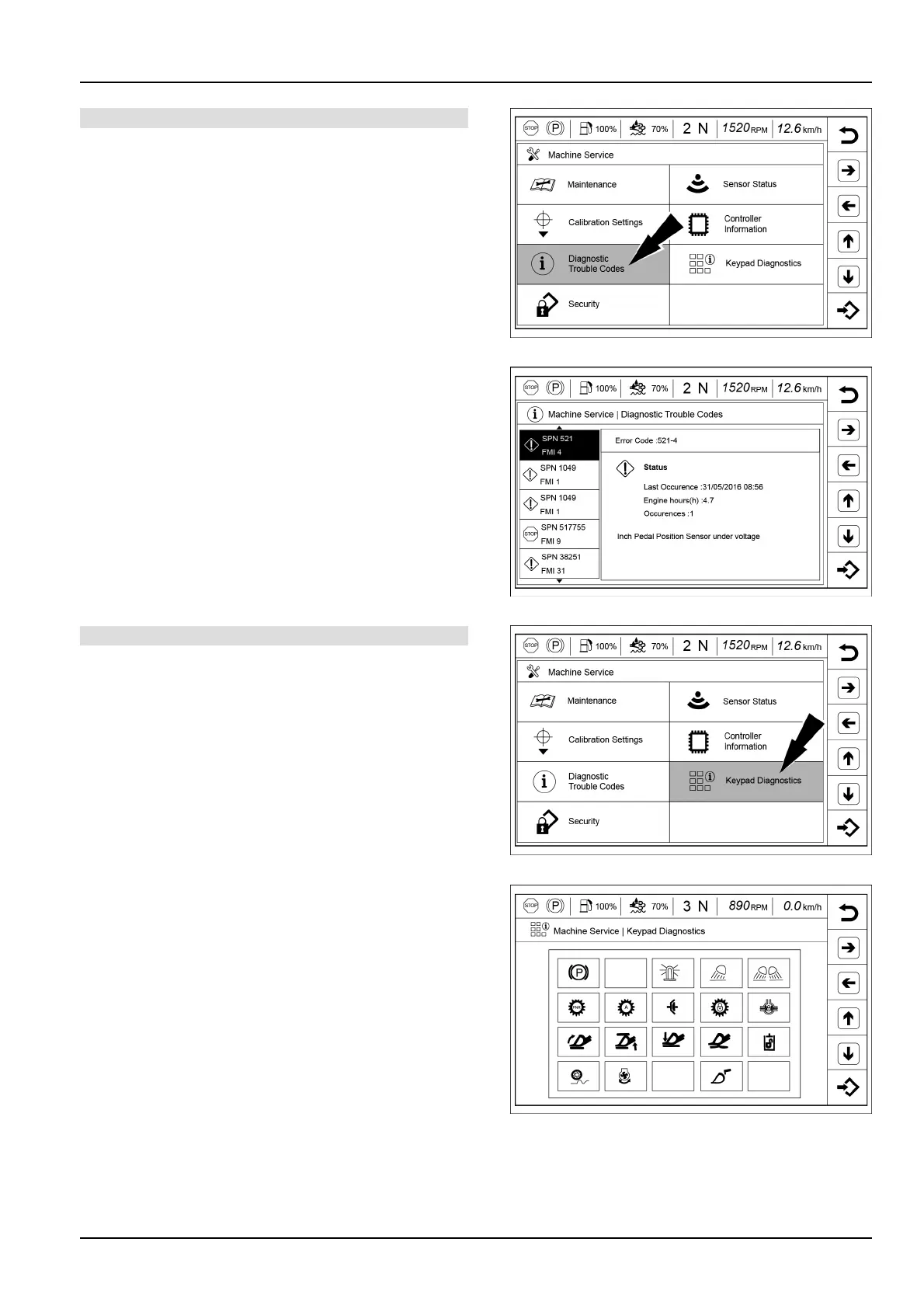

DiagnosticTroubleCodes

Usethekeypadontheright-handofthedisplaytoselect

thekeytoswitchtothe“DiagnosticTroubleCodes”page.

LEIL16WHL0909AA84

→DiagnosticTroubleCodes

Thispageshowsthelistofthefaultcodesoccurredinthe

machine.

LEIL16WHL0881AA85

KeypadDiagnostics

Usethekeypadontheright-handofthedisplaytoselect

thekeytoswitchtothe“KeypadDiagnostics”page.

LEIL16WHL0932AA86

→KeypadDiagnostics

Thispageshowsthebuttoniconsofthemultifunctionkey-

pad.

Whenkeypadbuttonispressed,thecorrespondingbutton

onthedisplayishighlighted.

LEIL18WHL1282AA87

3-67
