2-SAFETYINFORMATION

LEIL16WHL0541AA27

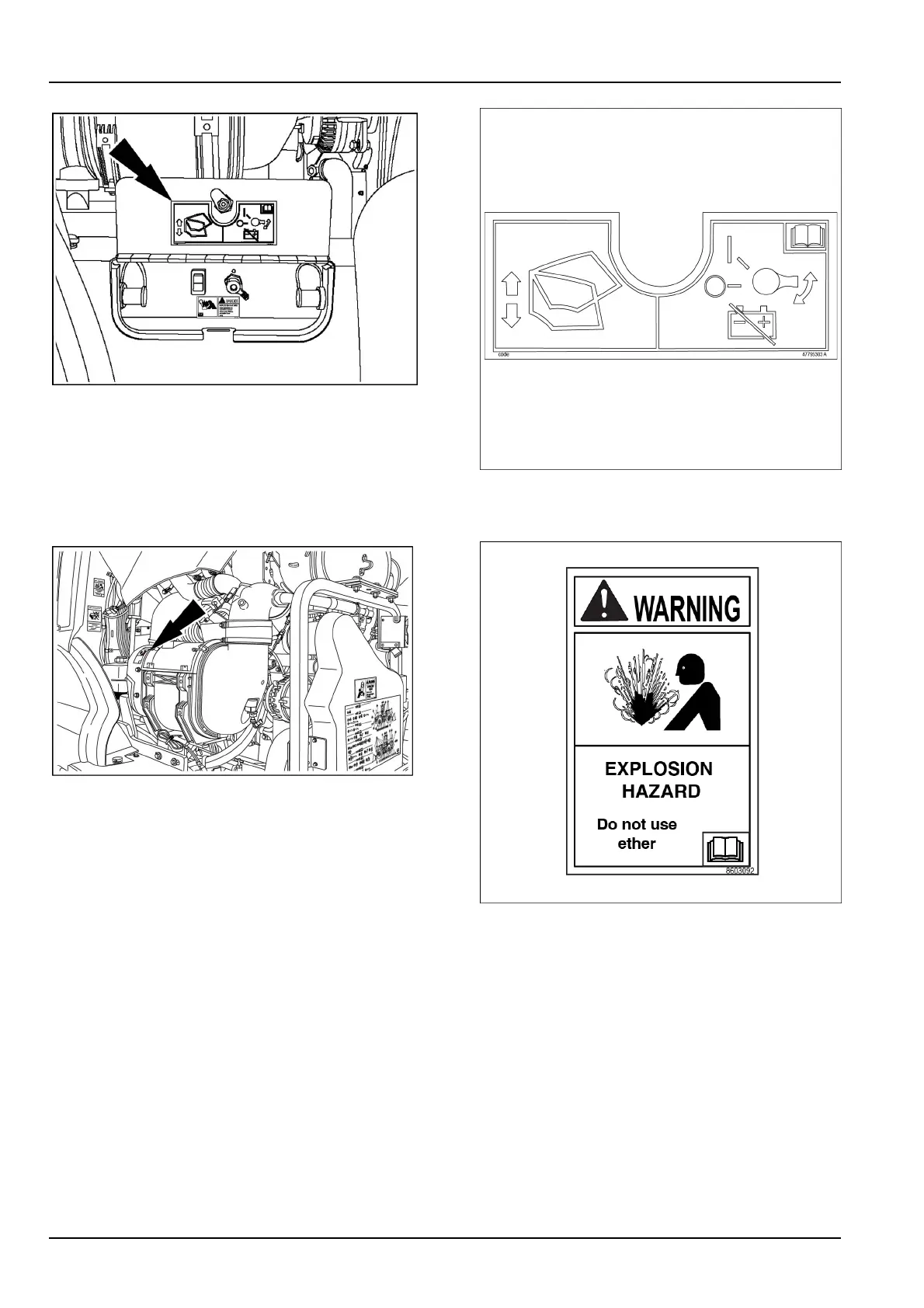

Location:innersideofthetimeddisconnectswitch

compartmentdoor(left-handsideofthemachine).

Informationaldecal:timeddisconnectswitch

NorthAmericandecalnumber:47795303

47795303_28

LEIL13WHL0300AA29

Location:aircleanerhousing.

WARNING

Explosionhazard!

Donotuseether.

Failuretocomplywiththiswarningcouldresultindeath

orseriousinjury.

NorthAmericandecalnumber:47728994

FrenchCanadiandecalnumber:47728074

Spanishdecalnumber:8603094

8603092_30

2-30
