2-SAFETYINFORMATION

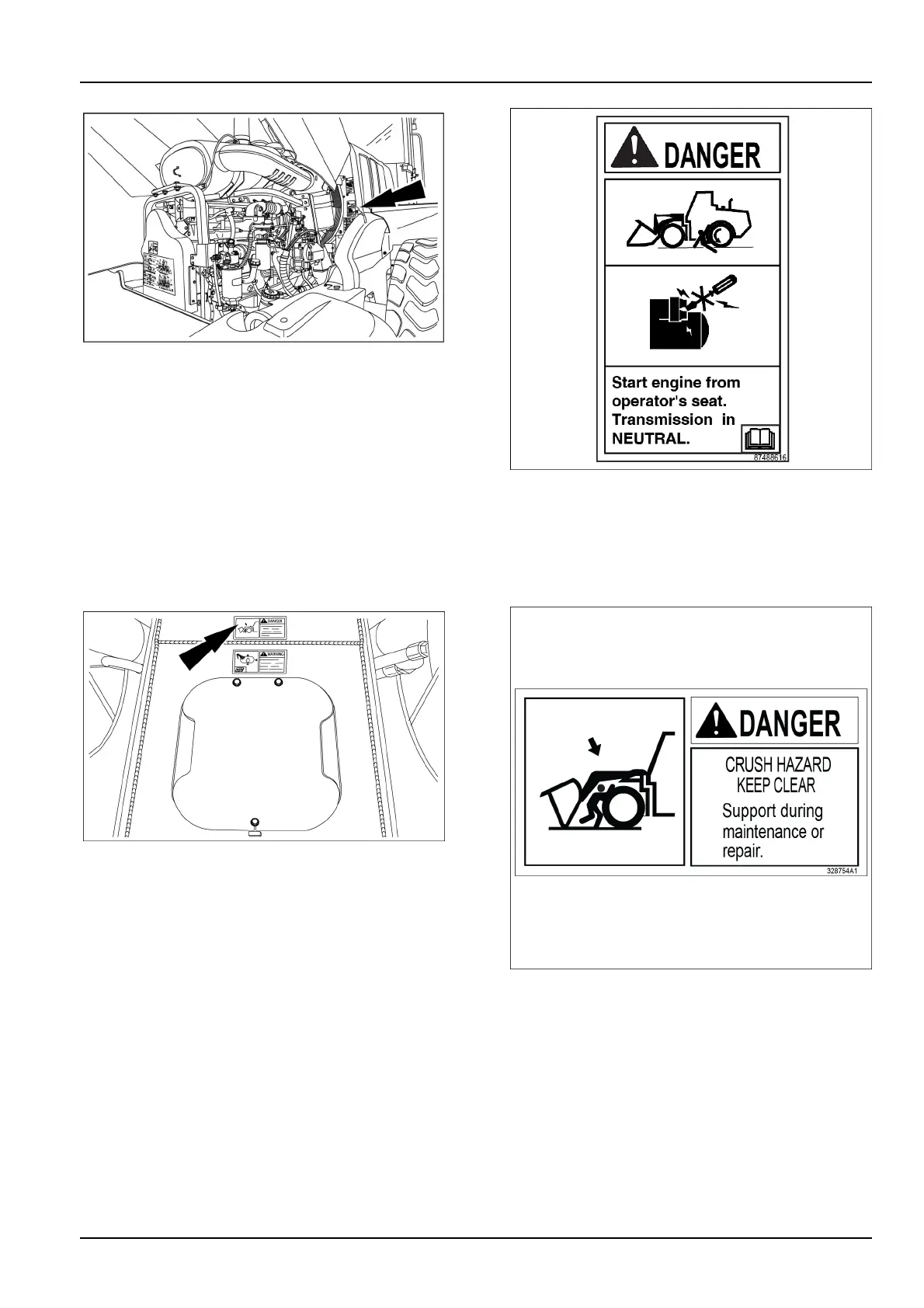

LEIL13WHL0293AA39

Location:right-handsideoftheenginecompartment,

nearthefanguard.

DANGER

Unexpectedmovement!

Starttheenginefromtheoperator'sseat.

Transmissionmustbeinneutral.

Failuretocomplywillresultindeathorseriousinjury.

NorthAmericandecalnumber:87488616

FrenchCanadiandecalnumber:87488617

Spanishdecalnumber:87488618

87488616_40

LEIL16WHL0053AA41

Onlyfor721G.

Location:frontofthemachine,underthebucketcontrol

cylinder.

DANGER

Crushhazard!Keepclear!

Supportduringmaintenanceorrepair.

Failuretocomplywillresultindeathorseriousinjury.

NorthAmericandecalnumber:328754A1

FrenchCanadiandecalnumber:334678A1

Spanishdecalnumber:334677A1

328754A1_42

2-33
