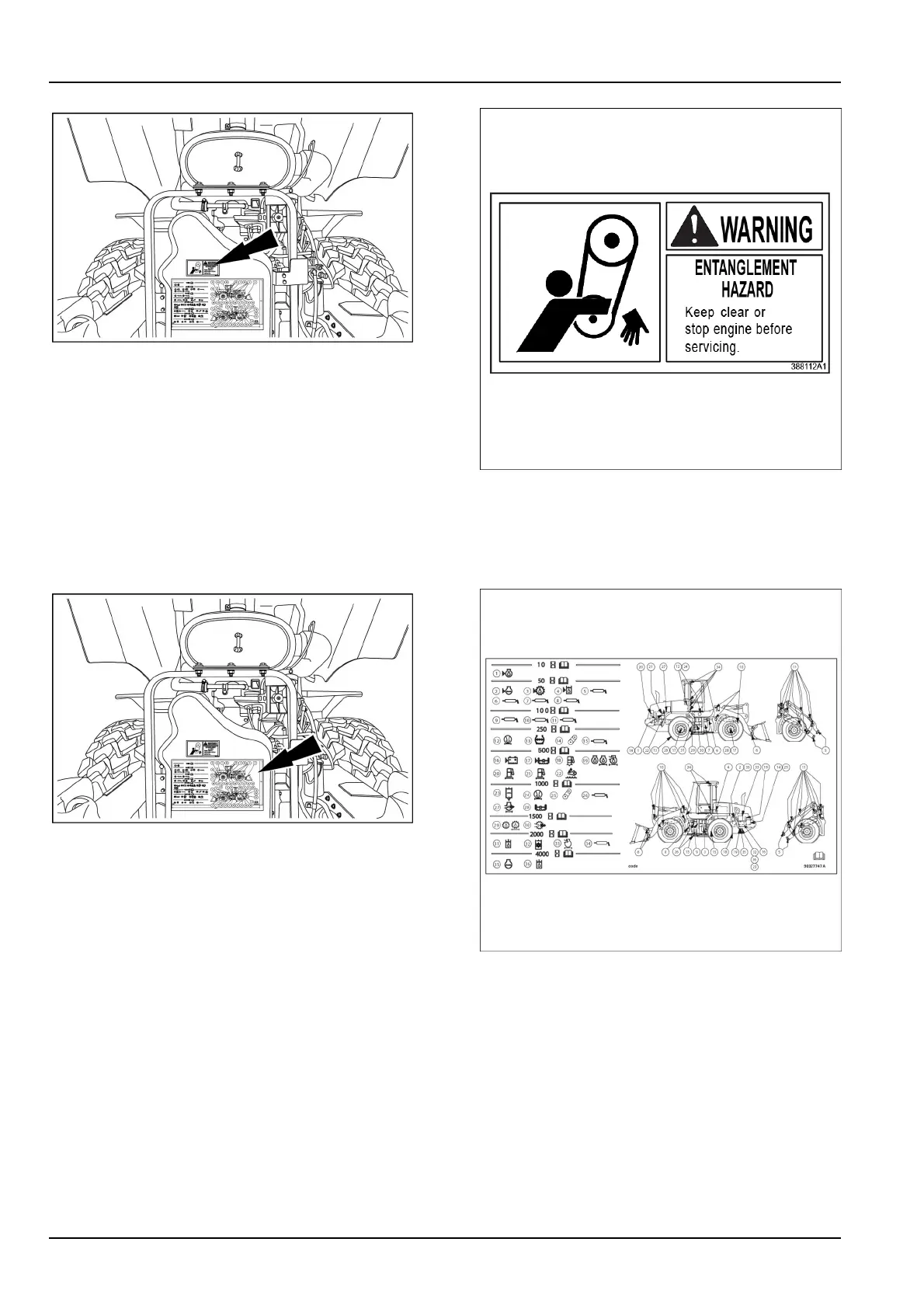

2-SAFETYINFORMATION

LEIL13WHL0303AA35

Location:rearoftheenginecompartment,onthecover.

WARNING

Entanglementhazard!

Keepclearorstoptheenginebeforeservicing.

Failuretocomplywiththiswarningcouldresultindeath

orseriousinjury.

NorthAmericandecalnumber:388112A1

FrenchCanadiandecalnumber:388157A1

Spanishdecalnumber:388158A1

388112A1_136

LEIL13WHL0303AA37

Location:rearoftheenginecompartment,onthecover.

Informationaldecal:maintenanceintervals.

NorthAmericanandISOdecalnumber-90327747

90327747_38

2-32
