3-CONTROLSANDINSTRUMENTS

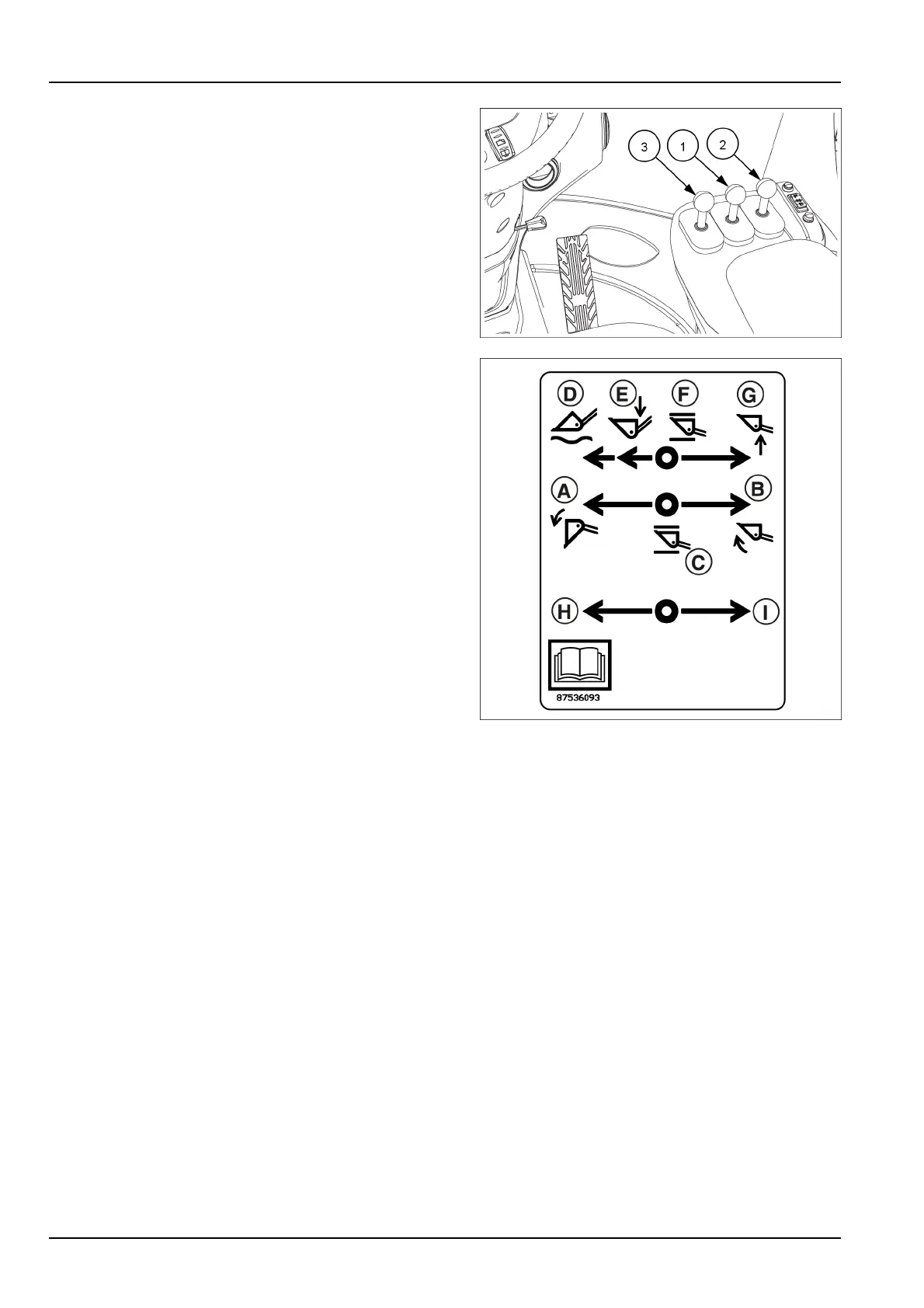

Threefunctionvalve-threecontrollevers
BucketControl(1)
A.DUMP
B.ROLLBACK
A-B.AUTOMATEDBUCKETMETERING–usedtoim-
provematerialmeteringoutofthebucketataconsistent
rate.Toengageautomatedfunctionality,movethejoy-
stickrapidlybackandforthfrom“A”Dumpto“B”Rollback
position.Thebucketacceleratesmorequicklywhilethis
motionismaintainedafter4neutralpointcrossings.Reg-
ularbucketcontrolresumesassoonasthebackandforth
motionisstopped.
C.HOLD(centralposition)-Theloaderarmsandbucket
willnotmovewhenthecontrolleverisintheHOLDpo-
sition.Whenreleased,thecontrolleverwillautomatically
returntotheHOLDposition.
LiftArmControl(2)
D.FLOAT–WhenintheFLOATposition,theloader
bucketoatsacrosstheroughground.
E.LOWER
F.HOLD(centralposition)-Theloaderarmsandbucket
willnotmovewhenthecontrolleverisintheHOLDpo-
sition.Thecontrolleverwillautomaticallyreturntothe
HOLDpositionwhenreleased.
G.RAISE
Auxiliarycontrol(3)
H.AUXILIARYFUNCTION
I.AUXILIARYFUNCTION
LEIL16WHL1302AA7
875360938
NOTE:sincethedecalisappliedontheright-handside
window,thedirectionsaretobeintendedasfollows:
A,D,E,H:Forward
B,G,I:Backward
3-30
