OPERATING THE MACHINE
3-57

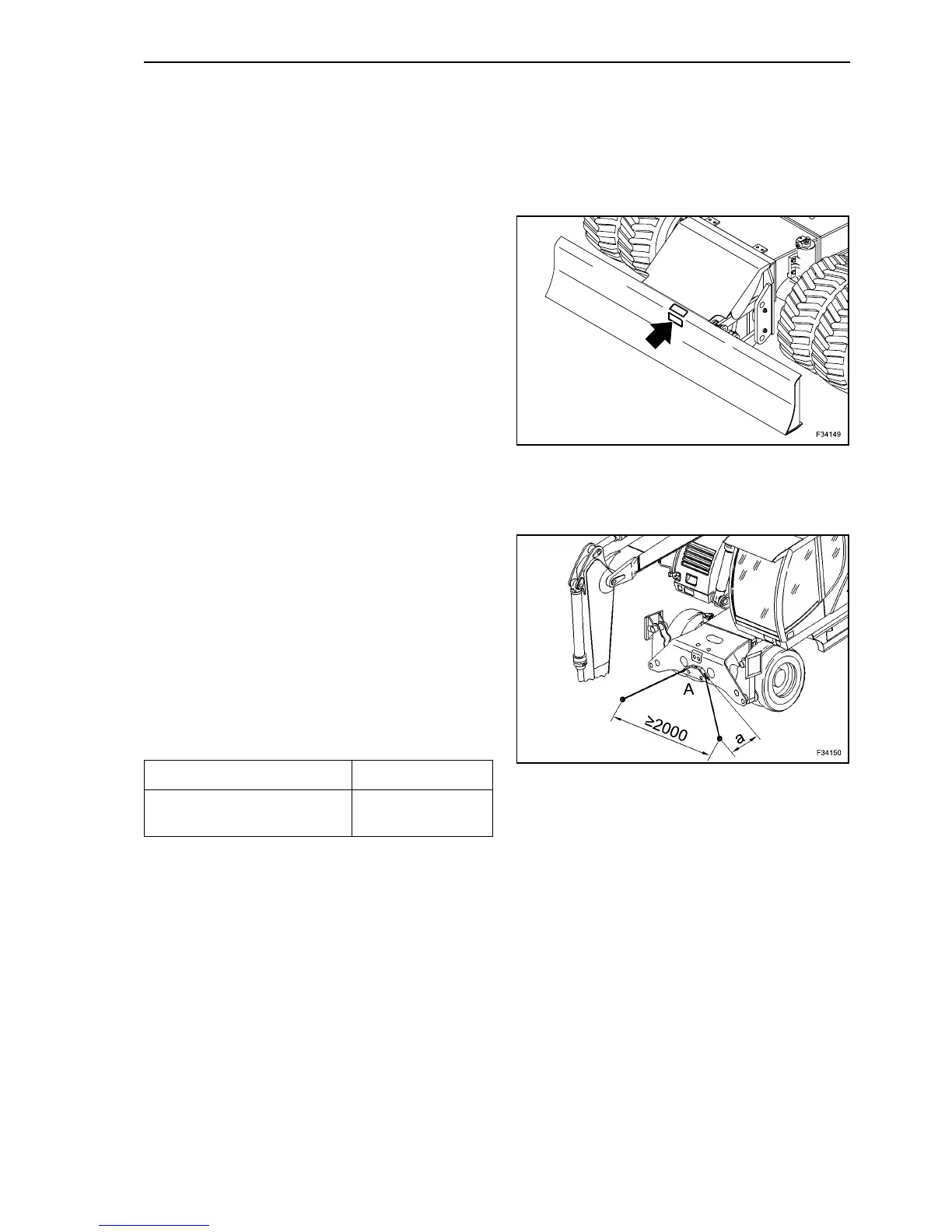

FASTENING POINT A LEVELLING BLADE IN
FRONT
NOTA: always drive the machine onto the low-bed
trailer in forward gear. Lower the levelling blade for
transport and for fastening onto the loading plat-
form.
Tie down the machine at the central fastening point,
using heavy-duty shackle.
Shackle
Form A / DIN 82101, tensile load 8500, 9500 or
12000 kg (18700, 20900 or 26400 lb).
Tie-down chains
Ø 13 mm (0.51 in) and an admissible tensile load of
10000 daN (22480.9 lbf) (10 t) / EN 12195-3.
FASTENING POINT A STABILIZERS IN FRONT
WITH TIE-DOWN BRACKET
Tie down the machine to both sides (not crosswise)
at the outer holes using heavy-duty shackles.
Shackles
Form A / DIN 82101, tensile load 8500, 9500 or
12000 kg (18700, 20900 or 26400 lb).
Tie-down chains
Ø 13 mm (0.51 in) and an admissible tensile load of
10000 daN (22480.9 lbf) (10 t) / EN 12195-3.
The fastening points on the loading platform must
be at least 2 m apart.
78
Models Tying distance at
WX 145 - WX 165 - WX 185
450 - 1000 mm
(17.7
2 - 39.37 in)
