SECTION 3
3-58

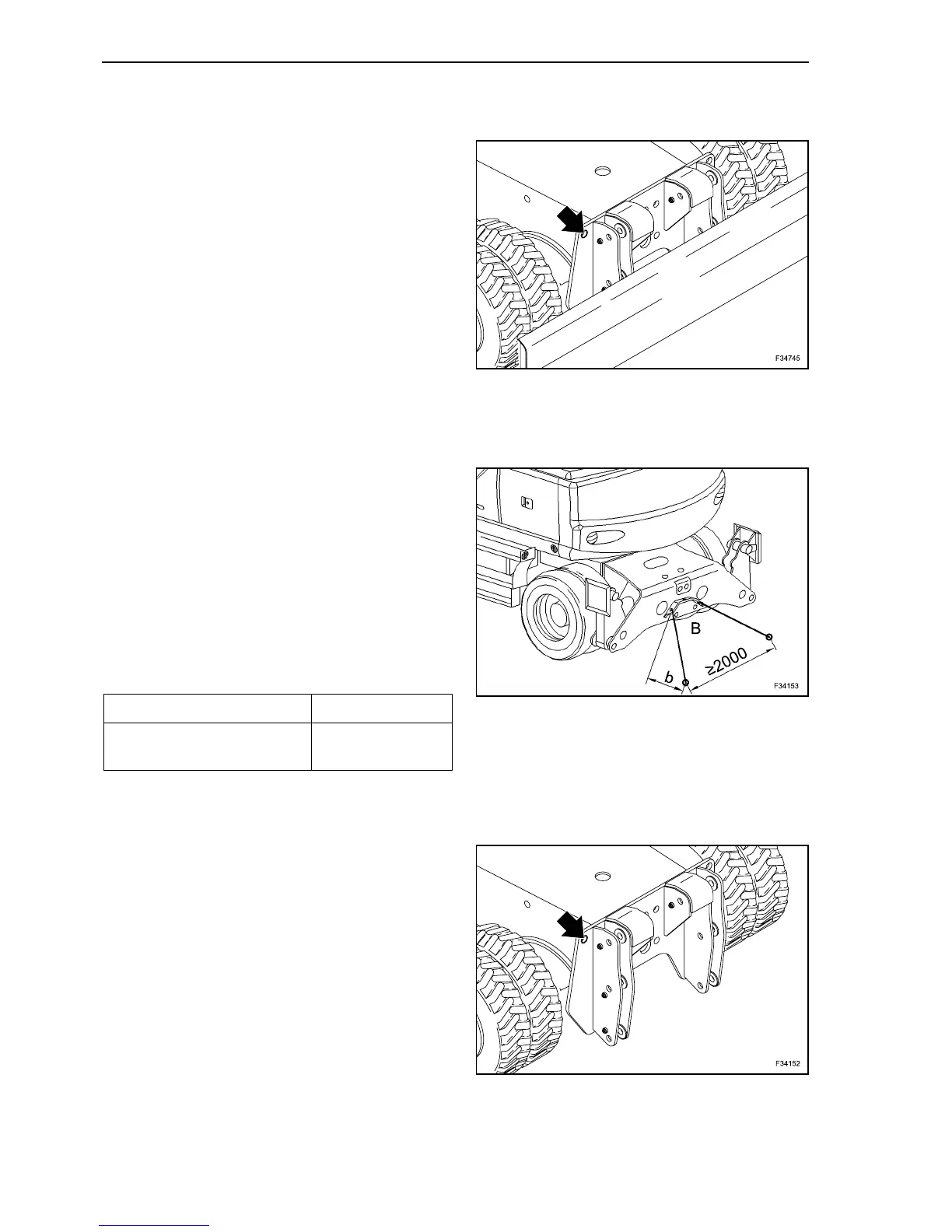

B FASTENING POINT, LEVELLING BLADE IN
THE REAR
NOTA: always drive the machine onto the low-bed
trailer in forward gear. Lower the levelling blade for
transport and for fastening onto the loading plat-
form.
Tie down the machine at the left and right fastening
holes, to the respective side (not crosswise) using
heavy-duty shackles.
Shackles
Form A / DIN 82101, tensile load 8500, 9500 or
12000 kg (18700, 20900 or 26400 lb).
Tie-down chains
Ø 13 mm (0.51 in) and an admissible tensile load of
10000 daN (22480.9 lbf) (10 t) / EN 12195-3.
FASTENING POINT B, STABILIZERS IN THE
REAR, WITH TIE-DOWN BRACKET
Tie down the machine to both sides (not crosswise)
at the outer holes using heavy-duty shackles.
Shackles
Form A / DIN 82101, tensile load 8500, 9500 or
12000 kg (18700, 20900 or 26400 lb).
Tie-down chains
Ø 13 mm (0.51 in) and an admissible tensile load of
10000 daN (22480.9 lbf) (10 t) / EN 12195-3.
The fastening points on the loading platform must
be at least 2 m (6.56 ft) apart.
FASTENING POINT B, WITHOUT BLADE AND
STABILIZERS
Tie down the machine to both sides (not crosswise)
at the outer holes using heavy-duty shackles.
Shackles
Form A / DIN 82101, tensile load 8500, 9500 or
12000 kg (18700, 20900 or 26400 lb).
Tie-down chains
Ø 13 mm (0.51 in) and an admissible tensile load of
10000 daN (22480.9 lbf) (10 t) / EN 12195-3.
80
Models Tying distance b
WX 145 - WX 165 - WX 185
1500 - 2650 mm
(59.05 - 104.33 in)
81
82
