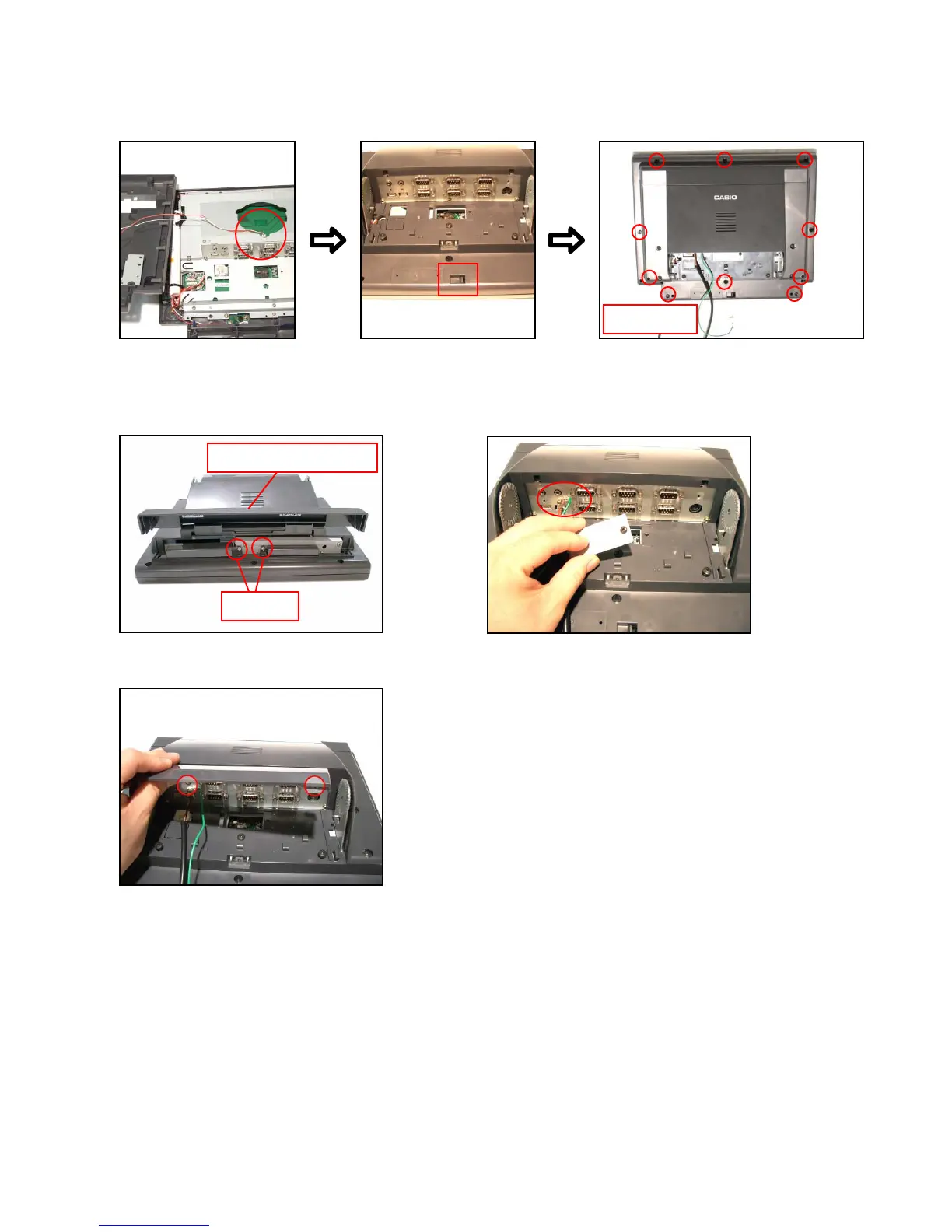

11. Connect the connector for the speaker and assemble the REAR CASE.
Hook the REAR CASE and fix it with ten screws.
12.Fix the PC CARD and the CF CARD COVER.
Fix the backup battery cover with one screw.
Connect the DRAWER wiring (a cable and an earth).
13.Fix the case with two screws.
Screw × 10
14.Fix the IP PORT COVER and the stand.
CARD SLOT COVER
Screws
To Next Page
