ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 4: Preparing an ASX-260 or ASX-520 Autosampler
37

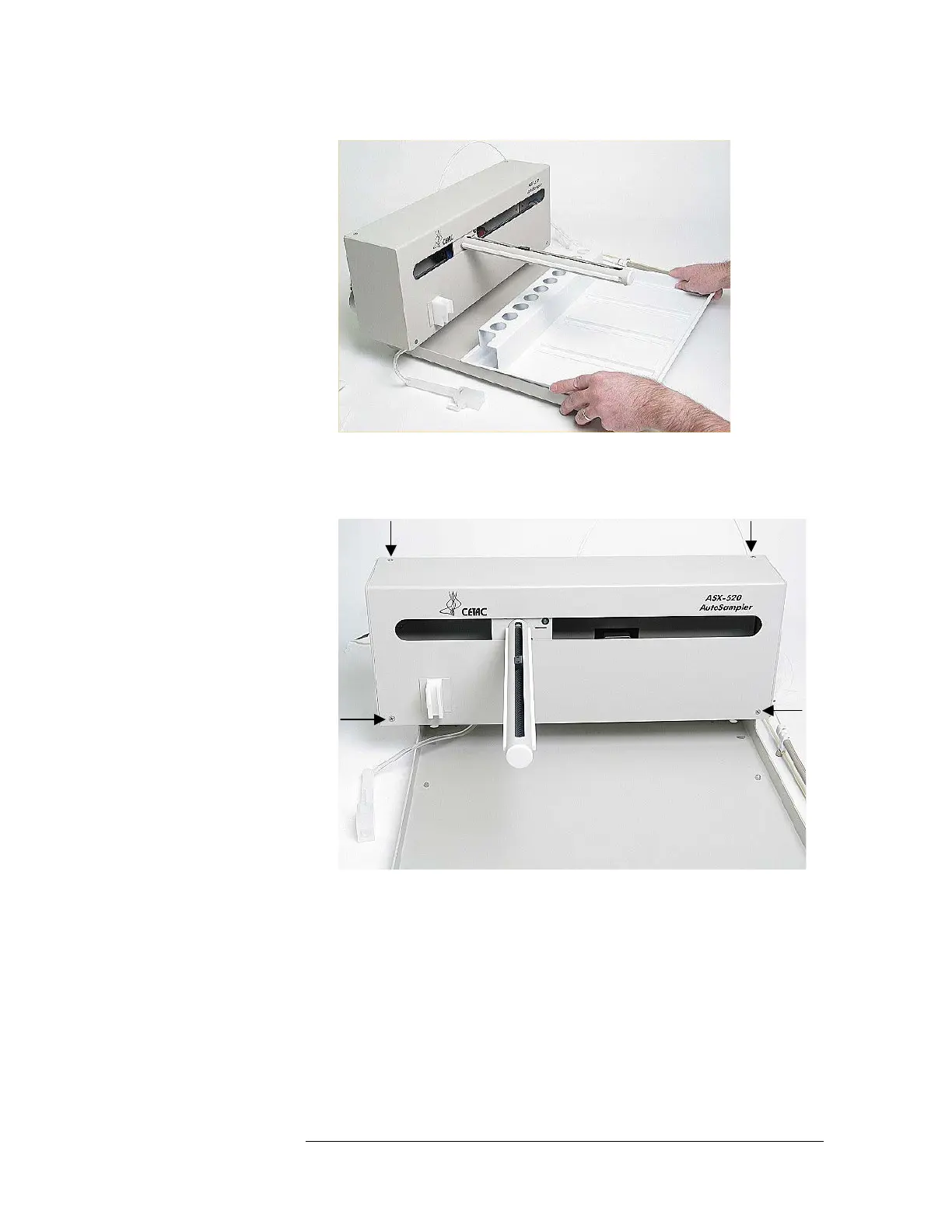

Figure 4-15 Removing the Tray (ASX-520)
7 Next, the front cover is to be removed. Remove the four corner screws (Figure
4-16).
Figure 4-16 Front View of ASX-520 Autosampler Showing Front Cover
Screws
