ASXPRESS PLUS Rapid Sample Introduction System Operator’s Manual
Chapter 4: Preparing an ASX-260 or ASX-520 Autosampler
38
8 The front cover is removed by lifting it slightly and pulling forward (Figure
4-17).

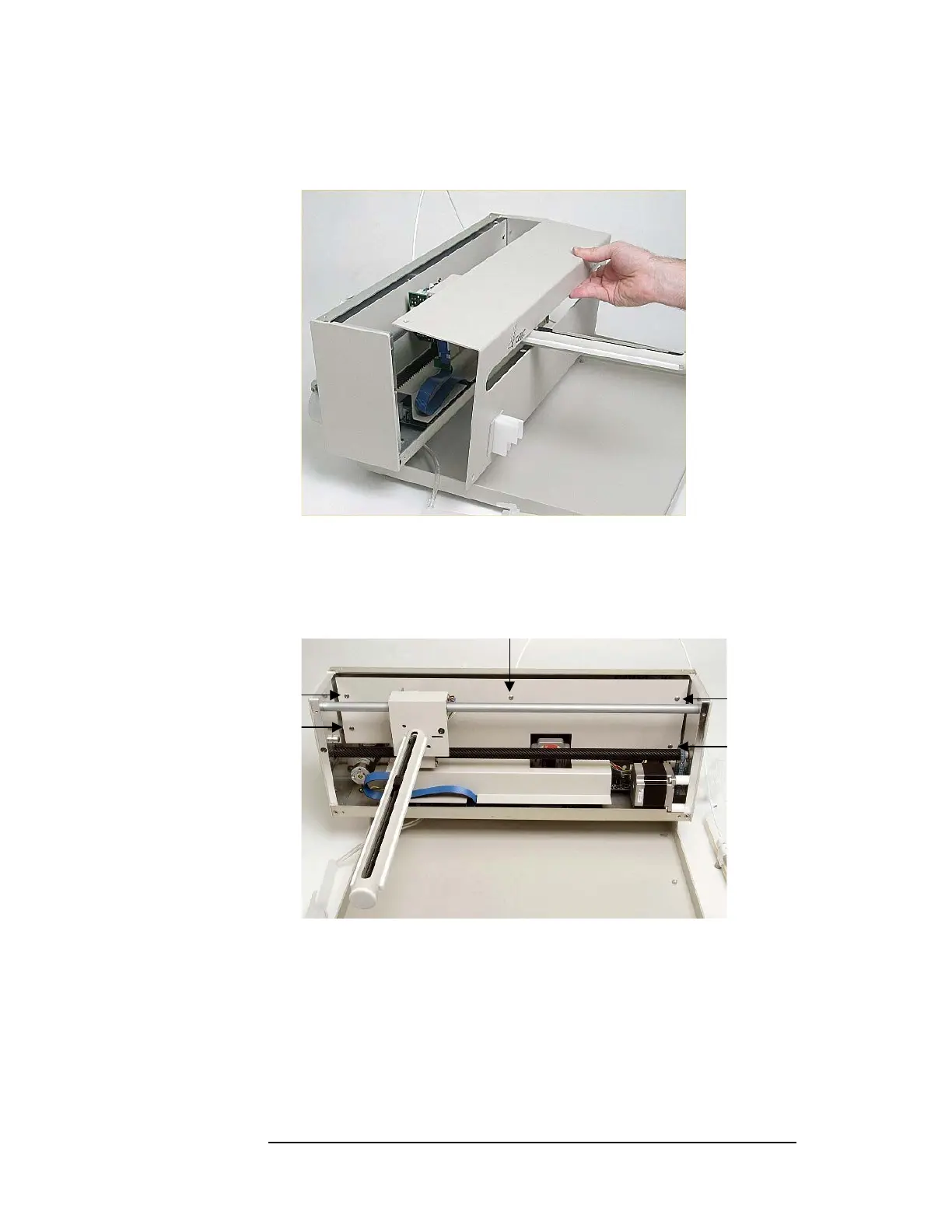

Figure 4-17 ASX-520 Autosampler with the Front Cover Being Removed
9 The screws that hold the inner shield must be removed. Move the Y-axis
assembly all the way to the left (Figure 4-18 shows screw locations). Your
autosampler may have a newer style shield with splashguard. These are
removed in a similar manner.
Figure 4-18 View of Inner Shield Inside the ASX-520 Autosampler
