10 The inner shield can be removed by moving the arm to the right or left then
lifting it up while pulling forward.(Figure 4-19).

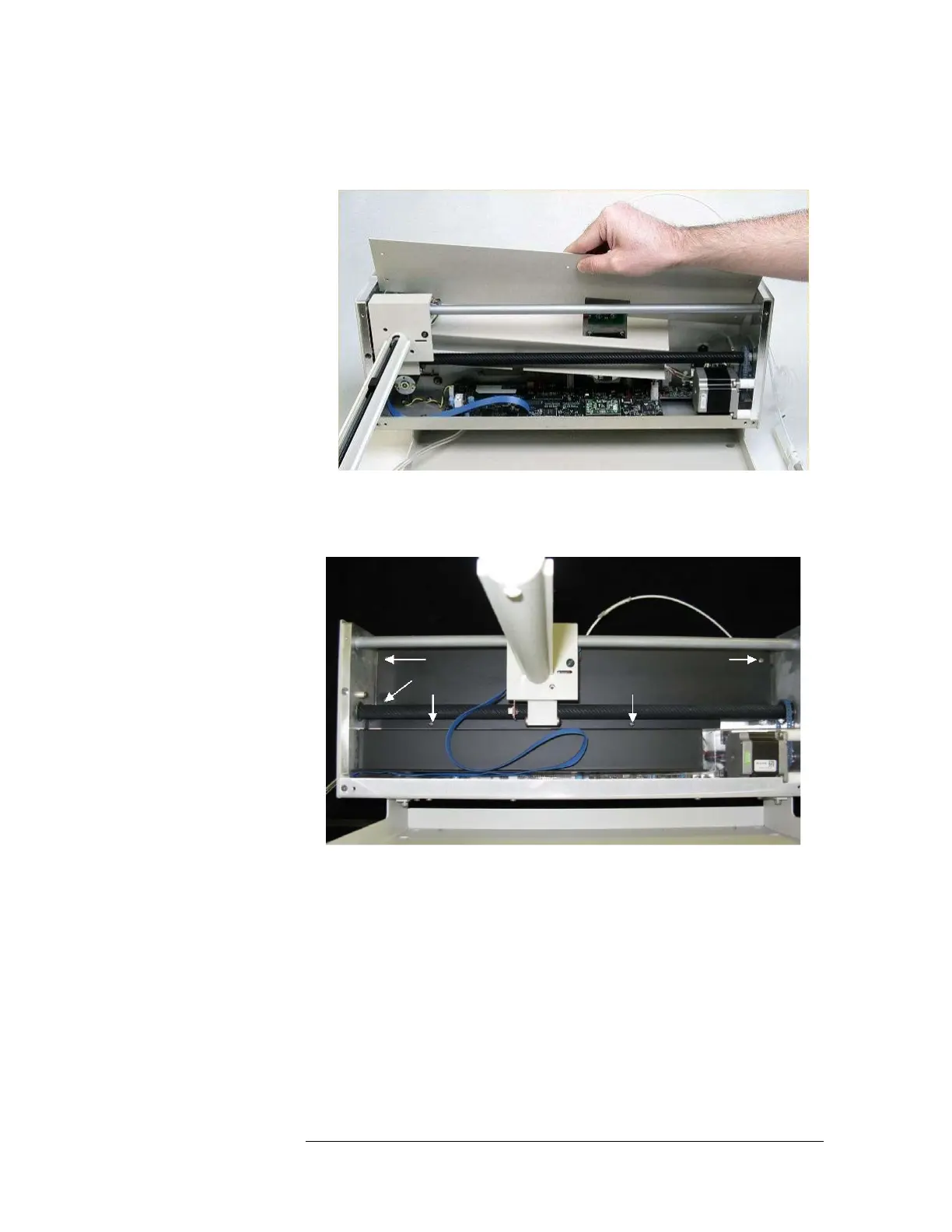

Figure 4-19 Removal of Inner Shield (ASX-520)
11 If you have a newer shield/splash guard combination proceed as follows.
Locate and remove the 5 screws holding the shield in place.
Figure 4-20 New Shield and Splashguard Inside the ASX-520
