CG Emotron VFX Series User Manual

138 Functional Description CG Drives & Automation, 01-5326-01r5
Skip Speed 2 High [347]
The same function as menu [345] for the 2nd skip range.
Communication information
Jog Speed [348]
The Jog Speed function is activated by one of the digital
inputs. The digital input must be set to the Jog function
[520]. The Jog command/function will automatically
generate a run command as long as the Jog command/
function is active. This is valid independent of settings in
menu [215]. The rotation is determined by the polarity of
the set Jog Speed.
Example
If Jog Speed = -10, this will give a Run Left command at
10 rpm regardless of RunL or RunR commands. Fig. 107
shows the function of the Jog command/function.
Communication information

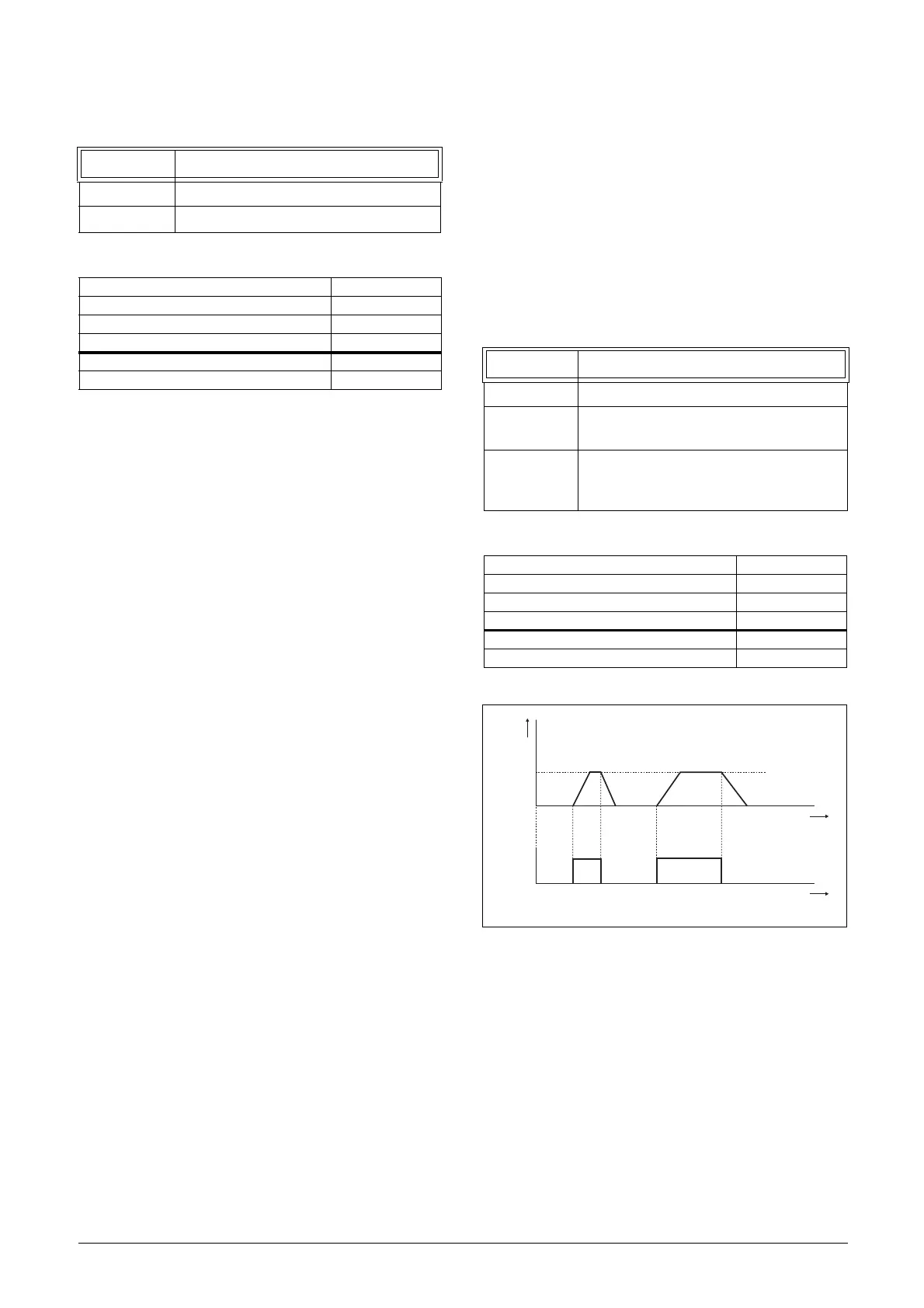

Fig. 107 Jog command
347 SkipSpd 2 Hi
Default: 0 rpm
Range: 0 – 4 x Motor Sync Speed
Modbus Instance no/DeviceNet no: 43127
Profibus slot/index 169/31
EtherCAT and CANopen index (hex) 4c37
Profinet IO index 19511
Fieldbus format Int, 1=1 rpm
Modbus format Int, 1=1 rpm
348 Jog Speed
Default: 50 rpm
Range:
-4 x motor sync speed to +4 x motor sync
speed
Dependent
on:
Defined motor sync speed. Max = 400%,
normally max=AC drive I
max
/motor I
nom
x
100%.
Modbus Instance no/DeviceNet no: 43128
Profibus slot/index 169/32
EtherCAT and CANopen index (hex) 4c38
Profinet IO index 19512
Fieldbus format Int, 1=1 rpm
Modbus format Int, 1=1 rpm
t
t
f
(NG_06-F18)
Jog
Freq
Jog
com-
mand
