Configuring Network Settings

Chapter 6: Managing Your Network 175

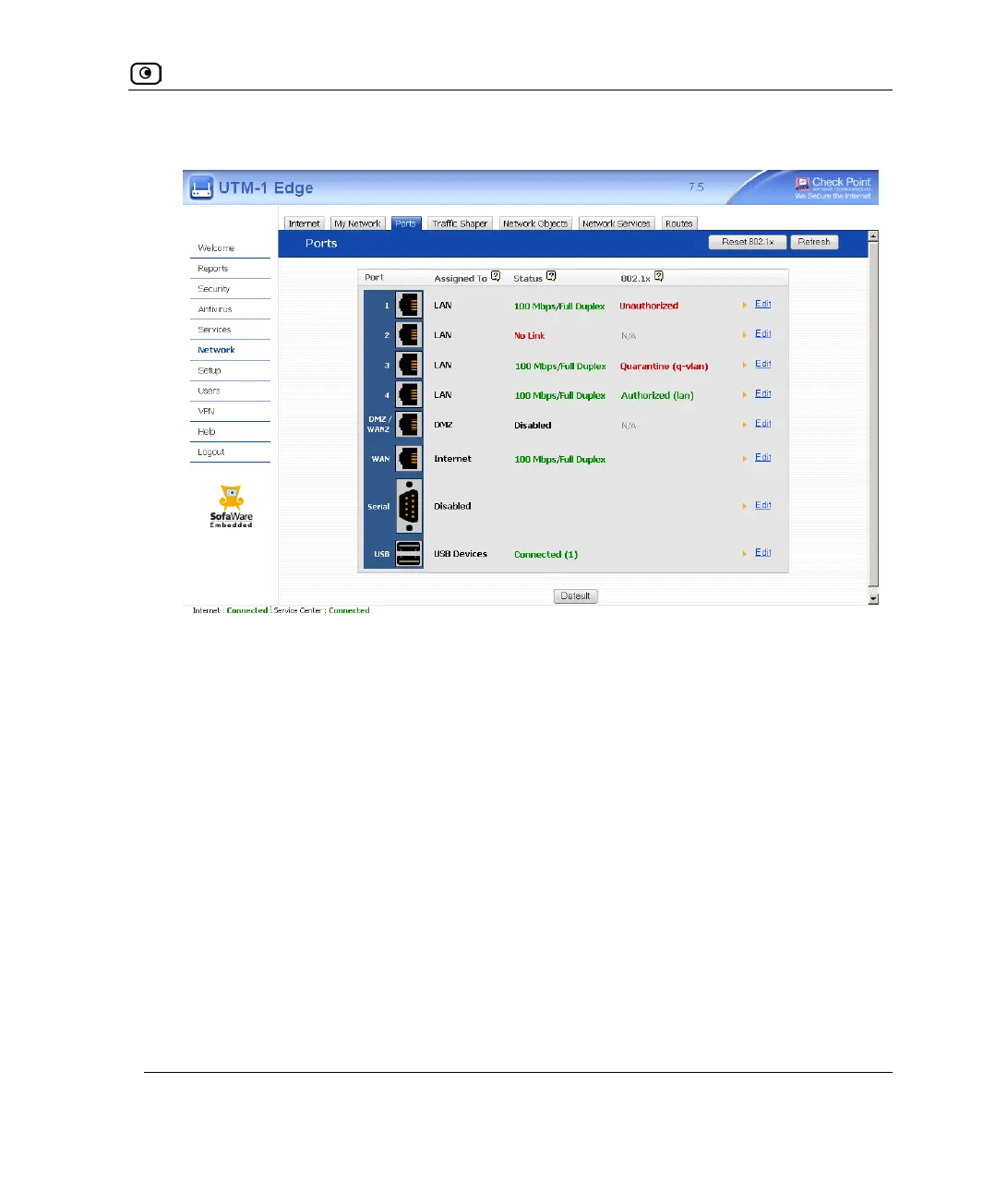

The Ports page appears.

3. Next to the DMZ/WAN2 port, click Edit.
