Adding and Editing VPN Sites

492 Check Point UTM-1 Edge User Guide

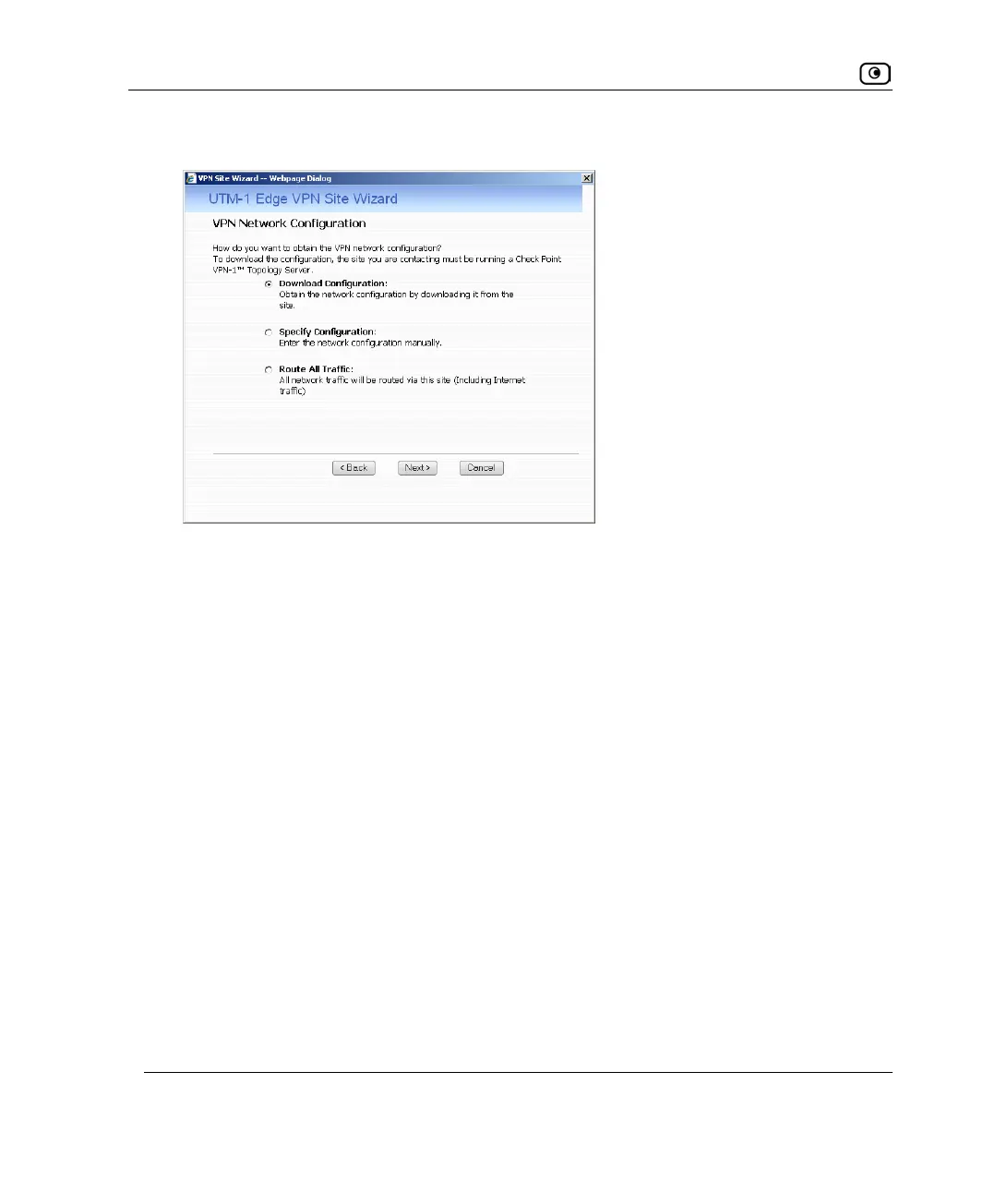

The VPN Network Configuration dialog box appears.

4. Specify how you want to obtain the VPN network configuration. Refer to VPN

Network Configuration Fields on page

501.

5. Click Next.
