Chapter 47 Configuring Cisco Intercompany Media Engine Proxy
Configuring Cisco Intercompany Media Engine Proxy
What to Do Next
Create the access lists for the Cisco Intercompany Media Engine Proxy. See Creating Access Lists for
Cisco Intercompany Media Engine Proxy, page 47-16.
Configuring PAT for the Cisco UCM Server
Perform this task as an alternative to configuring NAT for the Cisco Intercompany Media Engine Proxy.

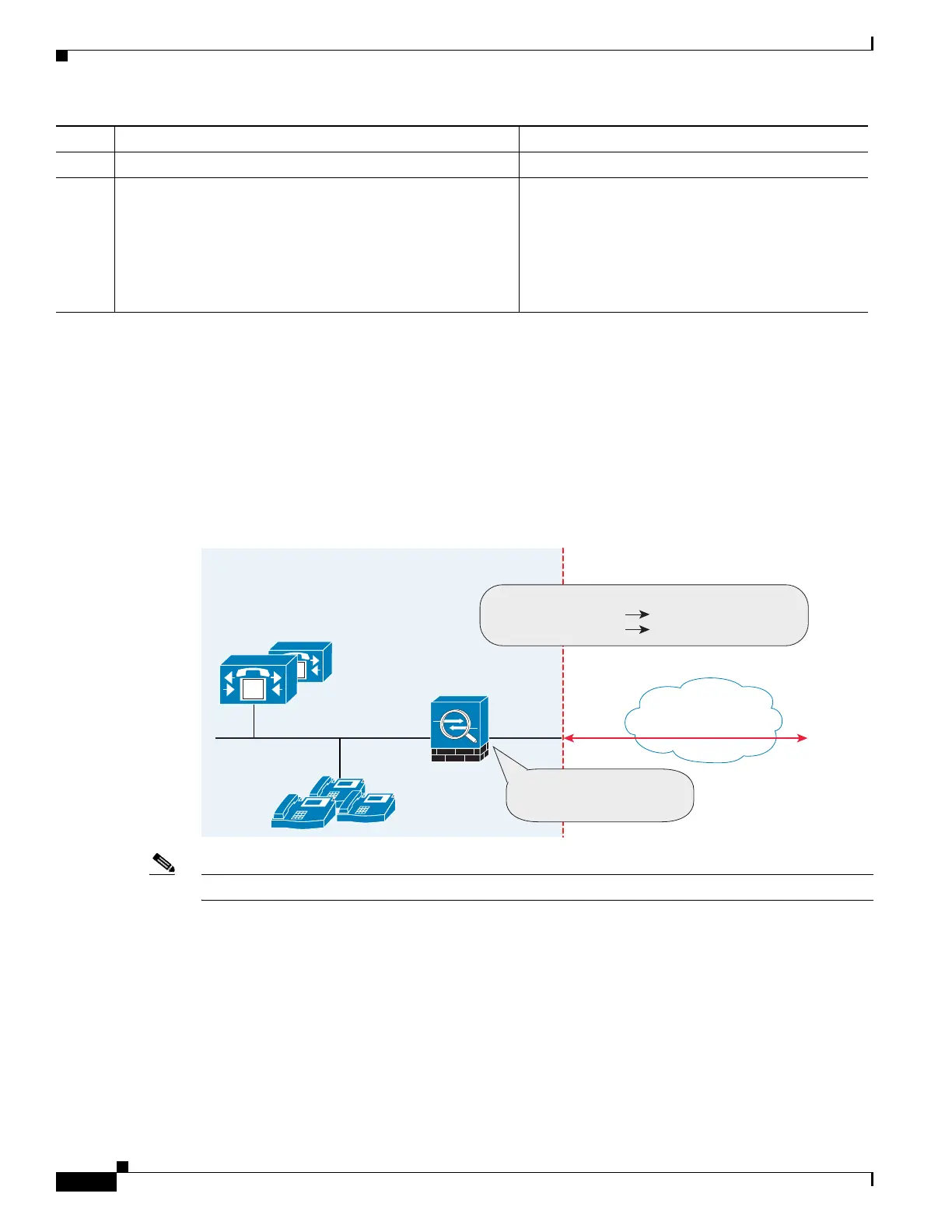

Figure 47-8 Example for Configuring PAT for a Deployment
Note You only perform this step when NAT is not configured for the Cisco UCM server.
To configure PAT for the Cisco UCM server, perform the following steps:
Step 8
hostname(config-network-object)# exit
Exits from the objects configuration mode.
Step 9
hostname(config)# nat (inside,outside) source static
real_obj mapped_obj
Examples:
hostname(config)# nat (inside,outside) source static
ucm_real_192.168.10.30 ucm_209.165.200.228
hostname(config)# nat (inside,outside) source static
ucm_real_192.168.10.31 ucm_209.165.200.228
Specifies the address translation on the network
objects created in this procedure.
Where real_obj is the name that you created in
Step 1 in this task.
Where mapped_obj is the name that you created in
Step 5 in this task.
Command Purpose
Local Cisco UCMs
Local ASA
Corporate
Network
Local Enterprise
M
IP
IP
IP
192.168.10.30
199.168.10.31
TLS
TCP
M
248765
Internet
Configure PAT:
192.168.10.30:5070
192.168.10.31:5071
209.165.200.228:5570
209.165.200.228:5571
Outside Cisco UCM address
209.165.200.228
