Chapter 5 Configuring the Transparent or Routed Firewall
Configuring the Firewall Mode
Using the Transparent Firewall in Your Network

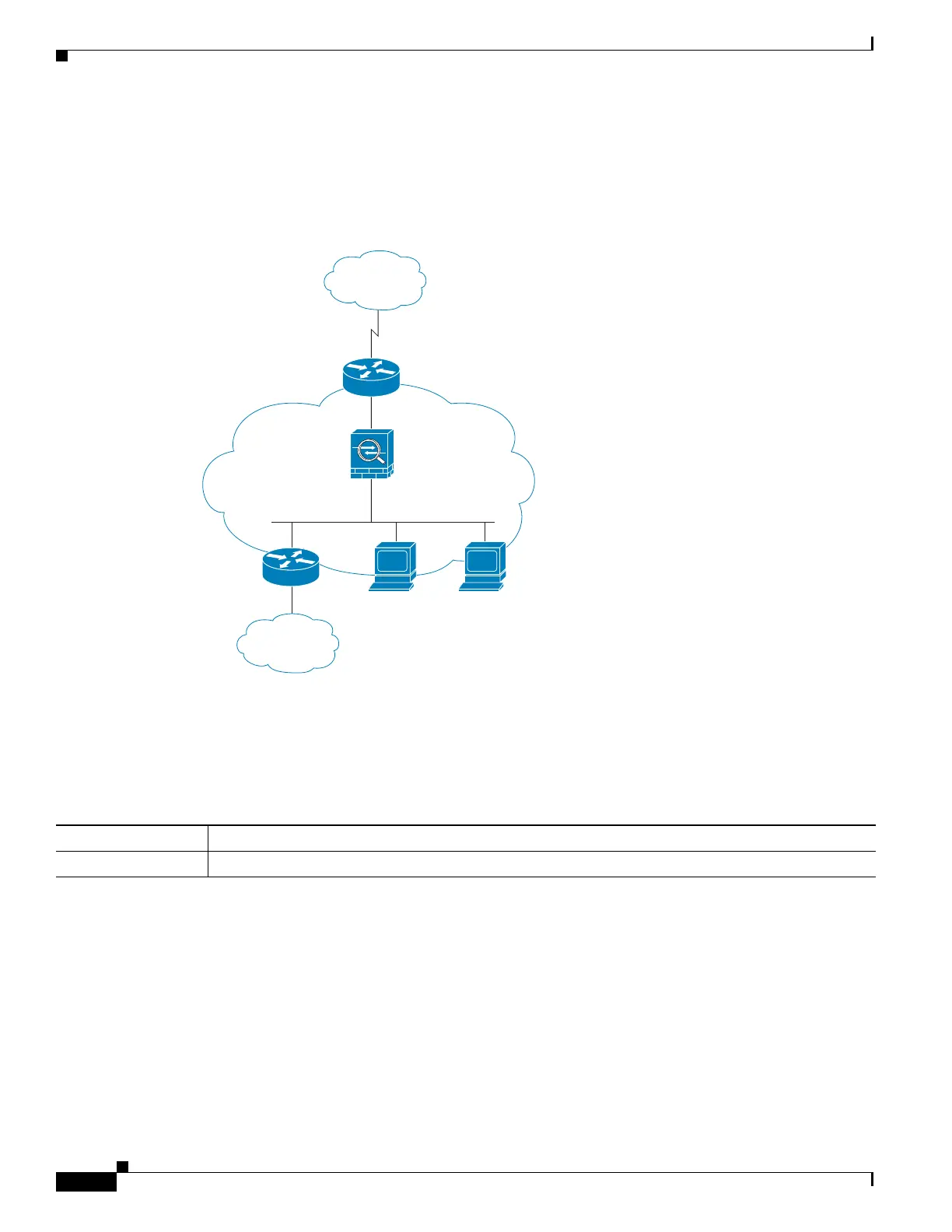

Figure 5-1 shows a typical transparent firewall network where the outside devices are on the same subnet
as the inside devices. The inside router and hosts appear to be directly connected to the outside router.
Figure 5-1 Transparent Firewall Network
Licensing Requirements for the Firewall Mode
The following table shows the licensing requirements for this feature.
Default Settings
The default mode is routed mode.
10.1.1.1
10.1.1.2
Management IP
10.1.1.3
192.168.1.2
Network A
Network B
Internet
92411
Model License Requirement
All models Base License.
