3-16
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 3 Using the ASDM User Interface
Home Pane (Single Mode and Context)
Home Pane (Single Mode and Context)
The ASDM Home pane lets you view important information about your adaptive security appliance.
Status information in the home pane is updated every ten seconds. This pane usually has two tabs: Device
Dashboard and Firewall Dashboard.
If you have a CSC SSM installed in your adaptive security appliance, the Content Security tab also
appears in the Home pane. The additional tab displays status information about the CSC SSM software.
If you have IPS software installed in your adaptive security appliance, the Intrusion Prevention tab also
appears in the Home pane. The additional tab displays status information about the IPS software.
This section includes the following topics:
• Device Dashboard Tab, page 3-16
• Firewall Dashboard Tab, page 3-19
• Content Security Tab, page 3-21
• Intrusion Prevention Tab, page 3-22
Device Dashboard Tab
The Device Dashboard tab lets you view, at a glance, important information about your adaptive security
appliance, such as the status of your interfaces, the version you are running, licensing information, and
performance.

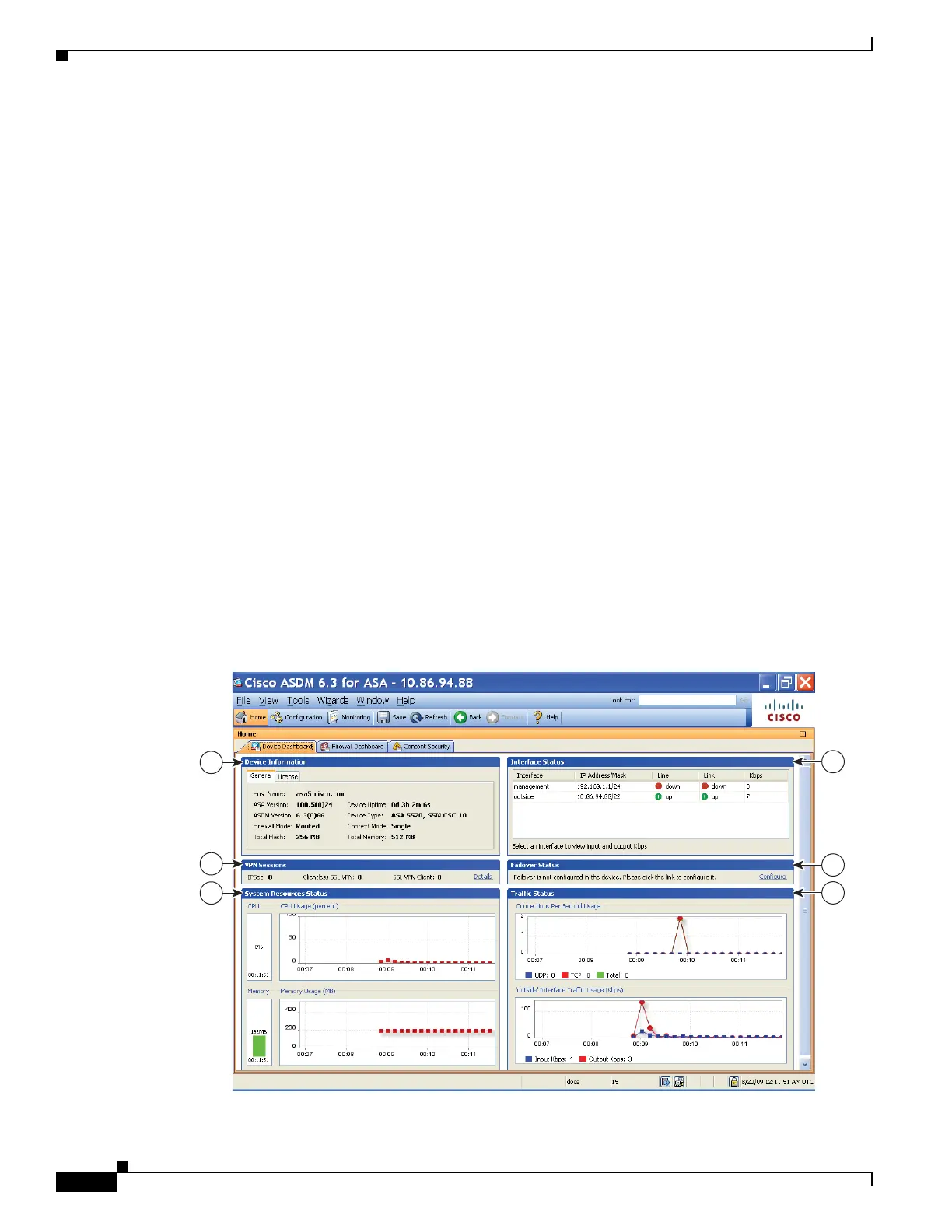

Figure 3-2 shows the elements of the Device Dashboard tab.
Figure 3-2 Device Dashboard Tab
1
2
3
4
5
252949
6
