The ASDM System Home pane lets you view important status information about your adaptive security
appliance. Many of the details available in the ASDM System Home pane are available elsewhere in
ASDM, but this pane shows at-a-glance how your adaptive security appliance is running. Status
information in the System Home pane is updated every ten seconds.
Figure 3-7 on page 3-24 shows the elements of the System Home pane.

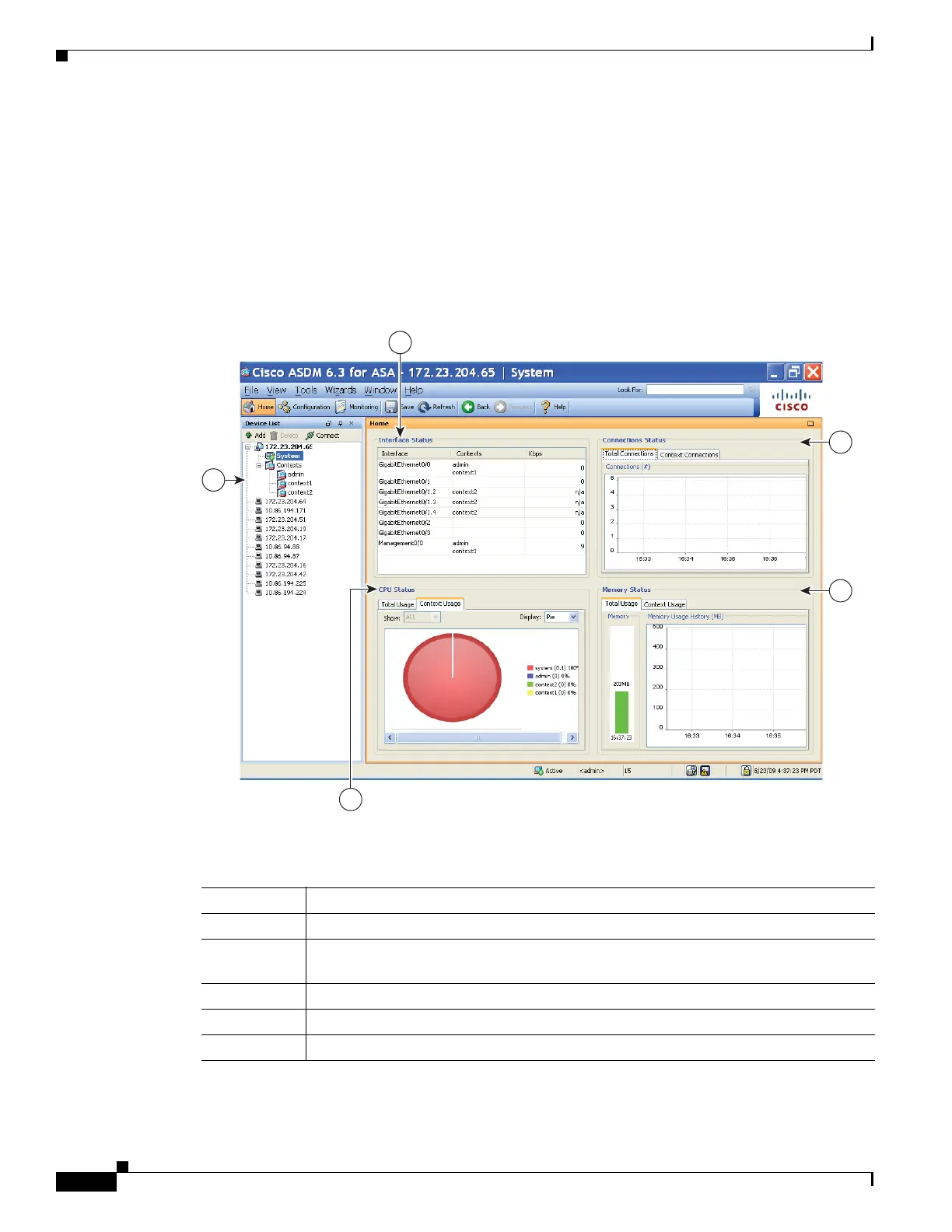

Figure 3-7 System Home Pane
Legend
GUI Element Description
1 System vs. Context selection.
2 Interface Status pane. Choose an interface to view the total amount of traffic through
the interface.
3 Connection Status pane.
4 CPU Status pane.
5 Memory Status pane.
