27-6
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 27 Configuring Network Object NAT
Configuring Network Object NAT
b. Define the NAT pool addresses, and click OK.

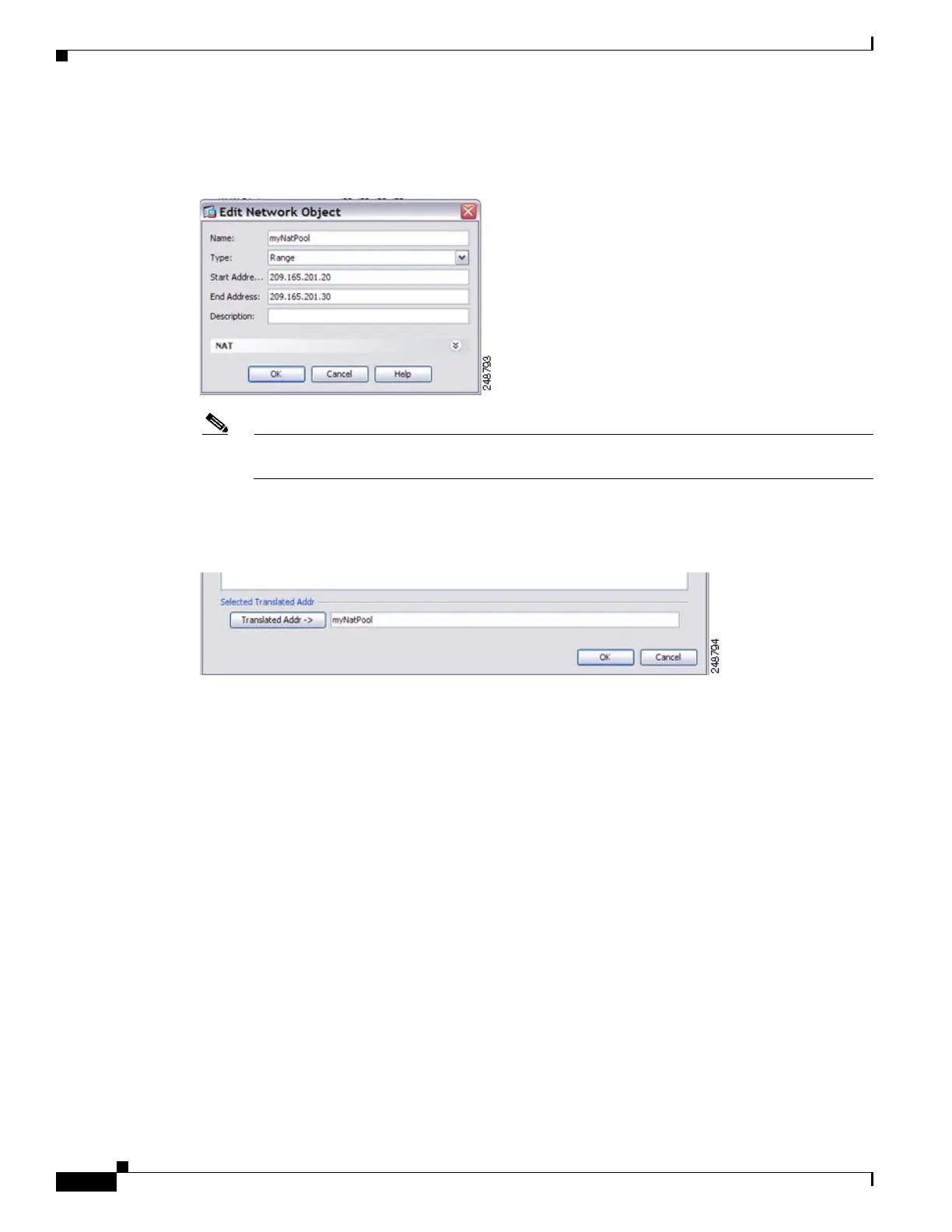

Figure 27-6 Defining the NAT Pool Addresses
Note Although not disallowed, you will typically not configure NAT for this network object that you
are using for the mapped addresses; you can leave the NAT section unconfigured.
c. Choose the new network object by double-clicking it. Click OK to return to the NAT configuration.
Figure 27-7 Choosing the New Network Object
Step 7 (Optional) To use the interface IP address as a backup method when the other mapped addresses are
already allocated, check the Fall through to interface PAT (dest intf) check box, and choose the
interface from the drop-down list.
Step 8 (Optional) Click Advanced, and configure the following options in the Advanced NAT Settings dialog
box. When you are finished, click OK.
