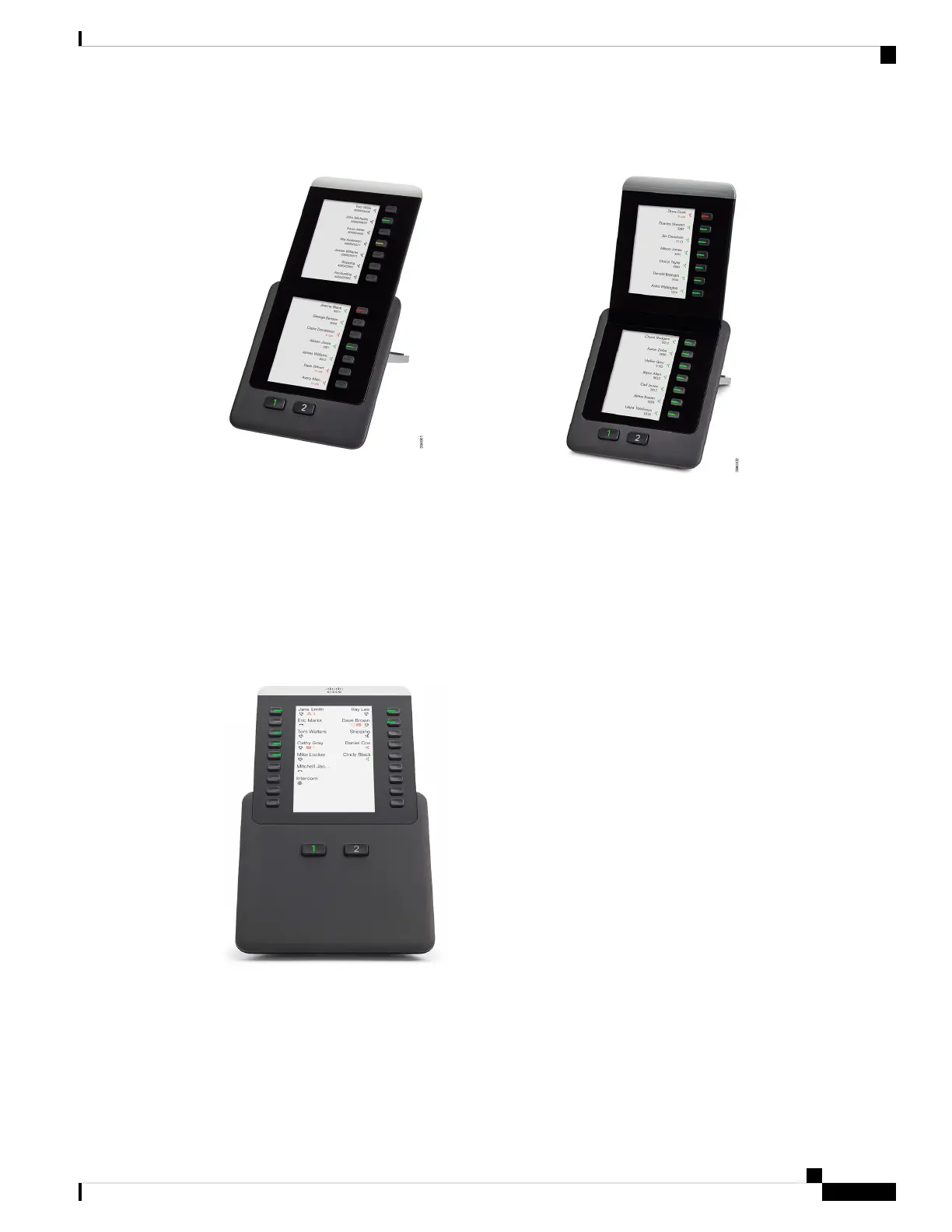

Figure 16: Cisco IP Phone 8865 Key Expansion ModuleFigure 15: Cisco IP Phone 8851/8861 Key Expansion Module
Two--Column Mode
If you are using Cisco IP Phone 8800 Key Expansion Module single-LCD screen expansion module, you can
set up the module in two-column mode.
In two-column mode, each button on the left and right of the screen is assigned to a speed-dial number (or
name or other text label), phone service, or phone feature. In this configuration, the key expansion module
displays up to 18 items on page 1, and up to 18 items on page 2
Figure 17: Cisco IP Phone 8800 Key Expansion Module
Allocate a Key Expansion Module Type with the Phone Menu
You can assign the type of key expansion module that the phone supports.
Cisco IP Phone 8800 Series Multiplatform Phones User Guide
191
Accessories
Allocate a Key Expansion Module Type with the Phone Menu
