Chapter 9 Configuring STP
Understanding Advanced STP Features
switchover takes approximately 30 seconds, twice the Forward Delay time if the default Forward Delay
time of 15 seconds is set. Figure 9-11 shows how BackboneFast reconfigures the topology to account for
the failure of link L1.

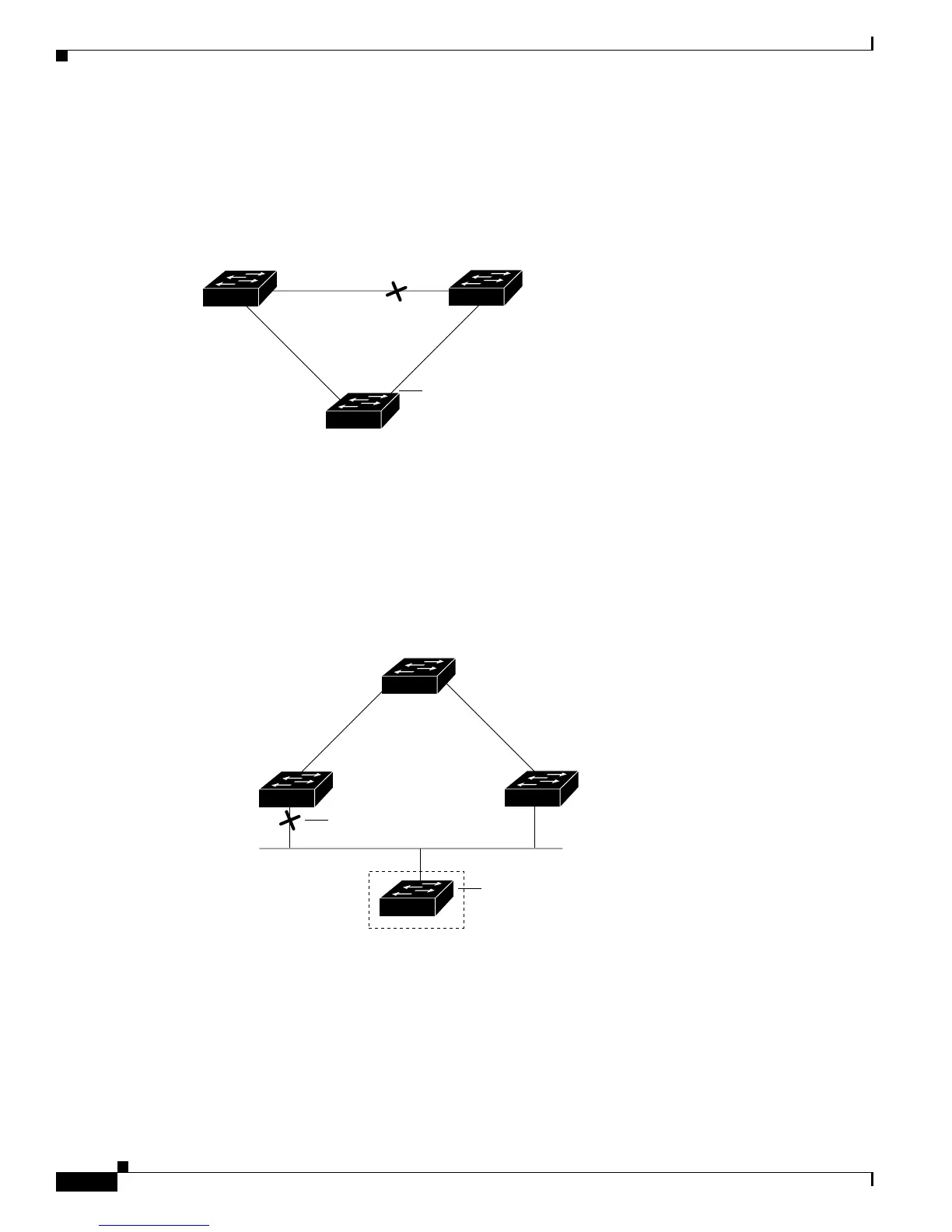

Figure 9-11 BackboneFast Example After Indirect Link Failure
If a new switch is introduced into a shared-medium topology as shown in Figure 9-12, BackboneFast is
not activated because the inferior BPDUs did not come from the recognized designated bridge
(Switch B). The new switch begins sending inferior BPDUs that say it is the root switch. However, the
other switches ignore these inferior BPDUs, and the new switch learns that Switch B is the designated
bridge to Switch A, the root switch.
Figure 9-12 Adding a Switch in a Shared-Medium Topology
L1
L2 L3
Switch C
Switch A
(Root)
Switch B
Link failure
44964
BackboneFast transitions port
through listening and learning
states to forwarding state.
Switch A
(Root)
Switch C
Switch B
(Designated bridge)
Added switch
44965
Blocked port

Cisco Catalyst 2950 Specifications

General

Forwarding Bandwidth	8.8 Gbps
Switching Capacity	13.6 Gbps
Forwarding Rate	6.6 Mpps
Weight	3.6 kg
RAM	16 MB
Flash Memory	8 MB
Operating Humidity	10% to 85% non-condensing
Uplink Ports	2 x 10/100/1000Base-T
Dimensions	4.4 cm x 44.5 cm x 24.2 cm
Remote Management Protocol	SNMP, Telnet, HTTP
Features	Quality of Service (QoS), VLAN support
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p
Status Indicators	system
Operating Temperature	0 to 45°C
Ports	24 x 10/100 Ethernet ports
MAC Address Table Size	8, 192 entries
Power Supply	Internal 100-240V AC, 50-60Hz
